Belt strap, ideal for the arm or waist (accessories S, M, L)
Belt/pocket clip (accessory S, M, L)
Plain surface for interfaces

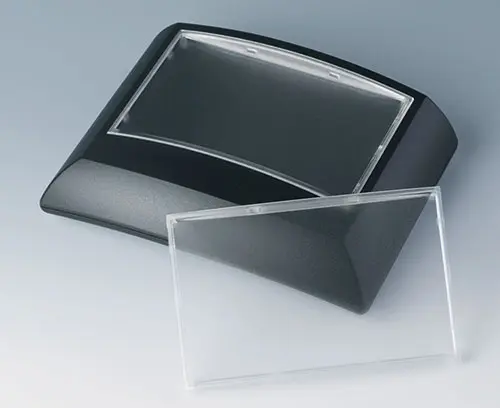

Size L with translucent display trim
Battery compartment 4xAA or 9V; support for 2xAAA

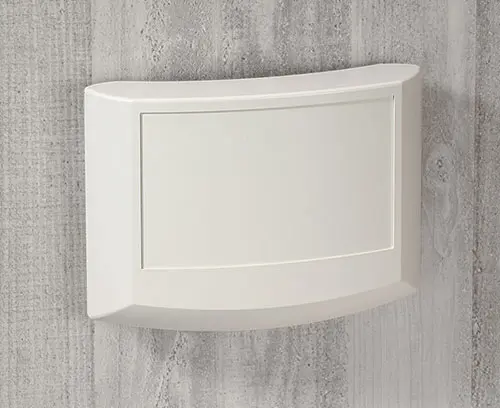

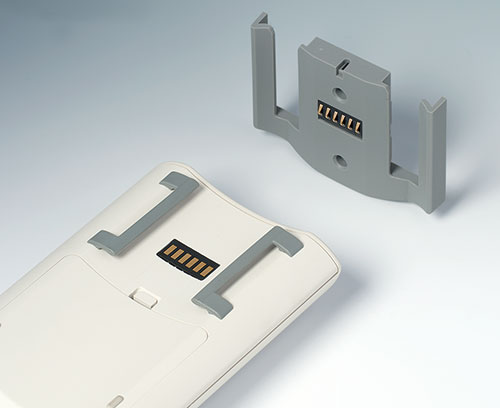

Contacts for enclosure and wall suspension element (acc.)

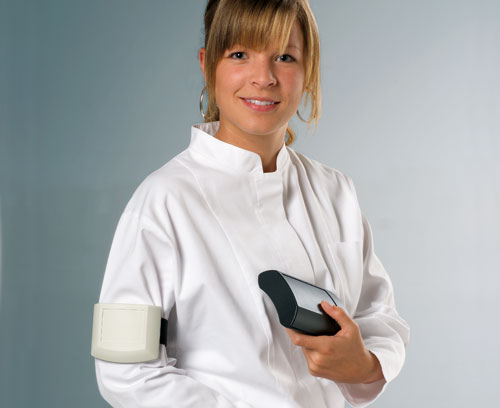

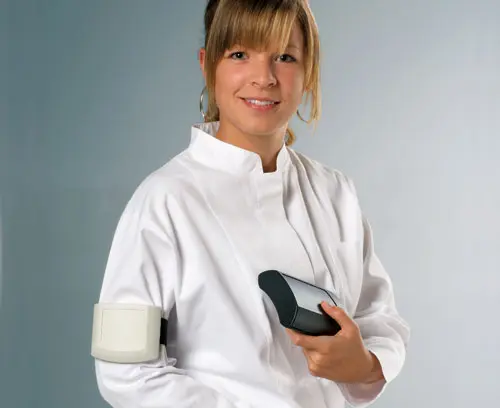

Body contoured, comfortable wearing

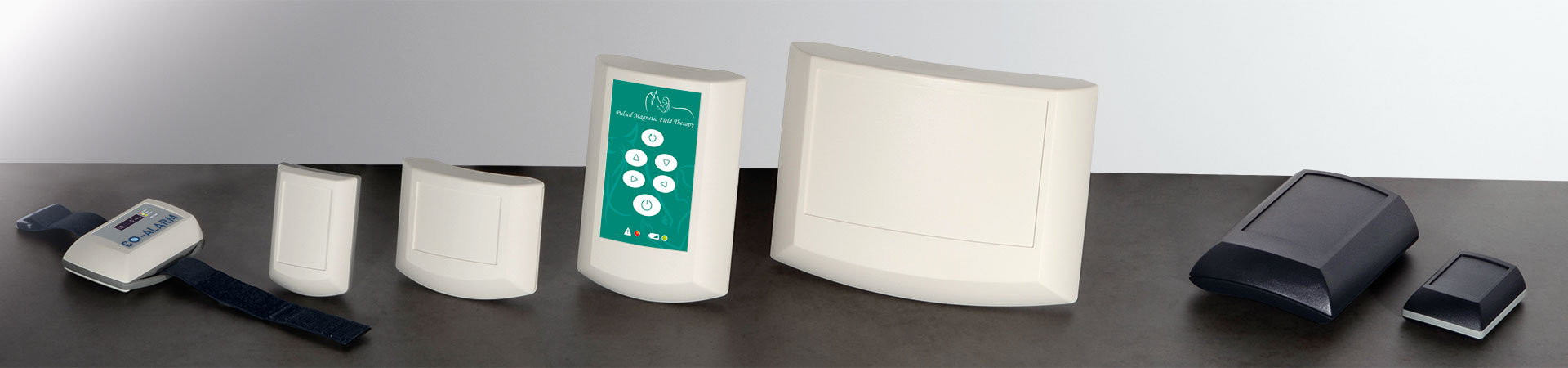

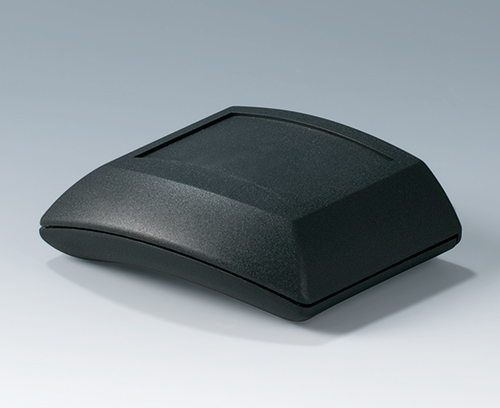

Body Contoured Electronic Enclosures
The unique convex design of these enclosures makes it possible for the user to wear the unit comfortably – whether on their arm, chest or waist.
unique design for comfortable wearing, holding and operating
integrated carrying accessories include: wrist strap, belt strap, strap eyelet, belt/pocket clip etc.

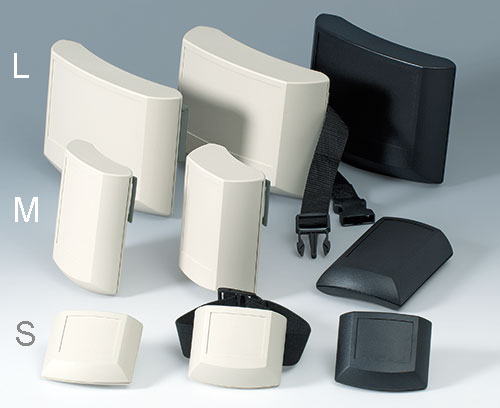

four sizes in two colors
with/without battery compartment: battery compartments in sizes M and L for 4 x AA, 1 x 9 V, 2 x 9 V cells with snap-in battery lid, if required, this can be secured by a screw; size S with integrated supports for 2 x AAA cells

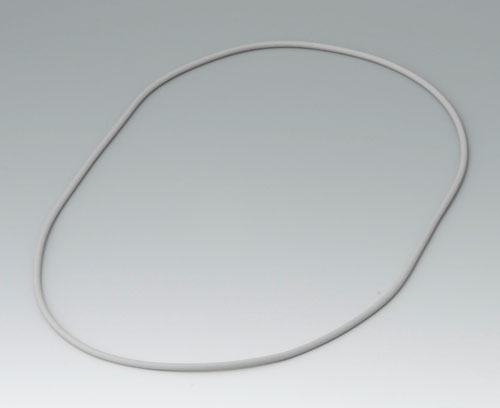

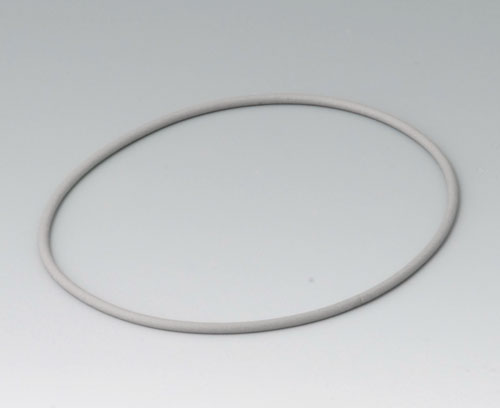

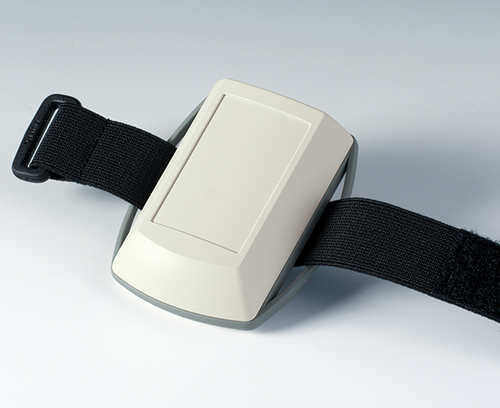

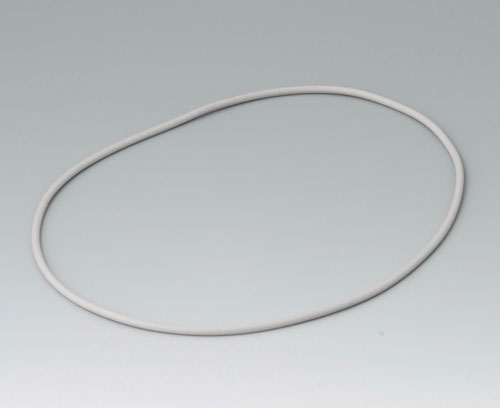

size XS with soft TPE ring with/without eyelet for carrying accessories
with flat or high top part for individual installation configurations
size L also with clip-in display panel in translucent PC or solid ABS

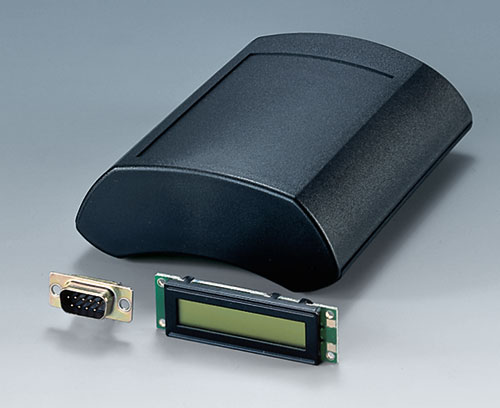

flat end panel for mounting connectors, switches, LCDs etc.
top recess for mounting membrane keypads

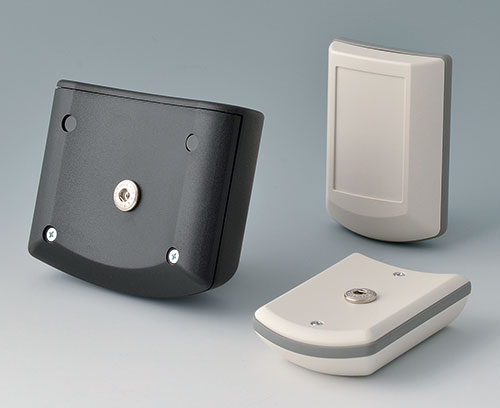

wall mounting with removal prevention; easy transmission of data and charging current; contacts as accessories (S, M, L)

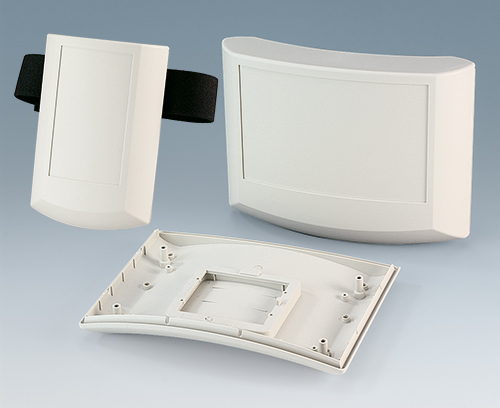

internal screw pillars for mounting PCBs

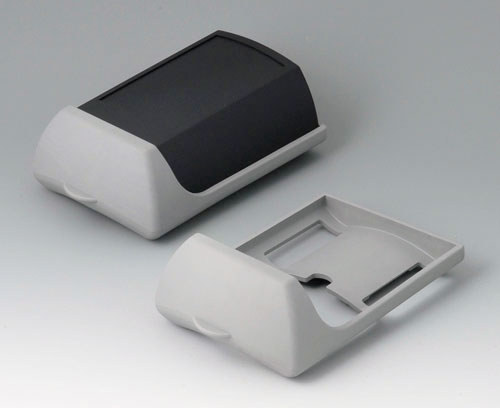

protectors absorb impacts and protect surfaces (acc. size M high)

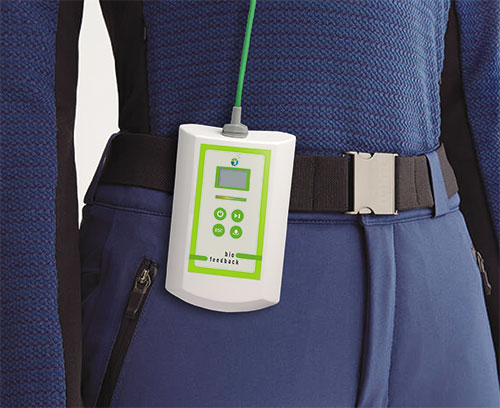

Mobile data recording and transmission in the fields of medical, laboratory and measuring technology, storage and sales logistics, digital open and closed-loop control technology. Also, health and wellness equipment.
ERGO-CASE S with belt/pocket clip (accessory S, M, L)

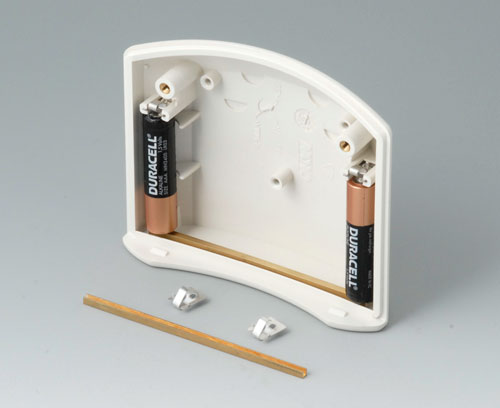

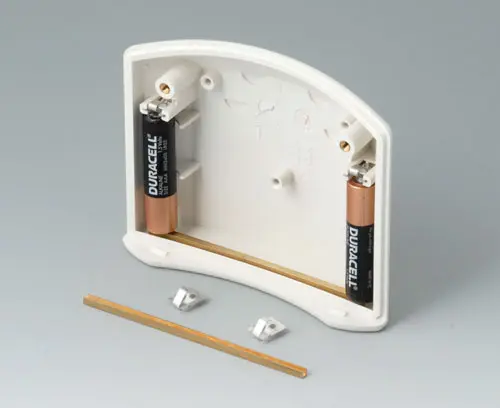

size S with integrated supports for 2 x AAA

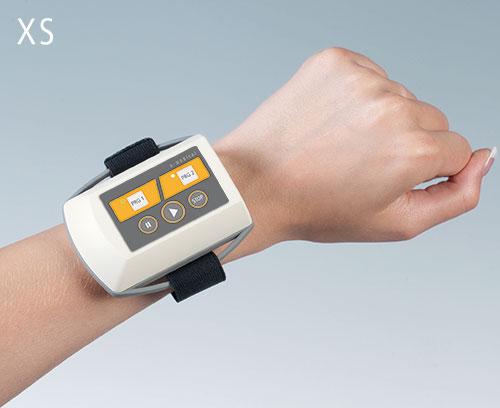

ERGO-CASE XS with wrist strap (accessory)

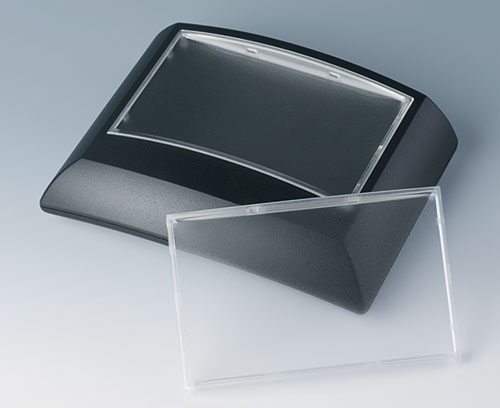

size L with translucent display trim

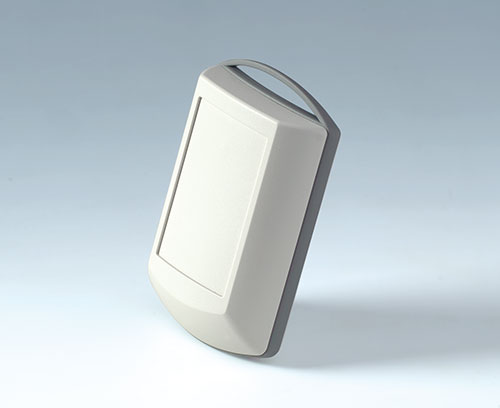

ERGO-CASE XS with eyelet
ERGO-CASE M with elastic belt with clamp lock (accessories all sizes)
ERGO-CASE S with elastic belt with clamp lock

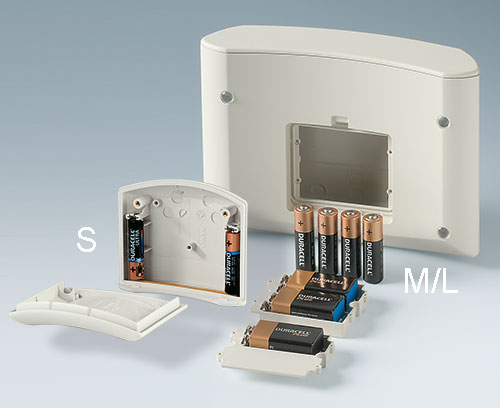

battery compartments (size M/L): 4 x AA, 1 x 9 V or 2 x 9 V
contacts for enclosure and wall suspension element (acc.)

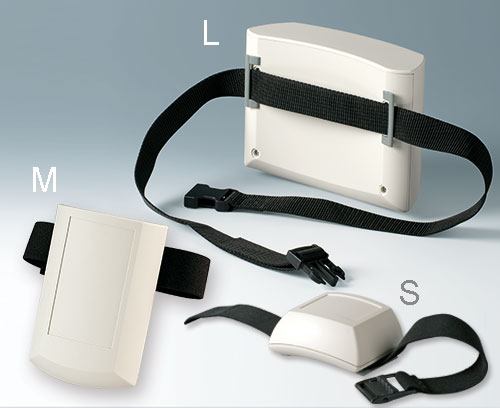

belt strap with push-in buckle (accessories S, M, L)

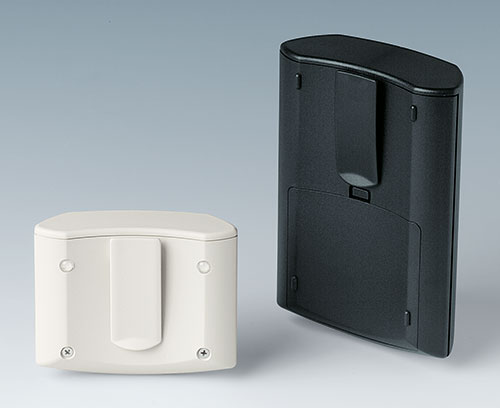

belt/pocket clip (accessory S, M, L)
size L with display trim
plain surface for interfaces
