RFI/EMI shielding
RFI/EMI shielding: Aluminum coating

RFI/EMI shielding

Safe and reliable thanks to application-oriented shielding

When it is a question of RFI/EMI shielding and the protection of your electronics from external interference as well as increased internal emission noise, OKW Gehäusesysteme is your competent partner.

RFI-EMI Shielding - Aluminum coating

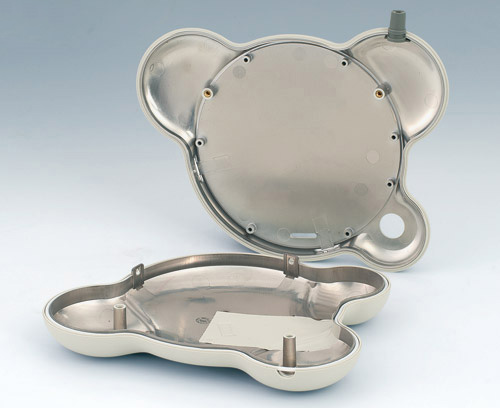

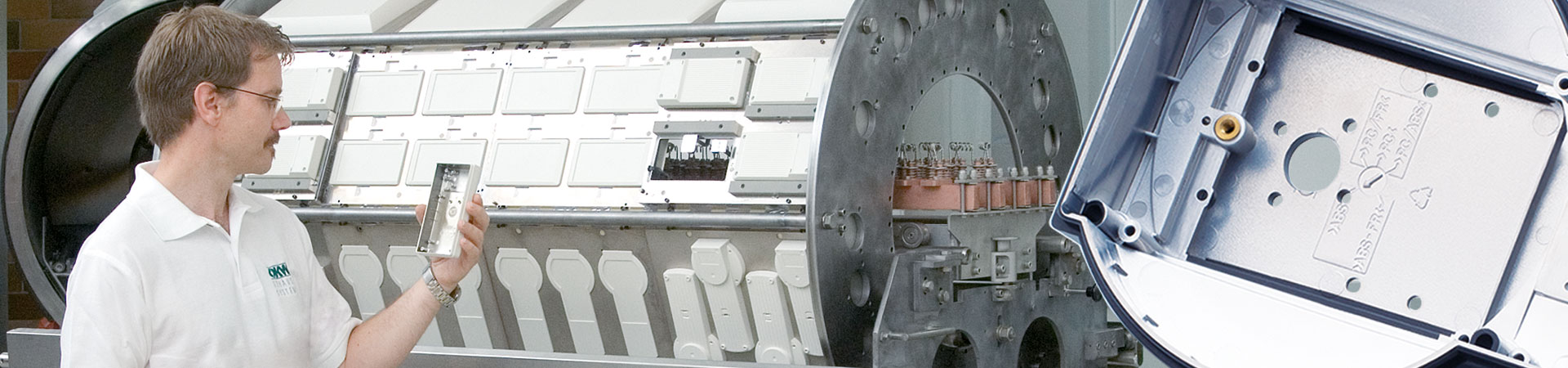

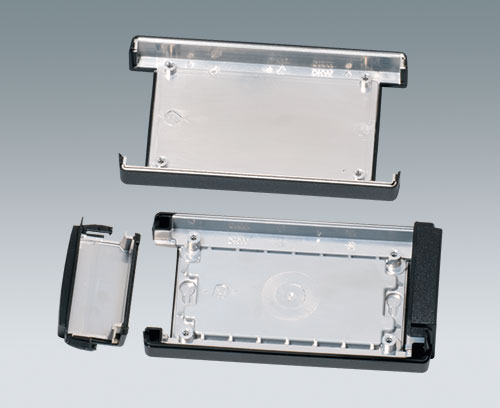

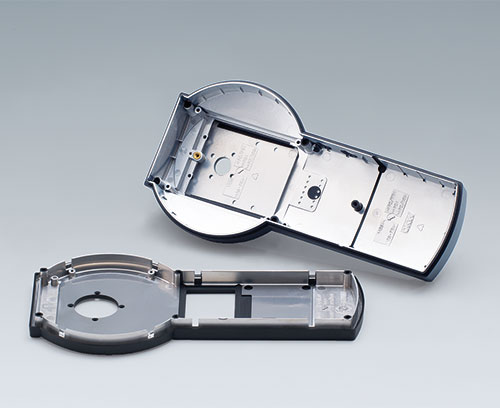

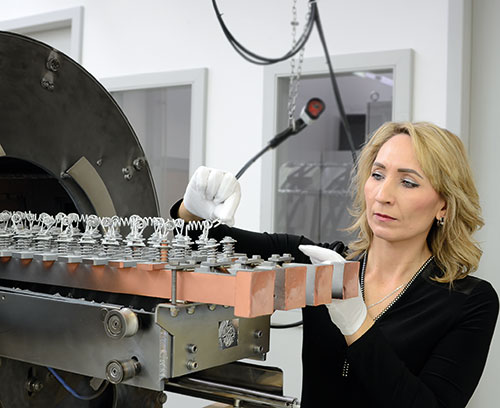

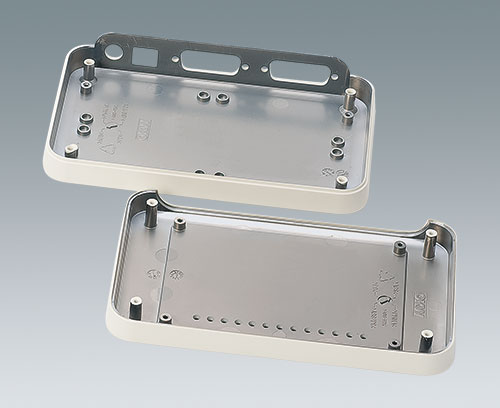

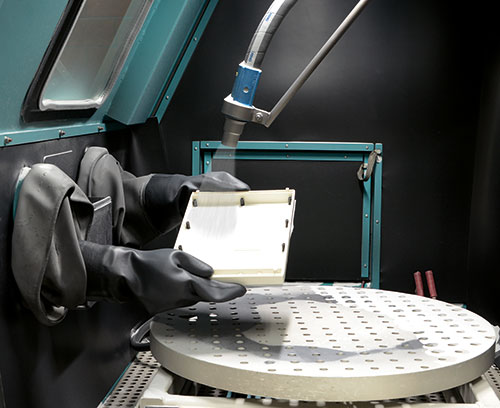

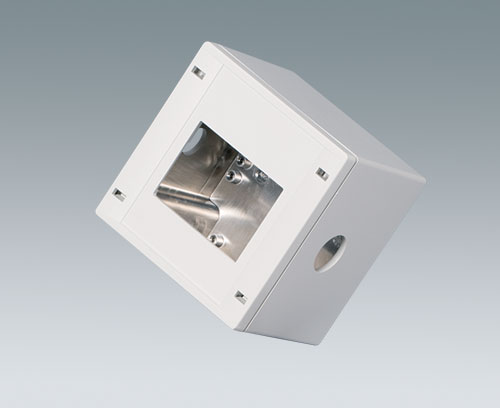

Thanks to the investment in our own vapor-plating facility, we can offer you "Everything from one supplier". To shield plastic parts, which offer no natural protection against electromagnetic radiation, we coat the inside of the enclosure with aluminum. Our extensive in-house facility guarantees short production and delivery times.

Aluminum coating

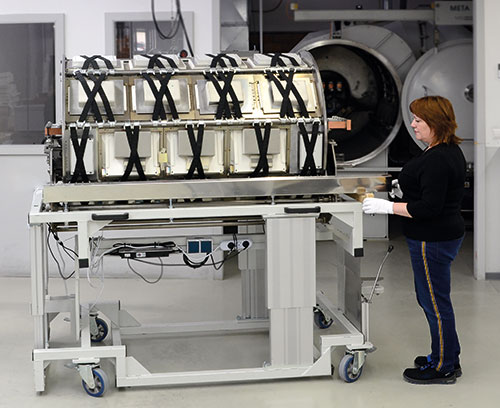

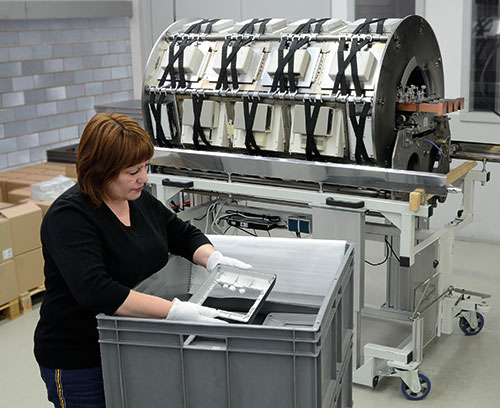

The aluminum coating is applied in a high vacuum. The 99.99 % pure aluminum is vaporised within a short period of time and is deposited on the plastic surface. The thickness of the coating is approx. 2.5 µm. The aluminum coating is also characterised by good adhesion. To achieve an even better shielding effect, other coating thicknesses are available on request.

Certification in accordance with UL 746C / ALVACOAT®*

We have certification in accordance with UL 746C for the following materials in the standard OKW colors:
  • Cycolac S157
  • Rotec ABS 1001 FR/E
  • Rotec ABS 3001
  • Terluran GP-22
  • Novodur P2H-AT
  • Lexan 141R(f2)
  • Durethan BKV15H2.0+
  • Luran KR2867 CWU
  • Romiloy ASA/PC 8170
For current information, please refer to online certifications directory under UL File Number E257055.
To download a certificate, see menu Information > Download.

*ALVACOAT® is a registered trademark of OKW Gehäusesysteme GmbH and identifies the process used by OKW to coat plastic parts made of standard materials that are certified in accordance with UL 746C.

RFI/EMI and plastic enclosures

The non-conducting material used for plastic enclosures, for example ABS, PC and PA, has advantages in voltage and contact protection compared with metal materials. It behaves like an insulator.

For devices that causes electromagnetic interference or whose operation is impaired by such interference, plastic enclosures without special measures offer only moderate protection.

To meet current EC directives and standards, a variety of measures is required. For reasons of cost-effectiveness we recommend the following procedure:
  • The complete electric/electronic equipment, including board layout, should be designed in such a way that RFI/EMI requirements are met. This also includes a reduction in conducted interference and the elimination of cable interference radiation.
  • Partial screening of the sensitive components or interference radiators.
  • Reduction of interfering radiation entering through openings.
  • Increase in the screening effect of the case.

Additional RFI/EMI measurements

As almost every case is provided with openings and cable connections which reduce the shielding effect, it is important to observe the following recommendations:
  • Cable glands
    In order to maintain the protection class of the enclosure and to reduce cable radiation, suitable cable glands are necessary.
  • Improvement of contact

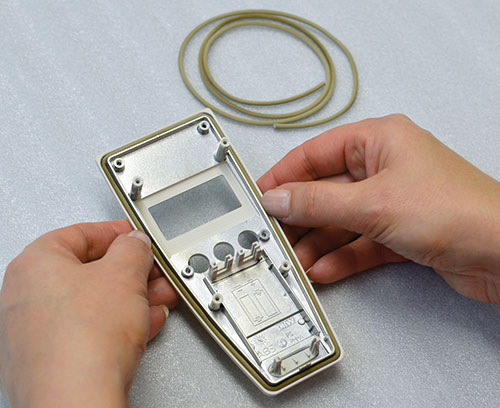

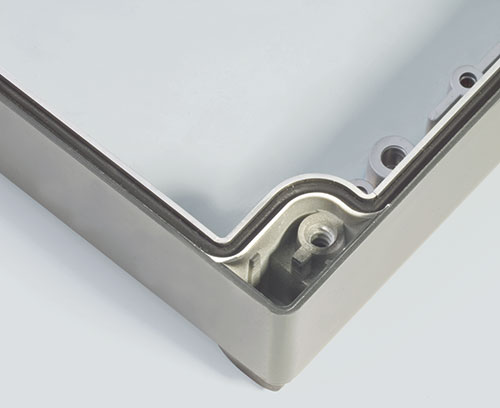

    As contact for our coated plastic enclosures (depending on the type) we offer conductive seals with silver-plated copper particles.
Please keep in mind that the use of external accessories may influence the protection class, for example, and can cause corrosion. For this reason, we recommend consulting the supplier prior to using these external accessories.

Coating of other plastic materials on request.

  • Photo Gallery
  • Video

RFI/EMI shielding products

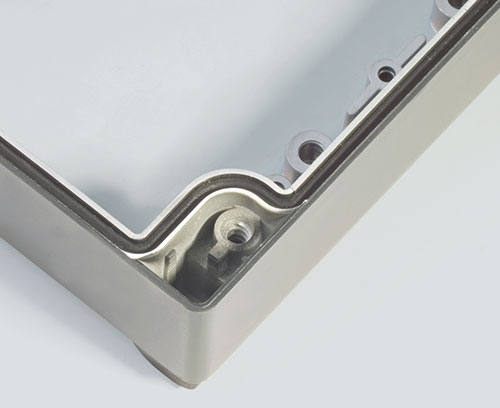

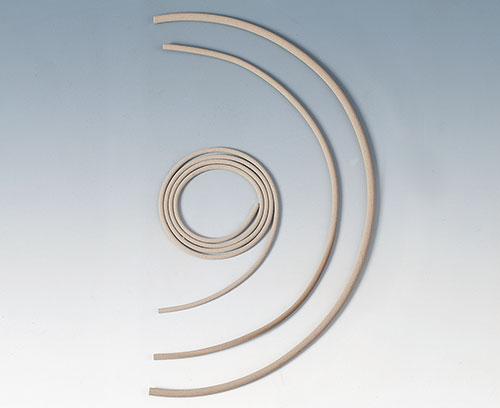

In addition to the aluminum coating of enclosures, we can supply conductive seals in individual sizes from ø 0.059" – 0.118".

We will be pleased to advise you.
