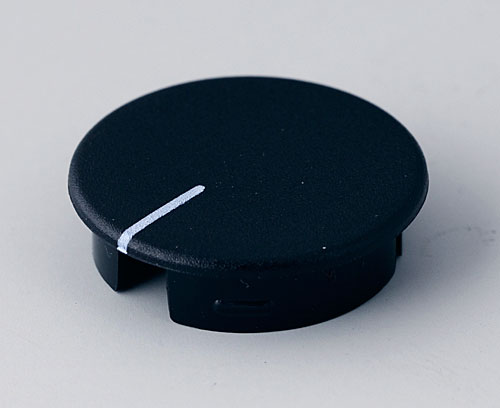

A4120100 Cover 20, with line

A4120100

Cover 20, with line

Suitable for round and wing knob 20. Cover simply to pin up. White marking.

Supply

1 cover

  • Components/Accessories
  • View Customizing Options

System components to complete

A2520040 ROUND KNOB 20, without line

A2520040

ROUND KNOB 20, without line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Continuous center hole.
Max. torque: assembly = 0.8 Nm, function = 0.7 Nm.

Supply 1 round knob

Close

A2520040

ROUND KNOB 20, without line
product added to your basket
ABS (UL 94 HB)
black RAL 9005
20x15mm
Bore hole 4mm
A2520060 ROUND KNOB 20, without line

A2520060

ROUND KNOB 20, without line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Center hole with chamfer.
Max. torque: assembly = 1,0 Nm, function = 0.9 Nm.

Supply 1 round knob

Close

A2520060

ROUND KNOB 20, without line
product added to your basket
ABS (UL 94 HB)
black RAL 9005
20x15mm
Bore hole 6mm
A2520068 ROUND KNOB 20, without line

A2520068

ROUND KNOB 20, without line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Center hole with chamfer.
Max. torque: assembly = 1,0 Nm, function = 0.9 Nm.

Supply 1 round knob

Close

A2520068

ROUND KNOB 20, without line
product added to your basket
ABS (UL 94 HB)
dusty gray RAL 7037
20x15mm
Bore hole 6mm
A2520630 ROUND KNOB 20, without line

A2520630

ROUND KNOB 20, without line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Center hole with chamfer.
Max. torque: assembly = 1,0 Nm, function = 0.9 Nm.

Supply 1 round knob

Close

A2520630

ROUND KNOB 20, without line
product added to your basket
ABS (UL 94 HB)
black RAL 9005
20x15mm
Bore hole 1/4″
A2620040 ROUND KNOB 20, with line

A2620040

ROUND KNOB 20, with line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Continuous center hole. White marking.
Max. torque: assembly = 0.8 Nm, function = 0.7 Nm.

Supply 1 round knob

Close

A2620040

ROUND KNOB 20, with line
product added to your basket
ABS (UL 94 HB)
black RAL 9005
20x15mm
Bore hole 4mm
A2620060 ROUND KNOB 20, with line

A2620060

ROUND KNOB 20, with line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Center hole with chamfer. White marking.
Max. torque: assembly = 1,0 Nm, function = 0.9 Nm.

Supply 1 round knob

Close

A2620060

ROUND KNOB 20, with line
product added to your basket
ABS (UL 94 HB)
black RAL 9005
20x15mm
Bore hole 6mm
A2620068 ROUND KNOB 20, with line

A2620068

ROUND KNOB 20, with line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Center hole with chamfer. Black marking.
Max. torque: assembly = 1,0 Nm, function = 0.9 Nm.

Supply 1 round knob

Close

A2620068

ROUND KNOB 20, with line
product added to your basket
ABS (UL 94 HB)
dusty gray RAL 7037
20x15mm
Bore hole 6mm

Customizing options for A4120100

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Color
black RAL 9005
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
0.35 g
Customs tariff number
(OKW product)
84879090
Country of manufacture
Germany
