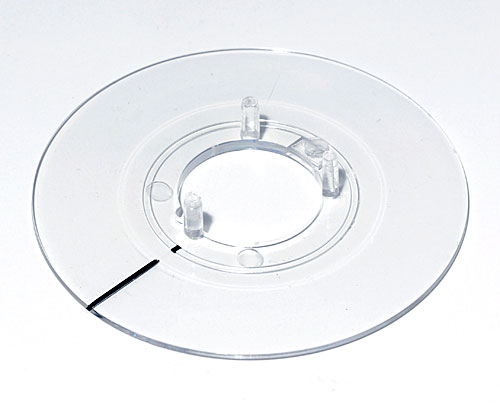

A4431010 Dial 31

A4431010

Dial 31

Dial simply to pin up for round knob 31 / COM-KNOB 31. Surface bright. Black symbol.

Supply

1 dial

  • To be used for
  • View Customizing Options

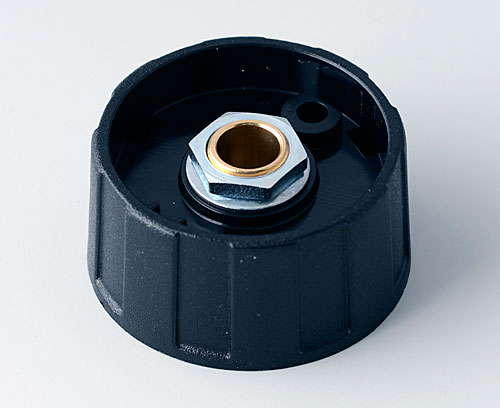

A2531060 ROUND KNOB 31, without line

A2531060

ROUND KNOB 31, without line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Continuous center hole.
Max. torque: assembly = 1,8 Nm, function = 1,6 Nm.

Supply 1 round knob

Close

A2531060

ROUND KNOB 31, without line
product added to your list
ABS (UL 94 HB)
black RAL 9005
31x15mm
Bore hole 6mm

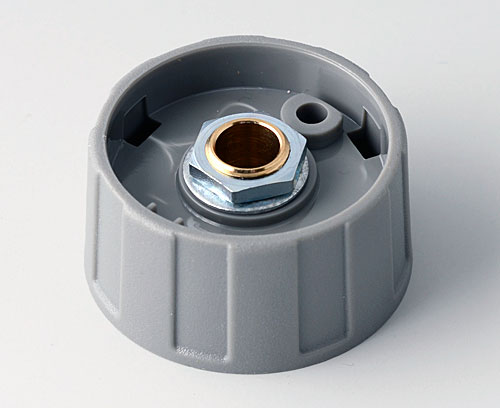

A2531068 ROUND KNOB 31, without line

A2531068

ROUND KNOB 31, without line Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Continuous center hole.
Max. torque: assembly = 1,8 Nm, function = 1,6 Nm.

Supply 1 round knob

Close

A2531068

ROUND KNOB 31, without line
product added to your list
ABS (UL 94 HB)
dusty gray RAL 7037
31x15mm
Bore hole 6mm

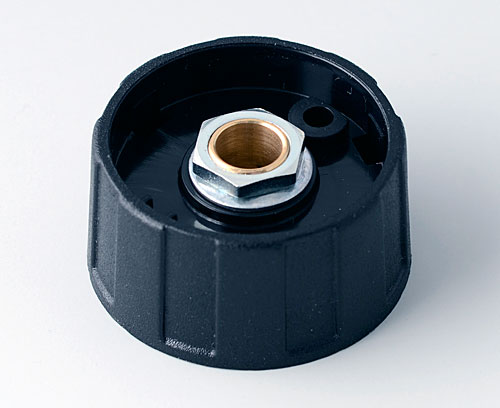

A2531630 ROUND KNOB 31, without line

A2531630

ROUND KNOB 31, without line Suitable for rotary potentiometer with round shaft ends 1/4" according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Continuous center hole.
Max. torque: assembly = 1,8 Nm, function = 1,6 Nm.

Supply 1 round knob

Close

A2531630

ROUND KNOB 31, without line
product added to your list
ABS (UL 94 HB)
black RAL 9005
31x15mm
Bore hole 1/4″
A3131068 COM-KNOBS 31, without recess

A3131068

COM-KNOBS 31, without recess Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole without chamfer.
Max. torque: assembly = 1.8 Nm, function = 1.6 Nm.

Supply 1 COM-KNOB (without recess)

Close

A3131068

COM-KNOBS 31, without recess
product added to your list
PA 6
volcano
31x16mm
Bore hole 6mm
A3131069 COM-KNOBS 31, without recess

A3131069

COM-KNOBS 31, without recess Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole without chamfer.
Max. torque: assembly = 1.8 Nm, function = 1.6 Nm.

Supply 1 COM-KNOB (without recess)

Close

A3131069

COM-KNOBS 31, without recess
product added to your list
PA 6
nero
31x16mm
Bore hole 6mm
A3131638 COM-KNOBS 31, without recess

A3131638

COM-KNOBS 31, without recess Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole = 1/4", without chamfer.
Max. torque: assembly = 1.8 Nm, function = 1.6 Nm.

Supply 1 COM-KNOB (without recess)

Close

A3131638

COM-KNOBS 31, without recess
product added to your list
PA 6
volcano
31x16mm
Bore hole 1/4″
A3131639 COM-KNOBS 31, without recess

A3131639

COM-KNOBS 31, without recess Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole = 1/4", without chamfer.
Max. torque: assembly = 1.8 Nm, function = 1.6 Nm.

Supply 1 COM-KNOB (without recess)

Close

A3131639

COM-KNOBS 31, without recess
product added to your list
PA 6
nero
31x16mm
Bore hole 1/4″

Customizing options for A4431010

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Color
transparent
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
2.3 g
Customs tariff number
(OKW product)
84879090
Country of manufacture
Germany
