Diagnostic camera for illustrating the machine status
Diagnostic camera for illustrating the machine statusDiagnostic camera for illustrating the machine statusDiagnostic camera for illustrating the machine status

Diagnostic camera for illustrating the machine status

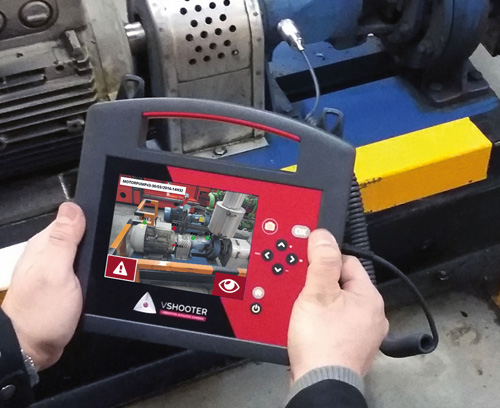

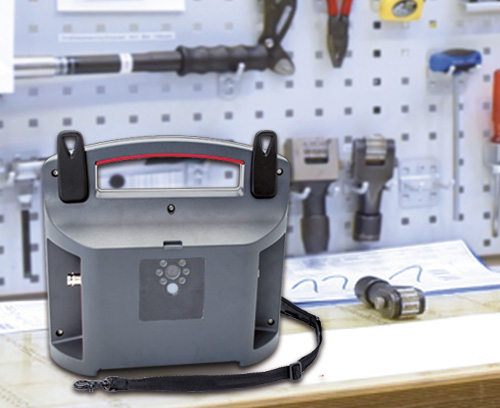

The VSHOOTER® VBS1T is a portable measuring device with an external
acceleration sensor, a built-in camera, a stroboscope and a pyrometer. The vibration
statuses are visualized on a screen using traffic light colours. The result is a MCP
protocol (MCP = Machine Condition Picture) with a detailed diagnosis of the machine
status. The measured values are assigned to 4 groups as per the classification
specified in ISO 10816-3 & 7:

GREEN: no damage, machine is new or as good as new

YELLOW: still no serious damage, measurement to be performed again later

ORANGE: maintenance should be performed as soon as possible

RED: considerable damage, maintenance must be performed immediately

This results in a valuable trend illustration which allows the user to plan maintenance
measures over the long term or only perform them when necessary.

Applications

Synergys Technologies Logo

Synergys Technologies,
Altkirch (France)
www.synergys-technologies.com/en/vibration-analysis-monitoring/vshooter-vbs1t
