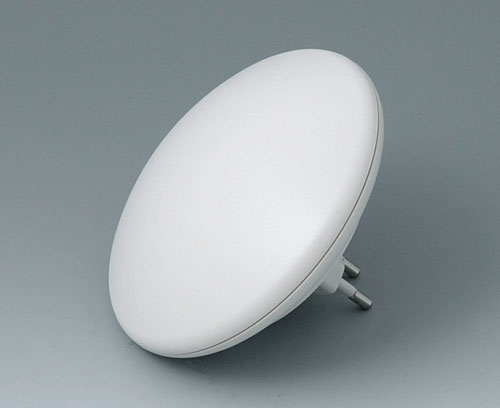

B5011127 ART-CASE R110 H

B5011127

ART-CASE R110 H

Electronic case with EURO plug section according to DIN VDE 0620 part 101. Live parts ABS/PC V-0. High top part.
Not suitable for sockets with integrated, increased protection against contact!

Version

Bottom part "level" with plug section

Supply

1 bottom and top part R110 H, assembly kit

  • Components/Accessories
  • View Customizing Options

Accessory "screws"

B5111201 Set of screws

B5111201

Set of screws Screw kit for mounting PCBs. Diameter 0.098" x 0.197", type PZ1.

Supply 4 screws

Close

B5111201

Set of screws
product added to your list

Customizing options for B5011127

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Protection class
Color
off-white RAL 9002
Standards
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Diameter
⌀ 4.331″
110 mm
Height
1.496″
38 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Miscellaneous information

Weight/1 part
69 g
Customs tariff number
(OKW product)
85489090
Country of manufacture
Germany
