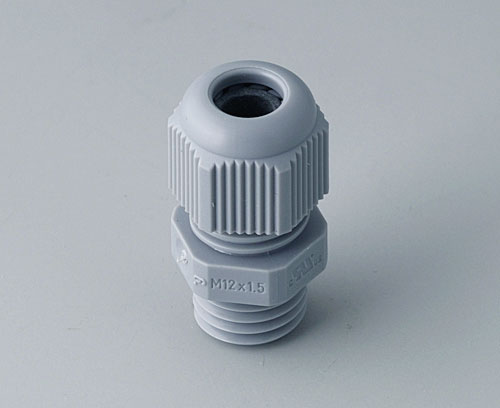

C2312418 Cable gland M12x0.059

C2312418

Cable gland M12x0.059"

Easy to assemble cable gland with metric connection thread. Superior pull relief and sealing by strain relief blades. Counternut as accessory. High protection class IP 68 to 5 bar when using the sealing ring (sep. article). Clamp ranges: diameter 0.118" - 0.256".

Supply

1 cable gland

  • Components/Accessories

Accessory

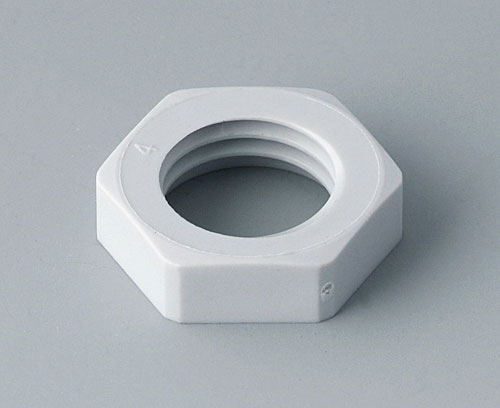

C2312117 Counternut M12x0.059"

C2312117

Counternut M12x0.059" For fixing the cable gland on the housing.

Supply 1 counternut

Close

C2312117

Counternut M12x0.059"
product added to your list
PA
light gray RAL 7035

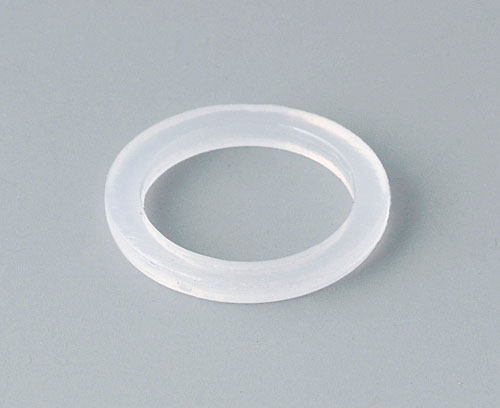

C2312126 Sealing ring for external thread M12x0.059"

C2312126

Sealing ring for external thread M12x0.059" Mounting between housing and gland flange. Preserves the high protection class IP 68.

Supply 1 sealing ring for external thread

Close

C2312126

Sealing ring for external thread M12x0.059"
product added to your list
PE
natural-colored
  • Technical Data
  • Purchasing Data
Material
Protection class
Color
silver gray RAL 7001
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
2 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
