A9152047

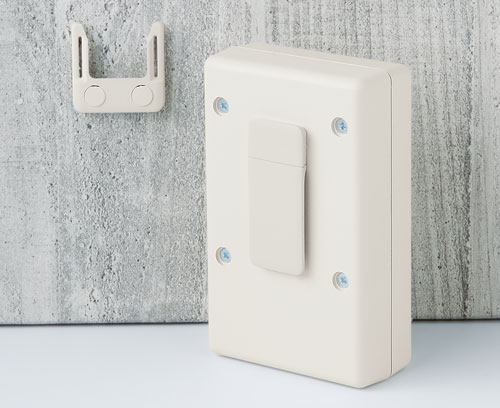

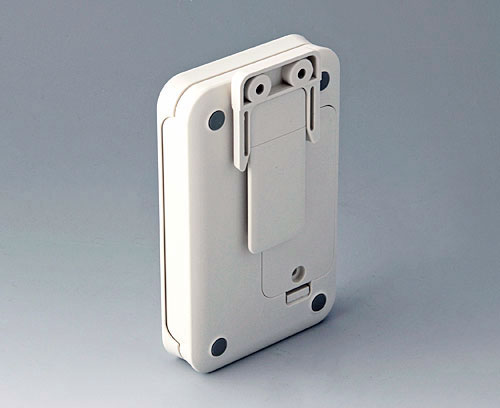

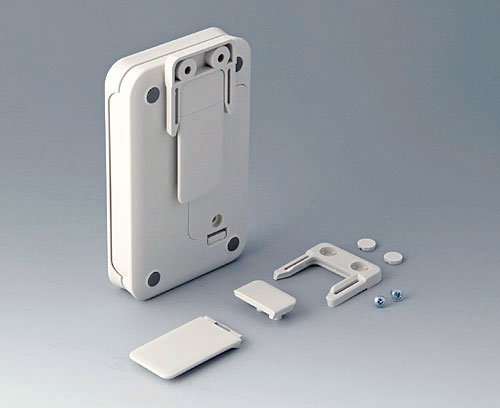

Combi-Clip

Serves as a clip and / or wall suspension. Assembly oriented towards the length or width (size S towards the length only). For a battery exchange, the clip can easily be removed. Two mounting holes diameter 0.165" necessary.

Supply

1 set

  • To be used for
  • View Customizing Options
AltText

A9050107

SOFT-CASE S Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards.Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height. With soft TPE ring (accessory) protection class IP 54 possible.

Version Without battery compartment

Supply Top and bottom part, assembly kit

Close

A9050107

SOFT-CASE S
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
2.01″x3.23″x0.55″
IP 54 opt., IP 40
AltText

A9051107

SOFT-CASE M Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height. With soft TPE ring (accessory) protection class IP 54 possible.

Version Without battery compartment

Supply Top and bottom part, assembly kit

Close

A9051107

SOFT-CASE M
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
2.56″x4.13″x0.75″
IP 54 opt., IP 40
AltText

A9051117

SOFT-CASE M Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height.

Version With battery compartment for 2 x AAA, accessible from the outside

Supply Top and bottom part, battery compartment lid, assembly kit

Close

A9051117

SOFT-CASE M
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
2.56″x4.13″x0.75″
IP 40
AltText

A9052107

SOFT-CASE L Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height. With soft TPE ring (accessory) protection class IP 54 possible.

Version Without battery compartment

Supply Top and bottom part, assembly kit

Close

A9052107

SOFT-CASE L
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
2.87″x4.61″x0.94″
IP 54 opt., IP 40
AltText

A9052117

SOFT-CASE L Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height.

Version With battery compartment for 2 x AA, accessible from the outside

Supply Top and bottom part, battery compartment lid, assembly kit

Close

A9052117

SOFT-CASE L
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
2.87″x4.61″x0.94″
IP 40
AltText

A9052127

SOFT-CASE L Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height.

Version With battery compartment for 1 x 9 V (PP3), accessible from the outside

Supply Top and bottom part, battery compartment lid, assembly kit

Close

A9052127

SOFT-CASE L
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
2.87″x4.61″x0.94″
IP 40
AltText

A9053107

SOFT-CASE XL Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height.

Version Without battery compartment

Supply Top and bottom part, assembly kit

Close

A9053107

SOFT-CASE XL
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
3.62″x5.91″x1.10″
IP 40
AltText

A9053117

SOFT-CASE XL Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height.

Version With battery compartment for 4 x AA, accessible from the outside

Supply Top and bottom part, battery compartment lid, assembly kit

Close

A9053117

SOFT-CASE XL
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
3.62″x5.91″x1.10″
IP 40

Customizing options for A9152047

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Color
off-white RAL 9002
Length
1.772″
45 mm
Width
1.063″
27 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
7 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
