A9152048 Combi-Clip

A9152048

Combi-Clip

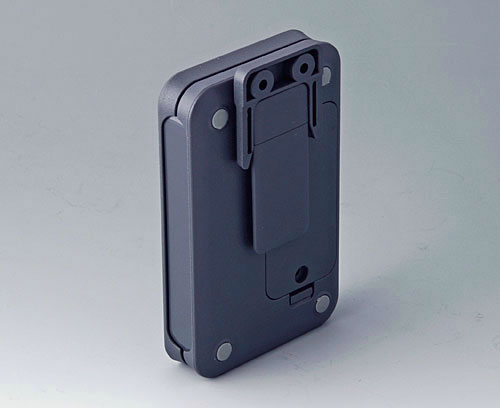

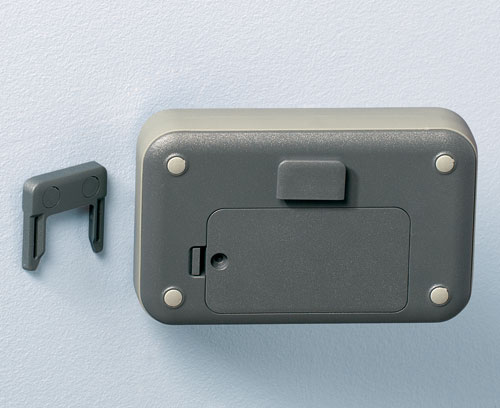

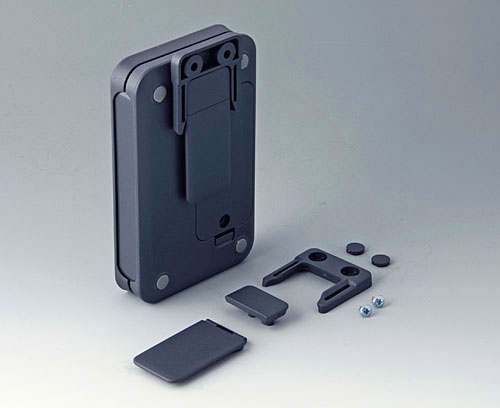

Serves as a clip and / or wall suspension. Assembly oriented towards the length or width (size S towards the length only). For a battery exchange, the clip can easily be removed. Two mounting holes diameter 0.165" necessary.

Supply

1 set

  • To be used for
  • View Customizing Options
A9050108 SOFT-CASE S

A9050108

SOFT-CASE S Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height. With soft TPE ring (accessory) protection class IP 54 possible.

Version Without battery compartment

Supply Top and bottom part, assembly kit

Close

A9050108

SOFT-CASE S
product added to your list
ABS (UL 94 HB)
lava
2.01″x3.23″x0.55″
IP 54 opt., IP 40
A9051108 SOFT-CASE M

A9051108

SOFT-CASE M Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height. With soft TPE ring (accessory) protection class IP 54 possible.

Version Without battery compartment

Supply Top and bottom part, assembly kit

Close

A9051108

SOFT-CASE M
product added to your list
ABS (UL 94 HB)
lava
2.56″x4.13″x0.75″
IP 54 opt., IP 40
A9051118 SOFT-CASE M

A9051118

SOFT-CASE M Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height.

Version With battery compartment for 2 x AAA, accessible from the outside

Supply Top and bottom part, battery compartment lid, assembly kit

Close

A9051118

SOFT-CASE M
product added to your list
ABS (UL 94 HB)
lava
2.56″x4.13″x0.75″
IP 40
A9052108 SOFT-CASE L

A9052108

SOFT-CASE L Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height. With soft TPE ring (accessory) protection class IP 54 possible.

Version Without battery compartment

Supply Top and bottom part, assembly kit

Close

A9052108

SOFT-CASE L
product added to your list
ABS (UL 94 HB)
lava
2.87″x4.61″x0.94″
IP 54 opt., IP 40
A9052118 SOFT-CASE L

A9052118

SOFT-CASE L Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height.

Version With battery compartment for 2 x AA, accessible from the outside

Supply Top and bottom part, battery compartment lid, assembly kit

Close

A9052118

SOFT-CASE L
product added to your list
ABS (UL 94 HB)
lava
2.87″x4.61″x0.94″
IP 40
A9052128 SOFT-CASE L

A9052128

SOFT-CASE L Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height.

Version With battery compartment for 1 x 9 V (PP3), accessible from the outside

Supply Top and bottom part, battery compartment lid, assembly kit

Close

A9052128

SOFT-CASE L
product added to your list
ABS (UL 94 HB)
lava
2.87″x4.61″x0.94″
IP 40
A9053108 SOFT-CASE XL

A9053108

SOFT-CASE XL Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height.

Version Without battery compartment

Supply Top and bottom part, assembly kit

Close

A9053108

SOFT-CASE XL
product added to your list
ABS (UL 94 HB)
lava
3.62″x5.91″x1.10″
IP 40
A9053118 SOFT-CASE XL

A9053118

SOFT-CASE XL Unique case construction with "orientation towards the width" in pocket-format. Recessed area for membrane keyboards. Fixing possibilities for PCBs in top and bottom part. Optional intermediate rings provide more installation height.

Version With battery compartment for 4 x AA, accessible from the outside

Supply Top and bottom part, battery compartment lid, assembly kit

Close

A9053118

SOFT-CASE XL
product added to your list
ABS (UL 94 HB)
lava
3.62″x5.91″x1.10″
IP 40

Customizing options for A9152048

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Length
1.772″
45 mm
Width
1.063″
27 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Weight/1 part
7 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
