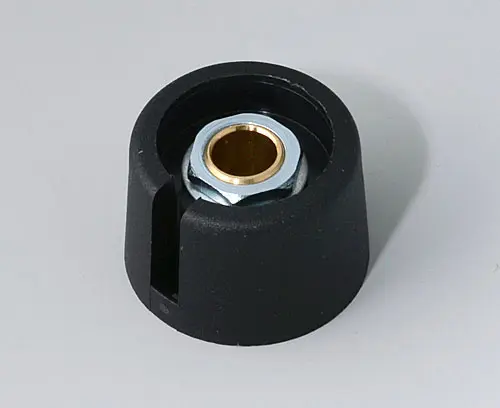

A3023069

COM-KNOBS 23, with recess

Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front. Borehole without chamfer.
Max. torque: assembly = 1.2 Nm, function = 1.0 Nm.

Supply

1 COM-KNOB (with recess)

  • Components/Accessories
  • View Customizing Options

System components to complete

AltText

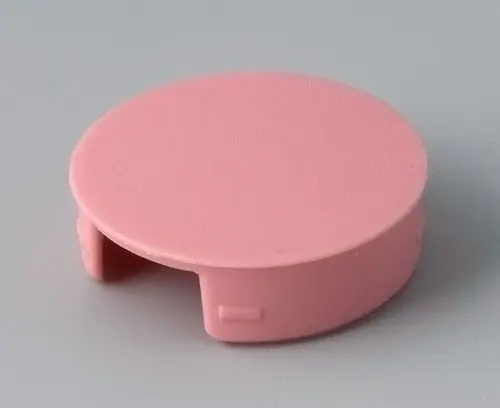

A3223003

Cover 23 Suitable for COM-KNOB 23. Cover simply to pin up.

Supply 1 cover

Close

A3223003

Cover 23
product added to your basket
PA 6
coral
AltText

A3223004

Cover 23 Suitable for COM-KNOB 23. Cover simply to pin up.

Supply 1 cover

Close

A3223004

Cover 23
product added to your basket
PA 6
beach
AltText

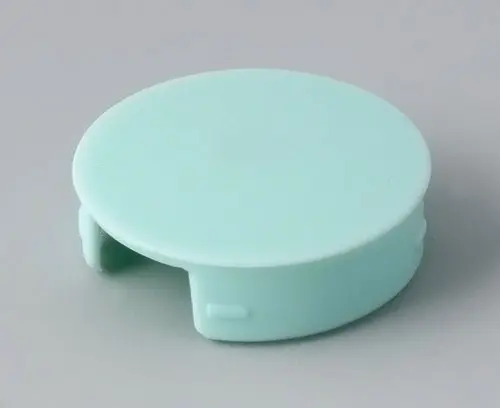

A3223005

Cover 23 Suitable for COM-KNOB 23. Cover simply to pin up.

Supply 1 cover

Close

A3223005

Cover 23
product added to your basket
PA 6
lagoon
AltText

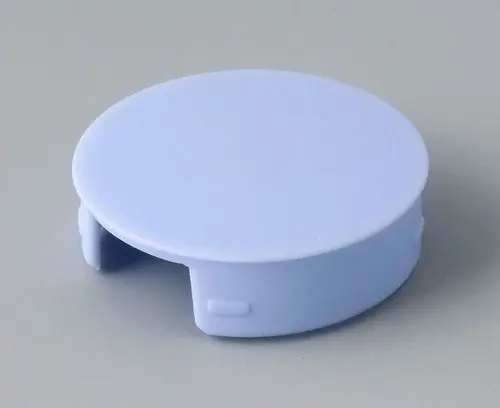

A3223006

Cover 23 Suitable for COM-KNOB 23. Cover simply to pin up.

Supply 1 cover

Close

A3223006

Cover 23
product added to your basket
PA 6
sky
AltText

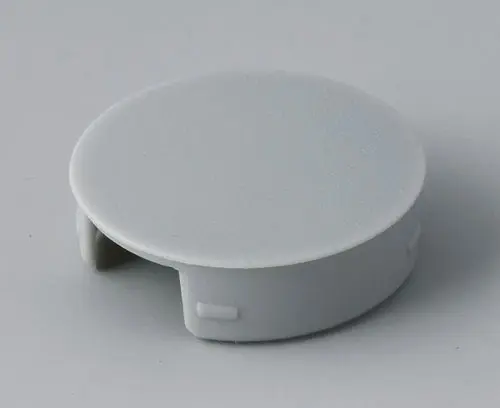

A3223007

Cover 23 Suitable for COM-KNOB 23. Cover simply to pin up.

Supply 1 cover

Close

A3223007

Cover 23
product added to your basket
PA 6
mineral
AltText

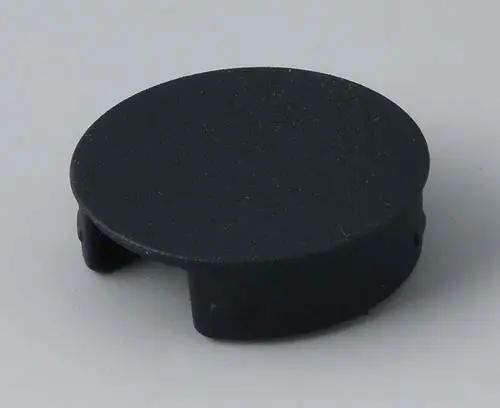

A3223009

Cover 23 Suitable for COM-KNOB 23. Cover simply to pin up.

Supply 1 cover

Close

A3223009

Cover 23
product added to your basket
PA 6
nero
AltText

A3223011

Cover 23 Cover with a matt chrome finish for a classy metallic look. Suitable for COM-KNOB 23. Cover simply to pin up.

Supply 1 cover

Close

A3223011

Cover 23
product added to your basket
ABS (UL 94 HB)
matt chromed
AltText

A3320003

Peak 20 - 50 Suitable for COM-KNOB 20-50 with recess. Marking element simply to pin up.

Supply 1 marking element "Peak"

Close

A3320003

Peak 20 - 50
product added to your basket
PA 6
coral
AltText

A3320004

Peak 20 - 50 Suitable for COM-KNOB 20-50 with recess. Marking element simply to pin up.

Supply 1 marking element "Peak"

Close

A3320004

Peak 20 - 50
product added to your basket
PA 6
beach
AltText

A3320005

Peak 20 - 50 Suitable for COM-KNOB 20-50 with recess. Marking element simply to pin up.

Supply 1 marking element "Peak"

Close

A3320005

Peak 20 - 50
product added to your basket
PA 6
lagoon
AltText

A3320006

Peak 20 - 50 Suitable for COM-KNOB 20-50 with recess. Marking element simply to pin up.

Supply 1 marking element "Peak"

Close

A3320006

Peak 20 - 50
product added to your basket
PA 6
sky
AltText

A3320007

Peak 20 - 50 Suitable for COM-KNOB 20-50 with recess. Marking element simply to pin up.

Supply 1 marking element "Peak"

Close

A3320007

Peak 20 - 50
product added to your basket
PA 6
mineral
AltText

A3320009

Peak 20 - 50 Suitable for COM-KNOB 20-50 with recess. Marking element simply to pin up.

Supply 1 marking element "Peak"

Close

A3320009

Peak 20 - 50
product added to your basket
PA 6
nero

Accessory "screws"

AltText

A6207009

Round nut M7 x 0.75

For fixing the potentiometers at front panels.

Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.

Supply 1 round nut

Close

A6207009

Round nut M7 x 0.75
product added to your basket
AltText

A6210009

Round nut M10 x 0.75

For fixing the potentiometers at front panels.

Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.

Supply 1 round nut

Close

A6210009

Round nut M10 x 0.75
product added to your basket
AltText

A6295009

Round nut 3/8"-32G For fixing the potentiometers at front panels.

Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.

Supply 1 round nut

Close

A6295009

Round nut 3/8"-32G
product added to your basket
AltText

A6300000

Spanner For tightening the round nut.

Supply 1 spanner

Close

A6300000

Spanner
product added to your basket

Customizing options for A3023069

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
Color
nero
Diameter
23 mm
Height
16 mm
Bore hole
6 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
8 g
Customs tariff number
(OKW product)
84879090
Country of manufacture
Germany
