A2423068

SPINDLE-SHAPED KNOB 23, with line

Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Center hole with chamfer. Black marking.

Supply

1 spindle-shaped knob

  • Components/Accessories
  • View Customizing Options

System components to complete

AltText

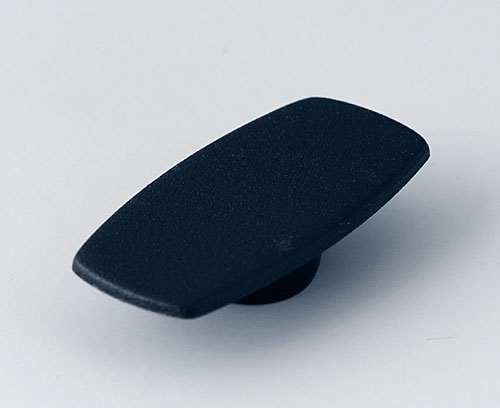

A5023000

Cover 23, without line Suitable for spindle-shaped knob 23. Cover simply to pin up.

Supply 1 cover

Close

A5023000

Cover 23, without line
product added to your basket
ABS (UL 94 HB)
black RAL 9005
AltText

A5023008

Cover 23, without line Suitable for spindle-shaped knob 23. Cover simply to pin up.

Supply 1 cover

Close

A5023008

Cover 23, without line
product added to your basket
ABS (UL 94 HB)
dusty gray RAL 7037
AltText

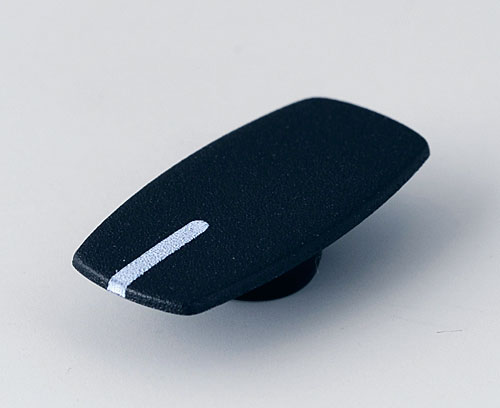

A5023100

Cover 23, with line Suitable for spindle-shaped knob 23. Cover simply to pin up. White marking.

Supply 1 cover

Close

A5023100

Cover 23, with line
product added to your basket
ABS (UL 94 HB)
black RAL 9005
AltText

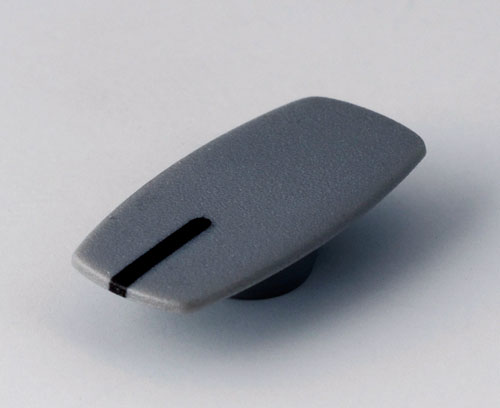

A5023108

Cover 23, with line Suitable for spindle-shaped knob 23. Cover simply to pin up. Black marking.

Supply 1 cover

Close

A5023108

Cover 23, with line
product added to your basket
ABS (UL 94 HB)
dusty gray RAL 7037

Accessory "screws"

AltText

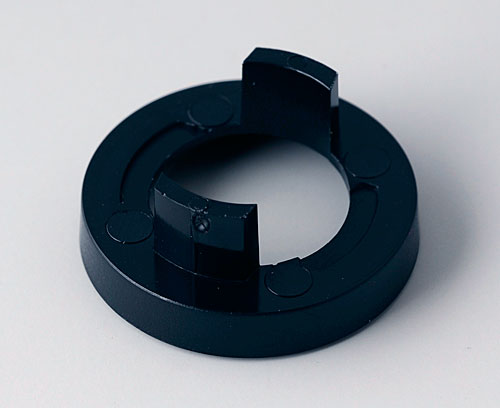

A5123000

Nut cover 23, without line Suitable for spindle-shaped knob 23. Nut cover simply to pin up.

Supply 1 nut cover

Close

A5123000

Nut cover 23, without line
product added to your basket
ABS (UL 94 HB)
black RAL 9005
AltText

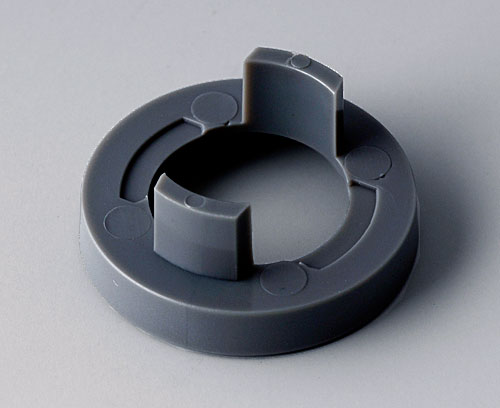

A5123008

Nut cover 23, without line Suitable for spindle-shaped knob 23. Nut cover simply to pin up.

Supply 1 nut cover

Close

A5123008

Nut cover 23, without line
product added to your basket
ABS (UL 94 HB)
dusty gray RAL 7037
AltText

A6207009

Round nut M7 x 0.75

For fixing the potentiometers at front panels.

Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.

Supply 1 round nut

Close

A6207009

Round nut M7 x 0.75
product added to your basket
AltText

A6210009

Round nut M10 x 0.75

For fixing the potentiometers at front panels.

Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.

Supply 1 round nut

Close

A6210009

Round nut M10 x 0.75
product added to your basket
AltText

A6295009

Round nut 3/8"-32G For fixing the potentiometers at front panels.

Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.

Supply 1 round nut

Close

A6295009

Round nut 3/8"-32G
product added to your basket
AltText

A6300000

Spanner For tightening the round nut.

Supply 1 spanner

Close

A6300000

Spanner
product added to your basket

Customizing options for A2423068

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Color
dusty gray RAL 7037
Diameter
23 mm
Height
16 mm
Bore hole
6 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
7 g
Customs tariff number
(OKW product)
84879090
Country of manufacture
Germany
