A2650060

ROUND KNOB 50, with line

Suitable for rotary potentiometer with round shaft ends according to DIN 41591. Collet system for convenient knob assembly from the front and simple adjustment (with adjustment key - sep. article). Continuous center hole. White marking.
Max. torque: assembly = 3,0 Nm, function = 1,8 Nm.

Supply

1 round knob

  • Components/Accessories
  • View Customizing Options

System components to complete

AltText

A4150000

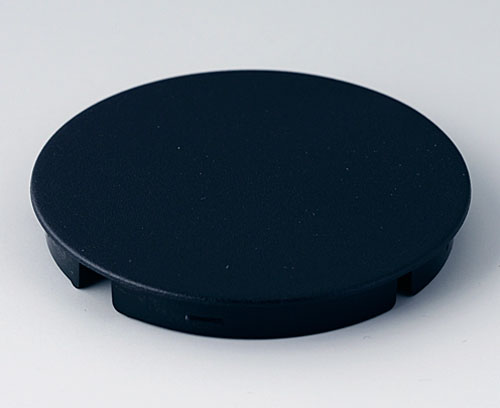

Cover 50, without line Suitable for round knobs 50. Cover simply to pin up.

Supply 1 cover

Close

A4150000

Cover 50, without line
product added to your basket
ABS (UL 94 HB)
black RAL 9005
AltText

A4150008

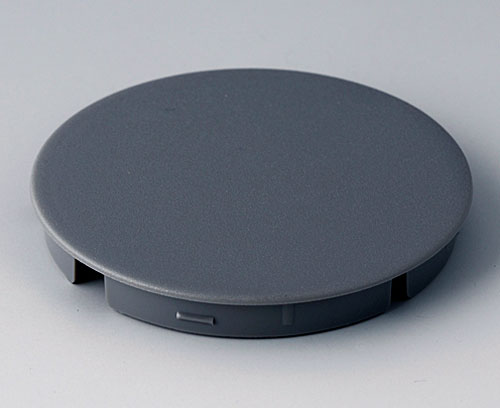

Cover 50, without line Suitable for round knobs 50. Cover simply to pin up.

Supply 1 cover

Close

A4150008

Cover 50, without line
product added to your basket
ABS (UL 94 HB)
dusty gray RAL 7037
AltText

A4150100

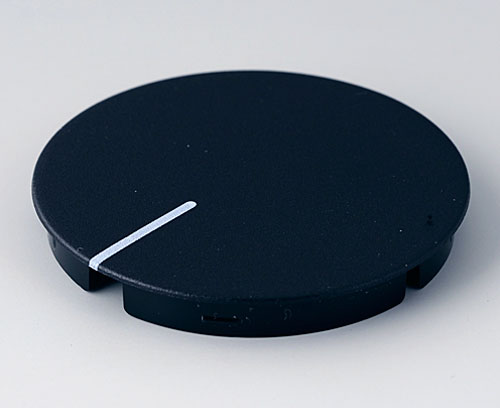

Cover 50, with line Suitable for round knobs 50. Cover simply to pin up. White marking.

Supply 1 cover

Close

A4150100

Cover 50, with line
product added to your basket
ABS (UL 94 HB)
black RAL 9005
AltText

A4150107

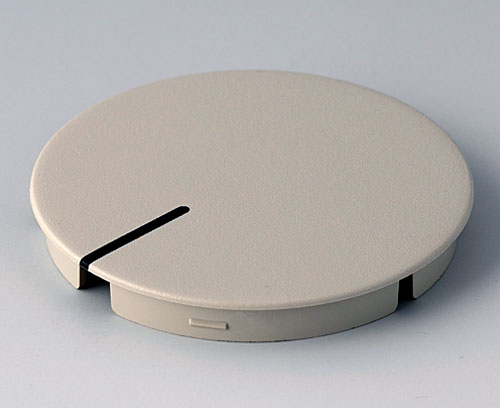

Cover 50, with line Suitable for round knobs 50. Cover simply to pin up. Black marking.

Supply 1 cover

Close

A4150107

Cover 50, with line
product added to your basket
ABS (UL 94 HB)
pebble gray RAL 7032

Accessory "screws"

AltText

A6207009

Round nut M7 x 0.75

For fixing the potentiometers at front panels.

Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.

Supply 1 round nut

Close

A6207009

Round nut M7 x 0.75
product added to your basket
AltText

A6210009

Round nut M10 x 0.75

For fixing the potentiometers at front panels.

Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.

Supply 1 round nut

Close

A6210009

Round nut M10 x 0.75
product added to your basket
AltText

A6295009

Round nut 3/8"-32G For fixing the potentiometers at front panels.

Suitable for
- round and wing knobs ø 10 - 16 with nut cover,
- round knobs ø 20 - 50 without nut cover,
- spindle-shaped knobs ø 16 - 40 with nut cover,
- Com-Knobs ø 16 - 50,
- Top-Knobs ø 20 - 40,
- Star-Knobs ø 33 & 41 and
- Control-Knobs ø 36 & 46.

Supply 1 round nut

Close

A6295009

Round nut 3/8"-32G
product added to your basket
AltText

A6300000

Spanner For tightening the round nut.

Supply 1 spanner

Close

A6300000

Spanner
product added to your basket

Accessory

AltText

A6600064

Torsion protection 6/4.6 Makes torsion-free knob assembly onto profile axles 6/4.6mm possible. Suitable for round knob sizes 20 to 50.

Supply 1 torsion protection

Close

A6600064

Torsion protection 6/4.6
product added to your basket

Customizing options for A2650060

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Color
black RAL 9005
Diameter
50 mm
Height
15 mm
Bore hole
6 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
12 g
Customs tariff number
(OKW product)
84879090
Country of manufacture
Germany
