A9190002 Set of battery clips, 2xN/2xAA/2xAAA

A9190002

Set of battery clips, 2xN/2xAA/2xAAA

For contacting the batteries.
Note application ART-CASE: only for base suitable (2 x AA).

Supply

1 double contact, 2 single contacts

  • To be used for
A9067107 SMART-CASE L, Vers. I

A9067107

SMART-CASE L, Vers. I Large, ergonomic handheld enclosure. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version With battery compartment for two 1.5 V mignon cells (AA)or a 9 V flat battery

Supply Case-top and base, battery compartment lid, assembly kit

Close

A9067107

SMART-CASE L, Vers. I
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
5.51″x2.47″x1.20″
IP 40
A9067109 SMART-CASE L, Vers. I

A9067109

SMART-CASE L, Vers. I Large, ergonomic handheld enclosure. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version With battery compartment for two 1.5 V mignon cells (AA) or a 9 V flat battery

Supply Case-top and base, battery compartment lid, assembly kit

Close

A9067109

SMART-CASE L, Vers. I
product added to your list
ABS (UL 94 HB)
black RAL 9005
5.51″x2.47″x1.20″
IP 40
A9067209 SMART-CASE L, Vers. I

A9067209

SMART-CASE L, Vers. I Large, ergonomic hand-held box. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part. Polished front area for utmost effectiveness when exposed to infra-red light.

Version With battery compartment for two 1.5 V mignon cells (AA) or a 9 V flat battery

Supply Case-top and base, battery compartment lid, assembly kit

Close

A9067209

SMART-CASE L, Vers. I
product added to your list
PMMA (IR) (UL 94 HB)
black RAL 9005
5.51″x2.47″x1.20″
IP 40
A9068107 SMART-CASE XL, Vers. I

A9068107

SMART-CASE XL, Vers. I Large, ergonomic hand-held box. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version With battery compartment for two 1.5 V mignon cells (AA) or a 9 V flat battery

Supply Case-top and base, battery compartment lid, assembly kit

Close

A9068107

SMART-CASE XL, Vers. I
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
6.61″x2.93″x1.39″
IP 40
A9068109 SMART-CASE XL, Vers. I

A9068109

SMART-CASE XL, Vers. I Large, ergonomic hand-held box. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part.

Version With battery compartment for two 1.5 V mignon cells (AA) or a 9 V flat battery

Supply Case-top and base, battery compartment lid, assembly kit

Close

A9068109

SMART-CASE XL, Vers. I
product added to your list
ABS (UL 94 HB)
black RAL 9005
6.61″x2.93″x1.39″
IP 40
A9068209 SMART-CASE XL, Vers. I

A9068209

SMART-CASE XL, Vers. I Large, ergonomic hand-held box. With recessed operating area for membrane keyboards. PCBs can be fixed in the top and base part. Polished front area for utmost effectiveness when exposed to infra-red light.

Version With battery compartment for two 1.5 V mignon cells (AA) or a 9 V flat battery

Supply Case-top and base, battery compartment lid, assembly kit

Close

A9068209

SMART-CASE XL, Vers. I
product added to your list
PMMA (IR) (UL 94 HB)
black RAL 9005
6.61″x2.93″x1.39″
IP 40
A9070107 DATEC-POCKET-BOX S

A9070107

DATEC-POCKET-BOX S Robust pocket-box without sealing. Recessed control area for membrane keyboards. Screw pillars prepared for mounting PCBs in the base. Two-piece version. Integrated battery compartment for two 1.5 V lady cells (N).

Supply Case-top and base, assembly kit

Close

A9070107

DATEC-POCKET-BOX S
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
3.35″x1.81″x0.63″
IP 41
A9070109 DATEC-POCKET-BOX S

A9070109

DATEC-POCKET-BOX S Robust pocket-box without sealing. Recessed control area for membrane keyboards. Screw pillars prepared for mounting PCBs in the top and base. Two-piece version. Integrated battery compartment for two 1.5 V lady cells (N).

Supply case-top and base, assembly kit

Close

A9070109

DATEC-POCKET-BOX S
product added to your list
ABS (UL 94 HB)
black RAL 9005
3.35″x1.81″x0.63″
IP 41
A9070117 DATEC-POCKET-BOX S

A9070117

DATEC-POCKET-BOX S Robust pocket-box with sealing. Recessed control area for membrane keyboards. Screw pillars prepared for mounting PCBs in the top and base. Two-piece version. Integrated battery compartment for two 1.5 V lady cells (N).

Supply Case-top and base, assembly kit

Close

A9070117

DATEC-POCKET-BOX S
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
3.35″x1.81″x0.63″
IP 54
A9070119 DATEC-POCKET-BOX S

A9070119

DATEC-POCKET-BOX S Robust pocket-box with sealing. Recessed control area for membrane keyboards. Screw pillars prepared for mounting PCBs in the top and base. Two-piece version. Integrated battery compartment for two 1.5 V lady cells (N).

Supply Case-top and base, assembly kit

Close

A9070119

DATEC-POCKET-BOX S
product added to your list
ABS (UL 94 HB)
black RAL 9005
3.35″x1.81″x0.63″
IP 54
A9070209 DATEC-POCKET-BOX S

A9070209

DATEC-POCKET-BOX S Robust pocket-box without sealing. Recessed control area for membrane keyboards. Screw pillars prepared for mounting PCBs in the top and base. Two-piece version. Integrated battery compartment for two 1.5 V lady cells (N).

Supply Case-top and base, assembly kit

Close

A9070209

DATEC-POCKET-BOX S
product added to your list
PMMA (IR) (UL 94 HB)
black RAL 9005
3.35″x1.81″x0.63″
IP 41
A9070219 DATEC-POCKET-BOX S

A9070219

DATEC-POCKET-BOX S Robust pocket-box with sealing. Recessed control area for membrane keyboards. Screw pillars prepared for mounting PCBs in the top and base. Two-piece version. Integrated battery compartment for two 1.5 V lady cells (N).

Supply Case-top and base, assembly kit

Close

A9070219

DATEC-POCKET-BOX S
product added to your list
PMMA (IR) (UL 94 HB)
black RAL 9005
3.35″x1.81″x0.63″
IP 54
A9071107 DATEC-POCKET-BOX M

A9071107

DATEC-POCKET-BOX M Robust pocket-box without sealing. Recessed control area for membrane keyboards. Screw pillars prepared for mounting PCBs in the top and base. Battery compartment accessible from the outside with screwed battery compartment lid in case bottom. Battery compartment for 2 x 1,5 V micro cells (AAA).

Supply Case-top and base, battery compartment lid, assembly kit

Close

A9071107

DATEC-POCKET-BOX M
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
4.13″x2.28″x0.73″
IP 41
A9071109 DATEC-POCKET-BOX M

A9071109

DATEC-POCKET-BOX M Robust pocket-box without sealing. Recessed control area for membrane keyboards. Screw pillars prepared for mounting PCBs in the top and base. Battery compartment accessible from the outside with screwed battery compartment lid in case bottom. Battery compartment for 2 x 1.5 V micro cells (AAA).

Supply Case-top and base, battery compartment lid, assembly kit

Close

A9071109

DATEC-POCKET-BOX M
product added to your list
ABS (UL 94 HB)
black RAL 9005
4.13″x2.28″x0.73″
IP 41
A9071117 DATEC-POCKET-BOX M

A9071117

DATEC-POCKET-BOX M Robust pocket-box with sealing. Recessed control area for membrane keyboards. Screw pillars prepared for mounting PCBs in the top and base. Battery compartment accessible from the outside with screwed battery compartment lid in case bottom. Battery compartment for 2 x 1.5 V micro cells (AAA).

Supply Case-top and base, battery compartment lid, assembly kit

Close

A9071117

DATEC-POCKET-BOX M
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
4.13″x2.28″x0.73″
IP 54
A9071119 DATEC-POCKET-BOX M

A9071119

DATEC-POCKET-BOX M Robust pocket-box with sealing. Recessed control area for membrane keyboards. Screw pillars prepared for mounting PCBs in the top and base. Battery compartment accessible from the outside with screwed battery compartment lid in case bottom. Battery compartment for 2 x 1.5 V micro cells (AAA).

Supply Case-top and base, battery compartment lid, assembly kit

Close

A9071119

DATEC-POCKET-BOX M
product added to your list
ABS (UL 94 HB)
black RAL 9005
4.13″x2.28″x0.73″
IP 54
A9071209 DATEC-POCKET-BOX M

A9071209

DATEC-POCKET-BOX M Robust pocket-box without sealing. Recessed control area for membrane keyboards. Screw pillars prepared for mounting PCBs in the top and base. Battery compartment accessible from the ouside with screwed battery compartment lid in case bottom. Front area for infa-red applications with utmost efficiency. Battery compartment for 2 x 1.5 V micro cells (AAA).

Supply Case-top and base, battery compartment lid, assembly kit

Close

A9071209

DATEC-POCKET-BOX M
product added to your list
PMMA (IR) (UL 94 HB)
black RAL 9005
4.13″x2.28″x0.73″
IP 41
A9071219 DATEC-POCKET-BOX M

A9071219

DATEC-POCKET-BOX M Robust pocket-box with sealing. Recessed control area for membrane keyboards. Screw pillars prepared for mounting PCBs in the top and base. Battery compartment accessible from the outside with screwed battery compartment lid in case bottom. Front area for infa-red applications with utmost efficiency. Battery compartment for 2 x 1.5 V micro cells (AAA).

Supply Case-top and base, battery compartment lid, assembly kit

Close

A9071219

DATEC-POCKET-BOX M
product added to your list
ABS (UL 94 HB)
black RAL 9005
4.13″x2.28″x0.73″
IP 54
A9072107 DATEC-POCKET-BOX L

A9072107

DATEC-POCKET-BOX L Robust pocket box without sealing. Recessed control area for membrane keyboards. Screw pillars prepared for mounting PCBs in the top and base. Battery compartment accessible from the outside with screwed battery compartment lid in case bottom. Battery compartment for 1 x 9 V flat battery (PP3) or 2 x 1.5 V mignon cell (AA).

Supply Case-top and base, battery compartment lid, assembly kit

Close

A9072107

DATEC-POCKET-BOX L
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
4.72″x2.56″x0.87″
IP 41
A9072109 DATEC-POCKET-BOX L

A9072109

DATEC-POCKET-BOX L Robust pocket box without sealing. Recessed control area for membrane keyboards. Screw pillars prepared for mounting PCBs in the top and base. Battery compartment accessible from the outside with screwed battery compartment lid in case bottom. Battery compartment for 1 x 9 V flat battery or 2 x 1.5 V mignon cell (AA).

Supply Case-top and base, battery compartment lid, assembly kit

Close

A9072109

DATEC-POCKET-BOX L
product added to your list
ABS (UL 94 HB)
black RAL 9005
4.72″x2.56″x0.87″
IP 41
A9072117 DATEC-POCKET-BOX L

A9072117

DATEC-POCKET-BOX L Robust pocket box with sealing. Recessed control area for membrane keyboards. Screw pillars prepared for mounting PCBs in the top and base. Battery compartment accessible from the outside with screwed battery compartment lid in case bottom. Battery compartment for 1 x 9 V flat battery or 2 x 1.5 V mignon cell (AA).

Supply Case-top and base, battery compartment lid, assembly kit

Close

A9072117

DATEC-POCKET-BOX L
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
4.72″x2.56″x0.87″
IP 54
A9072119 DATEC-POCKET-BOX L

A9072119

DATEC-POCKET-BOX L Robust pocket box wit sealing. Recessed control area for membrane keyboards. Screw pillars prepared for mounting PCBs in the top and base. Battery compartment accessible from the outside with screwed battery compartment lid in case bottom. Battery compartment for 1 x 9 V flat battery or 2 x 1.5 V mignon cell (AA).

Supply Case-top and base, battery compartment lid, assembly kit

Close

A9072119

DATEC-POCKET-BOX L
product added to your list
ABS (UL 94 HB)
black RAL 9005
4.72″x2.56″x0.87″
IP 54
A9072127 DATEC-POCKET-BOX L

A9072127

DATEC-POCKET-BOX L Robust pocket box without sealing. Recessed control area for membrane keyboards. Screw pillars prepared for mounting PCBs in the top and base. Battery compartment accessible from the outside with locking battery compartment lid in case bottom. Battery compartment for 1 x 9 V flat battery or 2 x 1.5 V mignon cell (AA).

Supply Case-top and base, battery compartment lid, assembly kit

Close

A9072127

DATEC-POCKET-BOX L
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
4.72″x2.56″x0.87″
IP 41
A9072129 DATEC-POCKET-BOX L

A9072129

DATEC-POCKET-BOX L Robust pocket box without sealing. Recessed control area for membrane keyboards. Screw pillars prepared for mounting PCBs in the top and base. Battery compartment accessible from the outside with locking battery compartment lid in case bottom. Battery compartment for 1 x 9 V flat battery or 2 x 1.5 V mignon cell (AA).

Supply Case-top and base, battery compartment lid, assembly kit

Close

A9072129

DATEC-POCKET-BOX L
product added to your list
ABS (UL 94 HB)
black RAL 9005
4.72″x2.56″x0.87″
IP 41
A9072209 DATEC-POCKET-BOX L

A9072209

DATEC-POCKET-BOX L Robust pocket box without sealing. Recessed control area for membrane keyboards. Screw pillars prepared for mounting PCBs in the top and base. Battery compartment accessible from the outside with screwed battery compartment lid in case bottom. Front area for infra-red applications with utmost efficiency. Battery compartment for 1 x 9 V flat battery or 2 x 1.5 V mignon cell (AA).

Supply Case-top and base, battery compartment lid, assembly kit

Close

A9072209

DATEC-POCKET-BOX L
product added to your list
PMMA (IR) (UL 94 HB)
black RAL 9005
4.72″x2.56″x0.87″
IP 41
A9072219 DATEC-POCKET-BOX L

A9072219

DATEC-POCKET-BOX L Robust pocket box with sealing. Recessed control area for membrane keyboards. Screw pillars prepared for mounting PCBs in the top and base. Battery compartment accessible from the outside with screwed battery compartment lid in case bottom. Front area for infra-red applications with utmost efficiency. Battery compartment for 1 x 9 V flat battery or 2 x 1.5 V mignon cell (AA).

Supply Case-top and base, battery compartment lid, assembly kit

Close

A9072219

DATEC-POCKET-BOX L
product added to your list
ABS (UL 94 HB)
black RAL 9005
4.72″x2.56″x0.87″
IP 54
A9072229 DATEC-POCKET-BOX L

A9072229

DATEC-POCKET-BOX L Robust pocket box without sealing. Recessed control area for membrane keyboards. Screw pillars prepared for mounting PCBs in the top and base. Battery compartment accessible from the outside with locking battery compartment lid in case bottom. Front area for infra-red applications with utmost efficiency. Battery compartment for 1 x 9 V flat battery or 2 x 1.5 V mignon cell (AA).

Supply Case-top and base, battery compartment lid, assembly kit

Close

A9072229

DATEC-POCKET-BOX L
product added to your list
PMMA (IR) (UL 94 HB)
black RAL 9005
4.72″x2.56″x0.87″
IP 41

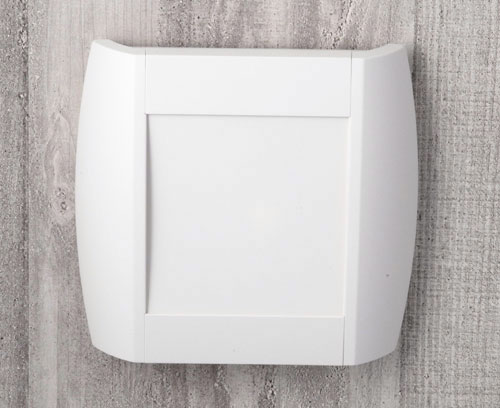

A9093107 DIATEC S

A9093107

DIATEC S Four-part case. The bottom part can be fixed directly to the wall, the top part will be assembled by means of screws from the front. 2 side trims close the case. If required, the trims can also be locked, thus preventing unauthorized access. Recessed operating area to protect the membrane keyboard. Fastening pillars for PCBs in bottom and top part. Integrated supports for 2 x AA / 1 x 9 V.

Supply bottom and top part, trim left and right side incl. 2 locking elements, assembly kit

Close

A9093107

DIATEC S
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
8.27″x1.89″x7.87″
IP 40

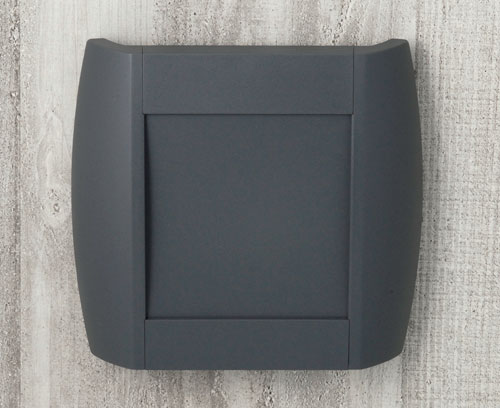

A9093108 DIATEC S

A9093108

DIATEC S Four-part case. The bottom part can be fixed directly to the wall, the top part will be assembled by means of screws from the front. 2 side trims close the case. If required, the trims can also be locked, thus preventing unauthorized access. Recessed operating area to protect the membrane keyboard. Fastening pillars for PCBs in bottom and top part. Integrated supports for 2 x AA / 1 x 9 V.

Supply Bottom and top part, trim left and right side incl. 2 locking elements, assembly kit

Close

A9093108

DIATEC S
product added to your list
ABS (UL 94 HB)
lava
8.27″x1.89″x7.87″
IP 40

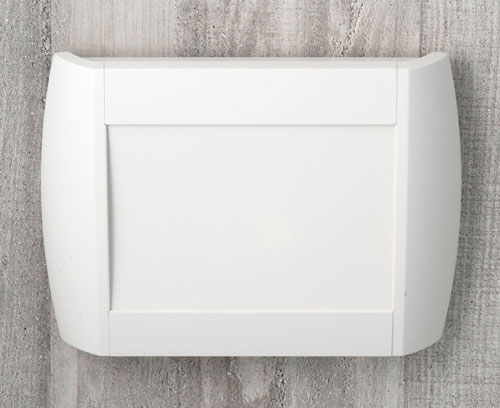

A9094107 DIATEC M

A9094107

DIATEC M Four-part case. The bottom part can be fixed directly to the wall, the top part will be assembled by means of screws from the front. 2 side trims close the case. If required, the trims can also be locked, thus preventing unauthorized access. Recessed operating area to protect the membrane keyboard. Fastening pillars for PCBs in bottom and top part. Integrated supports for 2 x AA / 1 x 9 V.

Supply Bottom and top part, trim left and right side incl. 2 locking elements, assembly kit

Close

A9094107

DIATEC M
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
10.63″x1.89″x7.87″
IP 40

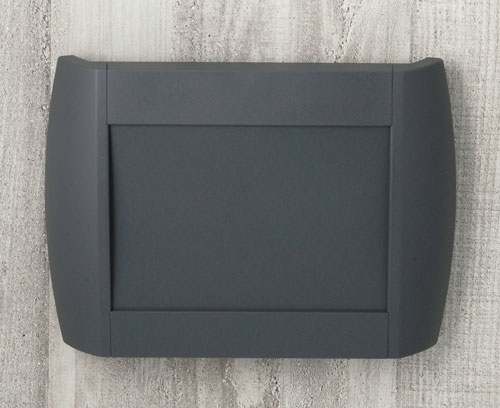

A9094108 DIATEC M

A9094108

DIATEC M Four-part case. The bottom part can be fixed directly to the wall, the top part will be assembled by means of screws from the front. 2 side trims close the case. If required, the trims can also be locked, thus preventing unauthorized access. Recessed operating area to protect the membrane keyboard. Fastening pillars for PCBs in bottom and top part. Integrated supports for 2 x AA / 1 x 9 V.

Supply Bottom and top part, trim left and right side incl. 2 locking elements, assembly kit

Close

A9094108

DIATEC M
product added to your list
ABS (UL 94 HB)
lava
10.63″x1.89″x7.87″
IP 40

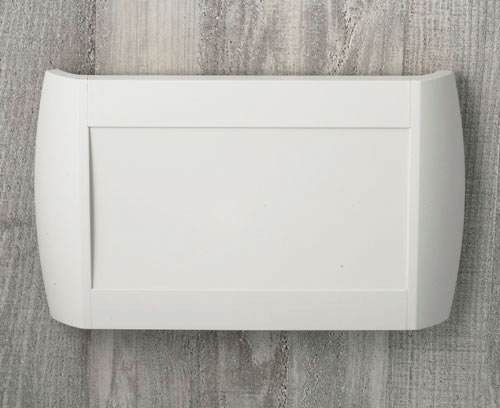

A9095107 DIATEC L

A9095107

DIATEC L Four-part case. The bottom part can be fixed directly to the wall, the top part will be assembled by means of screws from the front. 2 side trims close the case. If required, the trims can also be locked, thus preventing unauthorized access. Recessed operating area to protect the membrane keyboard. Fastening pillars in the bottom and top part. Integrated battery compartment for 2 x AA / 1 x 9 V. If required the hinged lid S can be mounted either on the right or on the left to partially cover the dialog area (on one side).

Supply Bottom and top part, trim left and right side incl. 2 locking elements, assembly kit

Close

A9095107

DIATEC L
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
12.99″x1.89″x7.87″
IP 40

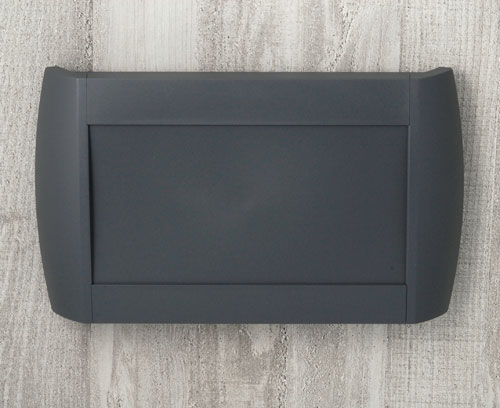

A9095108 DIATEC L

A9095108

DIATEC L Four-part case. The bottom part can be fixed directly to the wall, the top part will be assembled by means of screws from the front. 2 side trims close the case. If required, the trims can also be locked, thus preventing unauthorized access. Recessed operating area to protect the membrane keyboard. Fastening pillars in the bottom and top part. Integrated supports for 2 x AA / 1 x 9 V. If required the hinged lid S can be mounted either on the right or on the left to partially cover the dialog area (on one side).

Supply Bottom and top part, trim left and right side incl. 2 locking elements, assembly kit

Close

A9095108

DIATEC L
product added to your list
ABS (UL 94 HB)
lava
12.99″x1.89″x7.87″
IP 40
B5010007 Bottom and top part R110 F

B5010007

Bottom and top part R110 F Assembly unit: With bayonet lock, snapping into place. If required securing using 2 screws. Screw pillars for PCBs in bottom and top part. Screw pillars for battery compartment (acc.) in bottom part. Top part with recessed area for membrane keyboards. End piece (lid / battery compartment lid / base) required for bottom part - see separate article.

Version Bottom part "level"

Supply 1 top and bottom part R110 F, assembly kit

Close

B5010007

Bottom and top part R110 F
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
⌀4.33″x1.18″
B5010009 Bottom and top part R110F

B5010009

Bottom and top part R110F Assembly unit: With bayonet lock, snapping into place. If required securing using 2 screws. Screw pillars for PCBs in bottom and top part. Screw pillars for battery compartment (acc.) in bottom part. Top part with recessed area for membrane keyboards. End piece (lid / battery compartment lid / base) required for bottom part - see separate article.

Version Bottom part "level"

Supply 1 top and bottom part R110 F, assembly kit

Close

B5010009

Bottom and top part R110F
product added to your list
ABS (UL 94 HB)
black RAL 9005
⌀4.33″x1.18″
B5010107 Bottom and top part R110 H

B5010107

Bottom and top part R110 H Assembly unit: With bayonet lock, snapping into place. If required securing using 2 screws. Screw pillars for PCBs in bottom and top part. Screw pillars for battery compartment (acc.) in bottom part. End piece (lid / battery compartment lid / base) required for bottom part - see separate article.

Version Bottom part "level"

Supply 1 top and bottom part R110 H, assembly kit

Close

B5010107

Bottom and top part R110 H
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
⌀4.33″x1.50″
B5010109 Bottom and top part R110 H

B5010109

Bottom and top part R110 H Assembly unit: With bayonet lock, snapping into place. If required securing using 2 screws. Screw pillars for PCBs in bottom and top part. Screw pillars for battery compartment (acc.) in bottom part. End piece (lid / battery compartment lid / base) required for bottom part - see separate article.

Version Bottom part "level"

Supply 1 top and bottom part R110 H, assembly kit

Close

B5010109

Bottom and top part R110 H
product added to your list
ABS (UL 94 HB)
black RAL 9005
⌀4.33″x1.50″
B5010207 Bottom and top part R110 F

B5010207

Bottom and top part R110 F Assembly unit: With bayonet lock, snapping into place. If required securing using 2 screws. Screw pillars for PCBs in bottom and top part. Screw pillars for battery compartment (acc.) in bottom part. Top part with recessed area for membrane keyboards. End piece (lid / battery compartment lid / base / base 30° or base 55°) required for bottom part - see separate article.

Version Bottom part "inclined"

Supply 1 top and bottom part R110 F, assembly kit

Close

B5010207

Bottom and top part R110 F
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
⌀4.33″x1.50″
B5010209 Bottom and top part R110 F

B5010209

Bottom and top part R110 F Assembly unit: With bayonet lock, snapping into place. If required securing using 2 screws. Screw pillars for PCBs in bottom and top part. Screw pillars for battery compartment (acc.) in bottom part. Top part with recessed area for membrane keyboards. End piece (lid / battery compartment lid / base / base 30° or base 55°) required for bottom part - see separate article.

Version Bottom part "inclined"

Supply 1 top and bottom part R110 F, assembly kit

Close

B5010209

Bottom and top part R110 F
product added to your list
ABS (UL 94 HB)
black RAL 9005
⌀4.33″x1.50″
B5010307 Bottom and top part R110 H

B5010307

Bottom and top part R110 H Assembly unit: With bayonet lock, snapping into place. If required securing using 2 screws. Screw pillars for PCBs in bottom and top part. Screw pillars for battery compartment (acc.) in bottom part. End piece (lid / battery compartment lid / base / base 30° or base 55°) required for bottom part - see separate article.

Version Bottom part "inclined"

Supply 1 top and bottom part R110 H, assembly kit

Close

B5010307

Bottom and top part R110 H
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
⌀4.33″x1.61″
B5010309 Bottom and top part R110 H

B5010309

Bottom and top part R110 H Assembly unit: With bayonet lock, snapping into place. If required securing using 2 screws. Screw pillars for PCBs in bottom and top part. Screw pillars for battery compartment (acc.) in bottom part. End piece (lid / battery compartment lid / base / base 30° or base 55°) required for bottom part - see separate article.

Version Bottom part "inclined"

Supply 1 top and bottom part R110 H, assembly kit

Close

B5010309

Bottom and top part R110 H
product added to your list
ABS (UL 94 HB)
black RAL 9005
⌀4.33″x1.61″
B5011117 Base

B5011117

Base Assembly unit: suitable for all bottom parts. Spacer for ceiling / wall mounting. Easy to mount with bayonet lock. If required it can be additionally secured using the anti-rotation device (acc.). Locators for 2 x AA and strain relief (acc.) in the base.

Supply 1 base

Close

B5011117

Base
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
B5011119 Base

B5011119

Base Assembly unit: suitable for all bottom parts. Spacer for ceiling / wall mounting. Easy to mount with bayonet lock. If required it can be additionally secured using the anti-rotation device (acc.). Locators for 2 x AA and strain relief (acc.) in the base.

Supply 1 base

Close

B5011119

Base
product added to your list
ABS (UL 94 HB)
black RAL 9005
B5012207 Bottom and top part S110F

B5012207

Bottom and top part S110F Assembly unit: Screw pillars for PCBs in top part. Screw pillars for battery compartment (acc.) in bottom part. Top part with recessed area for membrane keyboards. End piece (lid / battery compartment lid / base / base 30°or base 55°) required for bottom part - see separate article.

Version Bottom part "inclinded"

Supply 1 top and bottom part S110 F, assembly kit

Close

B5012207

Bottom and top part S110F
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
4.33″x4.33″x1.50″
B5012209 Bottom and top part S110F

B5012209

Bottom and top part S110F Assembly unit: Screw pillars for PCBs in top part. Screw pillars for battery compartment (acc.) in bottom part. Top part with recessed area for membrane keyboards. End piece (lid / battery compartment lid / base / base 30°or base 55°) required for bottom part - see separate article.

Version Bottom part "inclinded"

Supply 1 top and bottom part S110 F, assembly kit

Close

B5012209

Bottom and top part S110F
product added to your list
ABS (UL 94 HB)
black RAL 9005
4.33″x4.33″x1.50″
B5015007 Bottom and top part O160 F

B5015007

Bottom and top part O160 F Assembly unit: Screw pillars for PCBs in top part. Screw pillars for battery compartment (acc.) in bottom part. Top part with recessed area for membrane keyboards. End piece (lid / battery compartment lid / base) required for bottom part - see separate article.

Version Bottom part "level"

Supply 1 top and bottom part O160 F, assembly kit

Close

B5015007

Bottom and top part O160 F
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
6.30″x4.33″x1.18″
B5015009 Bottom and top part O160 F

B5015009

Bottom and top part O160 F Assembly unit: Screw pillars for PCBs in top part. Screw pillars for battery compartment (acc.) in bottom part. Top part with recessed area for membrane keyboards. End piece (lid / battery compartment lid / base) required for bottom part - see separate article.

Version Bottom part "level"

Supply 1 top and bottom part O160 F, assembly kit

Close

B5015009

Bottom and top part O160 F
product added to your list
ABS (UL 94 HB)
black RAL 9005
6.30″x4.33″x1.18″
B5015107 Bottom and top part O160 H

B5015107

Bottom and top part O160 H Assembly unit: Screw pillars for PCBs in top part. Screw pillars for battery compartment (acc.) in bottom part. End piece (lid / battery compartment lid / base) required for bottom part - see separate article.

Version Bottom part "level"

Supply 1 top and bottom part O160 H, assembly kit

Close

B5015107

Bottom and top part O160 H
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
6.30″x4.33″x1.50″
B5015109 Bottom and top part O160 H

B5015109

Bottom and top part O160 H Assembly unit: Screw pillars for PCBs in top part. Screw pillars for battery compartment (acc.) in bottom part. End piece (lid / battery compartment lid / base) required for bottom part - see separate article.

Version Bottom part "level"

Supply 1 top and bottom part O160 H, assembly kit

Close

B5015109

Bottom and top part O160 H
product added to your list
ABS (UL 94 HB)
black RAL 9005
6.30″x4.33″x1.50″
B5015207 Bottom and top part O160 F

B5015207

Bottom and top part O160 F Assembly unit: Screw pillars for PCBs in top part. Screw pillars for battery compartment (acc.) in bottom part. Top part with recessed area for membrane keyboards. End piece (lid / battery compartment lid / base / base 30° or base 55°) required for bottom part - see separate article.

Version Bottom part "inclined"

Supply 1 top and bottom part O160 F, assembly kit

Close

B5015207

Bottom and top part O160 F
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
6.30″x4.33″x1.50″
B5015209 Bottom and top part O160 F

B5015209

Bottom and top part O160 F Assembly unit: Screw pillars for PCBs in top part. Screw pillars for battery compartment (acc.) in bottom part. Top part with recessed area for membrane keyboards. End piece (lid / battery compartment lid / base / base 30° or base 55°) required for bottom part - see separate article.

Version Bottom part "inclined"

Supply 1 top and bottom part O160 F, assembly kit

Close

B5015209

Bottom and top part O160 F
product added to your list
ABS (UL 94 HB)
black RAL 9005
6.30″x4.33″x1.50″
B5015307 Bottom and top part O160 H

B5015307

Bottom and top part O160 H Assembly unit: Screw pillars for PCBs in top part. Screw pillars for battery compartment (acc.) in bottom part. End piece (lid / battery compartment lid / base / base 30° or base 55°) required for bottom part - see separate article.

Version Bottom part "inclined"

Supply 1 top and bottom part O160 H, assembly kit

Close

B5015307

Bottom and top part O160 H
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
6.30″x4.33″x1.61″
B5015309 Bottom and top part O160 H

B5015309

Bottom and top part O160 H Assembly unit: Screw pillars for PCBs in top part. Screw pillars for battery compartment (acc.) in bottom part. End piece (lid / battery compartment lid / base / base 30° or base 55°) required for bottom part - see separate article.

Version Bottom part "inclined"

Supply 1 top and bottom part O160 H, assembly kit

Close

B5015309

Bottom and top part O160 H
product added to your list
ABS (UL 94 HB)
black RAL 9005
6.30″x4.33″x1.61″
B5017207 Bottom and top part E160 F

B5017207

Bottom and top part E160 F Assembly unit: Screw pillars for PCBs in top part. Screw pillars for battery compartment (acc.) in bottom part. Top part with recessed area for membrane keyboards. End piece (lid / battery compartment lid / base / base 30° or base 55°) required for bottom part - see separate article.

Version Bottom part "inclined"

Supply 1 top and bottom part E160 F, assembly kit

Close

B5017207

Bottom and top part E160 F
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
6.30″x4.33″x1.50″
B5017209 Bottom and top part E160 F

B5017209

Bottom and top part E160 F Assembly unit: Screw pillars for PCBs in top part. Screw pillars for battery compartment (acc.) in bottom part. Top part with recessed area for membrane keyboards. End piece (lid / battery compartment lid / base / base 30° or base 55°) required for bottom part - see separate article.

Version Bottom part "inclined"

Supply 1 top and bottom part E160 F, assembly kit

Close

B5017209

Bottom and top part E160 F
product added to your list
ABS (UL 94 HB)
black RAL 9005
6.30″x4.33″x1.50″
  • Technical Data
  • Purchasing Data
Material
Color
tin-plated
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
1.3 g
Customs tariff number
(OKW product)
73201090
Country of manufacture
Germany
trafficflow
