A9106627 Holder M

A9106627

Holder M

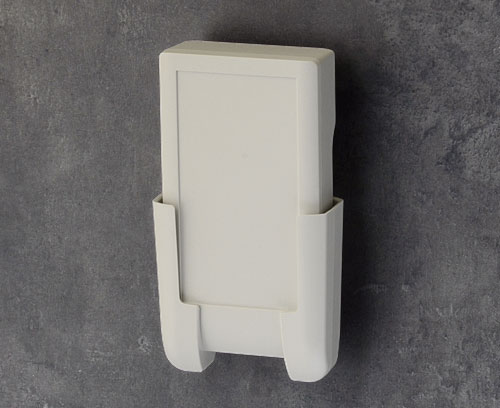

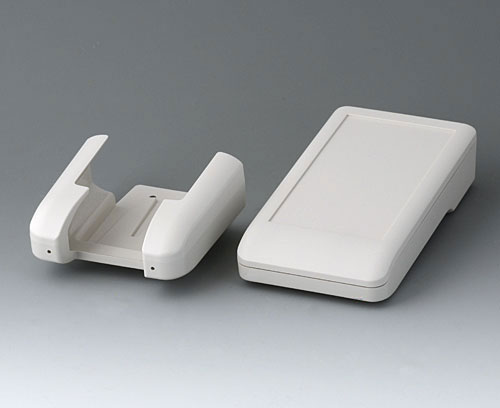

Special holder for DATEC-COMPACT M for the secure storage of wired and wireless mobile devices. With large recess for plug-in connections. The holder is mounted on the wall or on other components with standard screws with head diameters of 0.217" to 0.276".

Supply

1 holder

  • To be used for
  • View Customizing Options
A9006107 DATEC-COMPACT M

A9006107

DATEC-COMPACT M 2-part compact hand-held enclosure with sealing and with an ergonomic, robust design. Secure grip through finger recess in the bottom part. Recessed user area to protect the operating elements. Attachment domes for PCBs and components in the top and bottom parts.

Version Without battery compartment

Supply Top and bottom part, assembly kit

Close

A9006107

DATEC-COMPACT M ASA+PC-FR (UL 94 V-0)
off-white RAL 9002
6.77″x3.62″x1.54″
IP 65
A9006117 DATEC-COMPACT M

A9006117

DATEC-COMPACT M 2-part compact hand-held enclosure with an ergonomic, robust design. Secure grip through finger recess in the bottom part. Recessed user area to protect the operating elements. Attachment domes for PCBs and components in the top and bottom parts.

Version Without battery compartment

Supply Top and bottom part, assembly kit

Close

A9006117

DATEC-COMPACT M ASA+PC-FR (UL 94 V-0)
off-white RAL 9002
6.77″x3.62″x1.54″
IP 41
A9006207 DATEC-COMPACT M

A9006207

DATEC-COMPACT M 3-part compact hand-held enclosure with sealing and with an ergonomic, robust design. Ideal for miniaturised electronics applications. Secure grip through finger recess in the bottom part and center of gravity near the body. With a battery compartment, accessible from the outside, for 3 x 1.5 V AA batteries. Recessed user area to protect the operating elements. Attachment domes for PCBs and components in the top and bottom parts.

Version With battery compartment 3 x AA

Supply Top and bottom part, battery compartment lid, assembly kit

Close

A9006207

DATEC-COMPACT M ASA+PC-FR (UL 94 V-0)
off-white RAL 9002
6.77″x3.62″x1.54″
IP 65
A9006217 DATEC-COMPACT M

A9006217

DATEC-COMPACT M 3-part compact hand-held enclosure with an ergonomic, robust design. Ideal for miniaturised electronics applications. Secure grip through finger recess in the bottom part and center of gravity near the body. With a battery compartment, accessible from the outside, for 3 x 1.5 V AA batteries. Recessed user area to protect the operating elements. Attachment domes for PCBs and components in the top and bottom parts.

Version With battery compartment 3 x AA

Supply Top and bottom part, battery compartment lid, assembly kit

Close

A9006217

DATEC-COMPACT M ASA+PC-FR (UL 94 V-0)
off-white RAL 9002
6.77″x3.62″x1.54″
IP 41

Customizing options for A9106627

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Color
off-white RAL 9002
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
75 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
