A9106628 Holder M

A9106628

Holder M

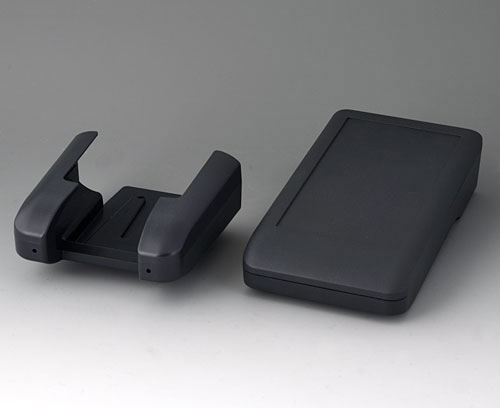

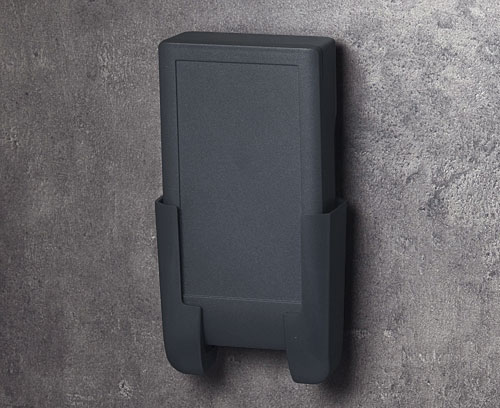

Special holder for DATEC-COMPACT M for the secure storage of wired and wireless mobile devices. With large recess for plug-in connections. The holder is mounted on the wall or on other components with standard screws with head diameters of 0.217" to 0.276".

Supply

1 holder

  • To be used for
  • View Customizing Options
A9006108 DATEC-COMPACT M

A9006108

DATEC-COMPACT M 2-part compact hand-held enclosure with sealing and with an ergonomic, robust design. Secure grip through finger recess in the bottom part. Recessed user area to protect the operating elements. Attachment domes for PCBs and components in the top and bottom parts.

Version Without battery compartment

Supply Top and bottom part, assembly kit

Close

A9006108

DATEC-COMPACT M
product added to your list
ASA+PC-FR (UL 94 V-0)
lava
6.77″x3.62″x1.54″
IP 65
A9006118 DATEC-COMPACT M

A9006118

DATEC-COMPACT M 2-part compact hand-held enclosure with an ergonomic, robust design. Secure grip through finger recess in the bottom part. Recessed user area to protect the operating elements. Attachment domes for PCBs and components in the top and bottom parts.

Version Without battery compartment

Supply Top and bottom part, assembly kit

Close

A9006118

DATEC-COMPACT M
product added to your list
ASA+PC-FR (UL 94 V-0)
lava
6.77″x3.62″x1.54″
IP 41
A9006208 DATEC-COMPACT M

A9006208

DATEC-COMPACT M 3-part compact hand-held enclosure with sealing and with an ergonomic, robust design. Ideal for miniaturised electronics applications. Secure grip through finger recess in the bottom part and center of gravity near the body. With a battery compartment, accessible from the outside, for 3 x 1.5 V AA batteries. Recessed user area to protect the operating elements. Attachment domes for PCBs and components in the top and bottom parts.

Version With battery compartment 3 x AA

Supply Top and bottom part, battery compartment lid, assembly kit

Close

A9006208

DATEC-COMPACT M
product added to your list
ASA+PC-FR (UL 94 V-0)
lava
6.77″x3.62″x1.54″
IP 65
A9006218 DATEC-COMPACT M

A9006218

DATEC-COMPACT M 3-part compact hand-held enclosure with an ergonomic, robust design. Ideal for miniaturised electronics applications. Secure grip through finger recess in the bottom part and center of gravity near the body. With a battery compartment, accessible from the outside, for 3 x 1.5 V AA batteries. Recessed user area to protect the operating elements. Attachment domes for PCBs and components in the top and bottom parts.

Version With battery compartment 3 x AA

Supply Top and bottom part, battery compartment lid, assembly kit

Close

A9006218

DATEC-COMPACT M
product added to your list
ASA+PC-FR (UL 94 V-0)
lava
6.77″x3.62″x1.54″
IP 41

Customizing options for A9106628

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
75 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
