A9079209

DATEC-CONTROL L, Vers. II

Convenient hand held case suitable for the mounting of changeable battery compartments (battery compartment and holder as accessory). Large display area for mounting graphic displays. Space for PCMCIA-slots under the battery compartment.

Version

With maximum sized cutout for digital displays

Supply

Top and base part,end cover, locking pins, mounting set with screws for the case and PCB, rubber feet

2D PDF Drawing
3D PDF View
3D/2D download

Generate Your PDF Datasheet for A9079209

Please select the product details you would like to include in the PDF.

Add to my basket Add to my basket Add to my basket
product added to your basket
continue or open your product basket

Accessory "battery"

A9178118 Battery compartment holder

A9178118

Battery compartment holder Enables the mounting of a battery compartment in the station and case. For mounting the battery compartment holder there are two positions possible-according to local requirements and configuration of components.

Supply 1 battery compartment holder, set of battery clips for connection to versions I and II battery compartment, 2 fixing screws

A9178118

Battery compartment holder
product added to your basket

volcano
A9178128 Battery compartment, M/L, 4 x AA

A9178128

Battery compartment, M/L, 4 x AA Used in combination with the battery compartment holder in the case and in the station. Secure snap-in machanism.

Version For 4 mignon cells 1.5 V (AA)

Supply 1 battery compartment, 1 battery lid, 1 set of battery clips, 1 screw

A9178128

Battery compartment, M/L, 4 x AA
product added to your basket

volcano
A9178158 Battery compartment, M/L, 5 x AA

A9178158

Battery compartment, M/L, 5 x AA Used in combination with the battery compartment holder in the case and in the station. Secure snap-in machanism.

Version For 5 mignon cells 1.5 V (AA)

Supply 1 battery compartment, 1 battery lid, 1 set of battery clips, 1 screw

A9178158

Battery compartment, M/L, 5 x AA
product added to your basket

volcano
A9178178 End plate for electronic area, Vers. I

A9178178

End plate for electronic area, Vers. I Simply inserted into the guides in the bottom part.

Version To close the electronic area

Supply 1 end plate for electronic area

A9178178

End plate for electronic area, Vers. I
product added to your basket

volcano
A9178188 End plate for electronic area, Vers. II

A9178188

End plate for electronic area, Vers. II Simply inserted into the guides in the bottom part.

Version For use with a PCMCIA-card type I

Supply 1 end plate for electronic area

A9178188

End plate for electronic area, Vers. II
product added to your basket

volcano
A9178198 End plate for electronic area, Vers. III

A9178198

End plate for electronic area, Vers. III Simply inserted into the guides in the bottom part.

Version For use with a PCMCIA-card type I

Supply 1 end plate for electronic area

A9178198

End plate for electronic area, Vers. III
product added to your basket

volcano

Accessory "station"

A9178007 Contacts, male

A9178007

Contacts, male Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.

Supply 1 contact

A9178007

Contacts, male
product added to your basket
gold-plated
A9178118 Battery compartment holder

A9178118

Battery compartment holder Enables the mounting of a battery compartment in the station and case. For mounting the battery compartment holder there are two positions possible-according to local requirements and configuration of components.

Supply 1 battery compartment holder, set of battery clips for connection to versions I and II battery compartment, 2 fixing screws

A9178118

Battery compartment holder
product added to your basket

volcano
A9178128 Battery compartment, M/L, 4 x AA

A9178128

Battery compartment, M/L, 4 x AA Used in combination with the battery compartment holder in the case and in the station. Secure snap-in machanism.

Version For 4 mignon cells 1.5 V (AA)

Supply 1 battery compartment, 1 battery lid, 1 set of battery clips, 1 screw

A9178128

Battery compartment, M/L, 4 x AA
product added to your basket

volcano
A9178139 Station, Vers. I

A9178139

Station, Vers. I Ergonomically inclined position allows convenient reading of data. Offers additional space for charging electronics, another battery compartment, slots, printing devise etc.

Version Desktop version

Supply 1 station, 1 bottom plate, fixing screws for the bottom plate and PCB, covers, non-slip pads

A9178139

Station, Vers. I
product added to your basket

black RAL 9005
A9178158 Battery compartment, M/L, 5 x AA

A9178158

Battery compartment, M/L, 5 x AA Used in combination with the battery compartment holder in the case and in the station. Secure snap-in machanism.

Version For 5 mignon cells 1.5 V (AA)

Supply 1 battery compartment, 1 battery lid, 1 set of battery clips, 1 screw

A9178158

Battery compartment, M/L, 5 x AA
product added to your basket

volcano
A9178169 Station, Vers. II

A9178169

Station, Vers. II Ergonomically inclined position allows convenient reading of data. Offers additional space for charging electronics, another battery compartment, slots, printing devise etc.

Version Wall-mounting

Supply 1 station, 1 bottom plate, fixing screws for the bottom plate and PCB, covers, locking mechanism

A9178169

Station, Vers. II
product added to your basket

black RAL 9005

Accessory "protection"

A9179001 Display window L

A9179001

Display window L The display window protects the installed display and achieves protection class within the display area. Without printing.

Supply 1 display window, 1 adhesive foil

A9179001

Display window L
product added to your basket

clear

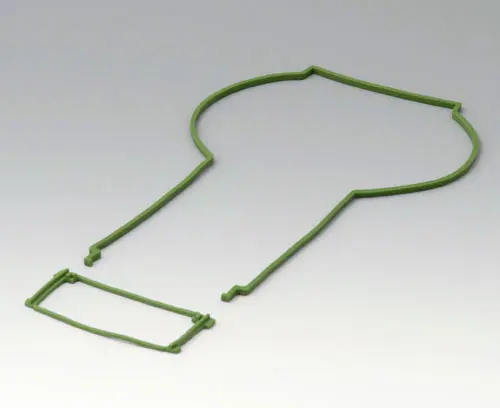

A9179006 Sealing kit L

A9179006

Sealing kit L Application: for increasing the protection class, of DATEC-CONTROL L.

Supply 1 sealing kit

A9179006

Sealing kit L
product added to your basket
A9179108 Protector L

A9179108

Protector L Special protector for DATEC-CONTROL L. Absorbs shocks and so protects the electronics in the case. Ideal also as a surface protector for peripheral equipment, appliances etc. Simple assembly through the use of a special elastomer.

Version without hanging belt.

Supply 1 protector

A9179108

Protector L
product added to your basket

volcano

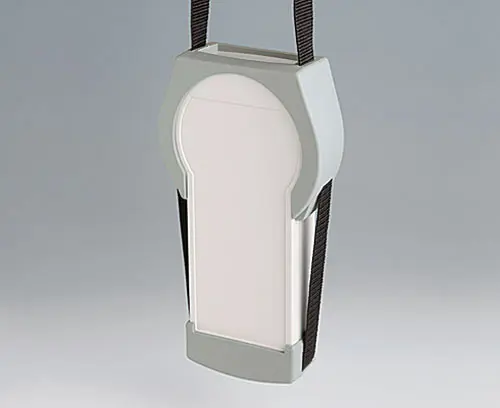

A9179208 Protector L

A9179208

Protector L Special protector for DATEC-CONTROL L. Absorbs shocks and so protects the electronics in the case. Ideal also as a surface protector for peripheral equipment, appliances etc. Simple assembly through the use of a special elastomer.

Version with shoulder strap (approx. 1800 x 20 mm, black, with push-in buckle).

Supply 1 protector, 1 shoulder strap

A9179208

Protector L
product added to your basket

volcano

Accessory "wall/holder"

A9226119 Wall suspension element

A9226119

Wall suspension element Two claps, which encompass the case laterally will be locked with the bars. The adjustment of the corresponding width will be carried out by a locking solution at the holder's rear. Finally it can be mounted to the wall.

Supply 2 claps, 2 bars, 1 holder

A9226119

Wall suspension element
product added to your basket

black RAL 9005

Accessory

A9178008 Contacts, female

A9178008

Contacts, female Application: 6-pole version for transfer of the charging current and the data exchange. See assembly instruction.

Supply 1 contact

A9178008

Contacts, female
product added to your basket
gold-plated

Customizing options for A9079209

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

Material

Protection class

Necessary accessories: sealing kit, display window (set with adhesive foil)
Color
black RAL 9005
Standards
RoHS compliant
REACH compliant
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Length
10.472″
266 mm
Width
5.669″
144 mm
Height
2.362″
60 mm
PCB length, base
9.055″
230 mm
PCB width, base
3.150″
80 mm
PCB length, top
4.528″
115 mm
PCB width, top
3.071″
78 mm
Display length, base
2.598″
66 mm
Display width, base
3.898″
99 mm
Keypad length
8.264″
209.9 mm
Keypad width
3.063″
77.8 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Assembly Instructions (Part)

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

External Accessory - miscellaneous

Weight/1 part
272 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany

Customizing service: We can modify our enclosures to meet your specific requirements. We will deliver your enclosures fully finished and ready to use. All you have to do is install your equipment inside. View customizing options for A9079209 and don't forget to request a quotation!
