Accessories for enclosures
B4016671
Cover strip M / L
For covering the area with the screws when using the convex cover. Simply snap-in. Color coding possible, e.g. by inserting an individual colored paper print. For the complete assembly there are 2 cover strips necessary.
Supply1 cover strip
Generate Your PDF Datasheet for B4016671
Please select the product details you would like to include in the PDF.
Add to my basket
B4016117

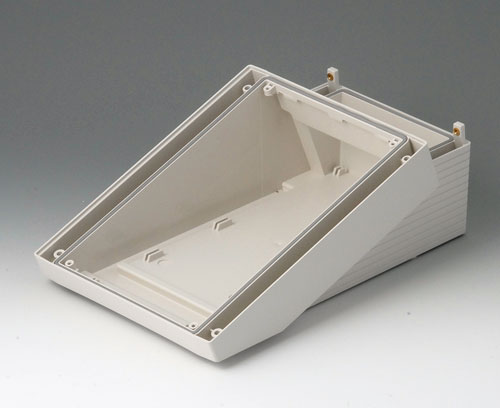

DATEC-TERMINAL M, Vers. I
Basic case with terminal compartment. Ergonomically inclined operating area can be used with front panel, profile plate or cover. Suitable to accommodate Eurocards 100 x 160 mm.
Version Basic housing, unmachined
Supply 1 basic housing, 4 screws, 4 non slip feet, sealing kit
B4016117
DATEC-TERMINAL M, Vers. Iproduct added to your basket
off-white RAL 9002
6.61″x10.71″x3.98″
B4016217

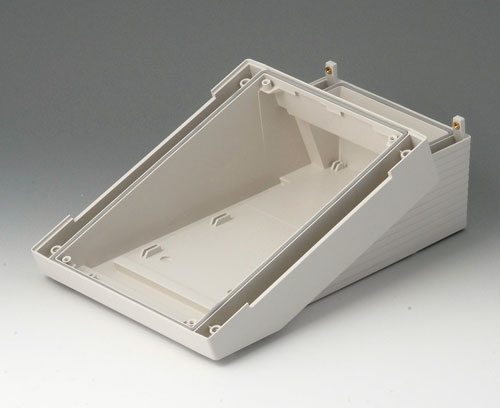

DATEC-TERMINAL M, Vers. II
Basic enclosure with terminal compartment. Ergonomically inclined operating area can be used with a cover and the MH front panel, separate articles.
Depending on requirements, there is a choice of different cover designs to protect the operating and display elements. The quick-action lock and the hinge guarantee good and easy accessibility for all setup and maintenance work. The opening side is on the right for wall-mounted enclosures and on the left for table-top enclosures.
Suitable for the installation of Eurocards 100 x 160 mm.
Depending on requirements, there is a choice of different cover designs to protect the operating and display elements. The quick-action lock and the hinge guarantee good and easy accessibility for all setup and maintenance work. The opening side is on the right for wall-mounted enclosures and on the left for table-top enclosures.
Suitable for the installation of Eurocards 100 x 160 mm.
Version Machined for assembly of hinge and quick-action lock
Supply 1 basic housing, 4 screws, 4 non slip feet, sealing kit, with hinge and quick-action lock
B4016217
DATEC-TERMINAL M, Vers. IIproduct added to your basket
off-white RAL 9002
6.61″x10.71″x3.98″
B4016317

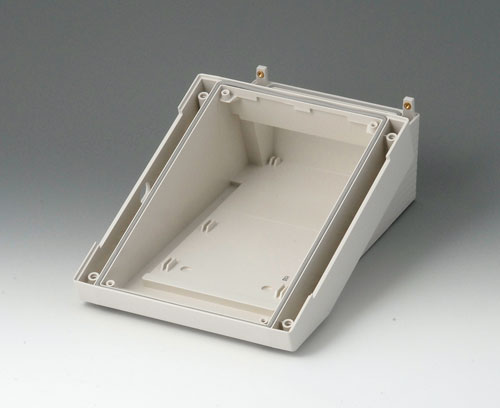

DATEC-TERMINAL M, Vers. III
Basic enclosure with terminal compartment. Ergonomically inclined operating area can be used with a cover and the MH front panel, separate articles.
Depending on requirements, there is a choice of different cover designs to protect the operating and display elements. The quick-action lock and the keylock prevent unauthorised access to the operating and display elements. When the enclosure is opened, a hinge secures the cover and allows good accessibility for all setup and maintenance work. The opening side is on the right for wall-mounted enclosures and on the left for table-top enclosures. All locks have identical keys.
Suitable for the installation of Eurocards 100 x 160 mm.
Depending on requirements, there is a choice of different cover designs to protect the operating and display elements. The quick-action lock and the keylock prevent unauthorised access to the operating and display elements. When the enclosure is opened, a hinge secures the cover and allows good accessibility for all setup and maintenance work. The opening side is on the right for wall-mounted enclosures and on the left for table-top enclosures. All locks have identical keys.
Suitable for the installation of Eurocards 100 x 160 mm.
Version Machined for assembly of hinge, quick-action lock and keylock
Supply 1 basic housing, 4 screws, 4 non slip feet, sealing kit, with hinge, quick-action lock and keylock
B4016317
DATEC-TERMINAL M, Vers. IIIproduct added to your basket
off-white RAL 9002
6.61″x10.71″x3.98″
B4016631
Cover M, convex
Suitable for DATEC-TERMINAL M, basic housing vers. I, II, III. For protecting the electronics. Recessed operating area (0.039") for protecting the membrane keyboard. With screw pillars for PCB fixing. Cover strips in transparent or off-white necessary as separate article. Fixing of vers. I from the front by 4 screws.
Supply 1 cover, assembly kit
B4016631
Cover M, convexproduct added to your basket
transparent
6.61″x8.66″x1.14″
B4016637
Cover M, convex
Suitable for DATEC-TERMINAL M, basic housing vers. I, II, III. For protecting the electronics. Recessed operating area (0.039") for protecting the membrane keyboard. With screw pillars for PCB fixing. Cover strips in transparent or off-white necessary as separate article. Fixing of vers. I from the front by 4 screws.
Supply 1 cover, assembly kit
B4016637
Cover M, convexproduct added to your basket
off-white RAL 9002
6.61″x8.66″x1.14″
B4030117

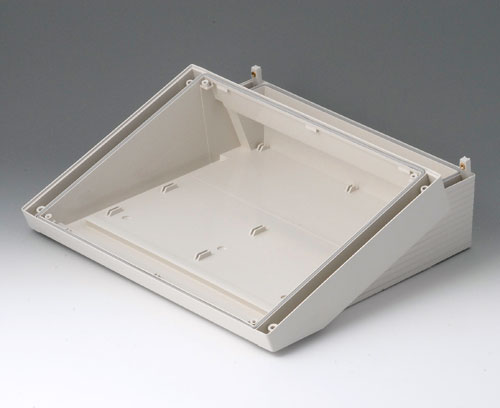

DATEC-TERMINAL L, Vers. I
Basic case with terminal compartment. Ergonomically inclined operating area can be used with front panel, profile plate or cover. Suitable to accommodate Eurocards.
Version Basic housing, unmachined
Supply 1 basic housing, 4 screws, 4 non slip feet, sealing kit
B4030117
DATEC-TERMINAL L, Vers. Iproduct added to your basket
off-white RAL 9002
11.89″x10.71″x3.98″
B4030217

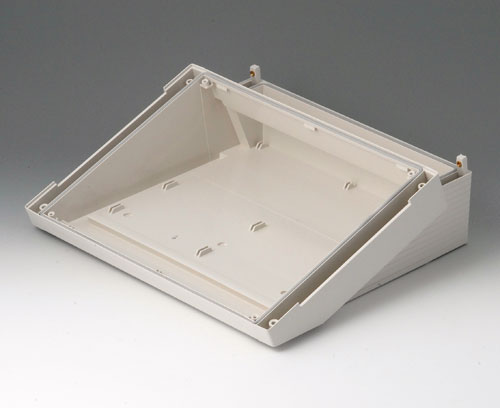

DATEC-TERMINAL L, Vers. II
Basic case with terminal compartment. Ergonomically inclined operating area can be used with front panel, profile plate or cover. Suitable to accommodate Eurocards.
Version Machined for assembly of hinge and quick-action lock
Supply 1 basic housing, 4 screws, 4 non slip feet, sealing kit, with hinge and quick-action lock
B4030217
DATEC-TERMINAL L, Vers. IIproduct added to your basket
off-white RAL 9002
11.89″x10.71″x3.98″
B4030317

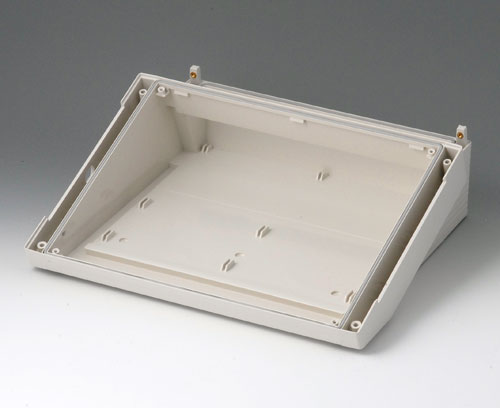

DATEC-TERMINAL L, Vers. III
Basic case with terminal compartment. Ergonomically inclined operating area can be used with front panel, profile plate or cover. Suitable to accommodate Eurocards.
Version Machined for assembly of hinge, quick-action lock and keylock
Supply 1 basic housing, 4 screws, 4 non slip feet, sealing kit, with hinge, quick-action lock and keylock
B4030317
DATEC-TERMINAL L, Vers. IIIproduct added to your basket
off-white RAL 9002
11.89″x10.71″x3.98″
B4030631
Cover L, convex
Suitable for DATEC-TERMINAL L, basic housing vers. I, II, III. For protecting the electronics. Recessed operating area (0.039") for protecting the membrane keyboard. With screw pillars for PCB fixing. Cover strips in transparent or off-white necessary as separate article. Fixing of vers. I from the front by 4 screws.
Supply 1 cover, assembly kit
B4030631
Cover L, convexproduct added to your basket
transparent
11.89″x8.66″x1.14″
B4030637
Cover L, convex
Suitable for DATEC-TERMINAL L, basic housing vers. I, II, III. For protecting the electronics. Recessed operating area (0.039") for protecting the membrane keyboard. With screw pillars for PCB fixing. Cover strips in transparent or off-white necessary as separate article. Fixing of vers. I from the front by 4 screws.
Supply 1 cover, assembly kit
B4030637
Cover L, convexproduct added to your basket
off-white RAL 9002
11.89″x8.66″x1.14″
Customizing options for B4016671
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
9 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Germany
Customizing service: We can modify our enclosures to meet your specific requirements. We will deliver your enclosures fully finished and ready to use. All you have to do is install your equipment inside. View customizing options for B4016671 and don't forget to request a quotation!
