B4026637 Cover SL, convex

B4026637

Cover SL, convex

Suitable for DATEC-TERMINAL SL. For protecting the electronics. Recessed operating area (0.039") for protecting the membrane keyboard. With screw pillars for PCB fixing. Cover strips in transparent or off-white necessary as separate article. Fixing from the front by 4 screws.

Supply

1 cover, assembly kit

  • Components/Accessories
  • View Customizing Options

System components to complete

B4026117 DATEC-TERMINAL SL

B4026117

DATEC-TERMINAL SL Basic case with large operating area. Ergonomically inclined operating area can be used with profile plate, cover or front panel. Suitable to accommodate double Eurocards.

Supply 1 basic housing, 4 screws, 4 non slip feet, 1 sealing

Close

B4026117

DATEC-TERMINAL SL
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
10.39″x7.09″x3.39″
IP 54 opt.

Accessory to complete

B4113671 Cover strip S / SL

B4113671

Cover strip S / SL For covering the area with the screws when using the convex cover. Simply snap-in. Color coding possible, e.g. by inserting an individual colored paper print. For the complete assembly there are 2 cover strips necessary.

Supply 1 cover strip

Close

B4113671

Cover strip S / SL
product added to your basket
PC (UL 94 V-0)
transparent

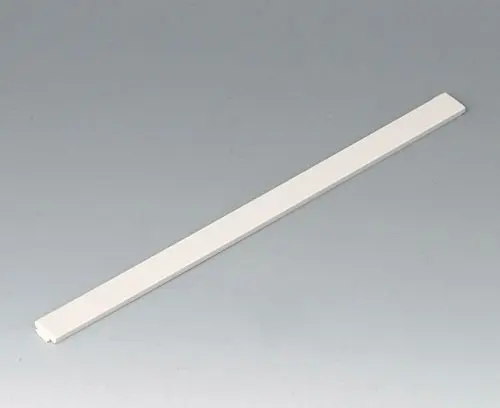

B4113677 Cover strip S / SL

B4113677

Cover strip S / SL For covering the screwing area when using the convex cover. Simply snap-in. For the complete assembly there are 2 cover strips necessary.

Supply 1 cover strip

Close

B4113677

Cover strip S / SL
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002

Customizing options for B4026637

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Color
off-white RAL 9002
Width
10.354″
263 mm
Depth
7.087″
180 mm
Height
1.102″
28 mm
PCB length, base
6.772″
172 mm
PCB width, base
9.331″
237 mm
Keypad length
6.283″
159.6 mm
Keypad width
9.094″
231 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
215 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
