B4030617

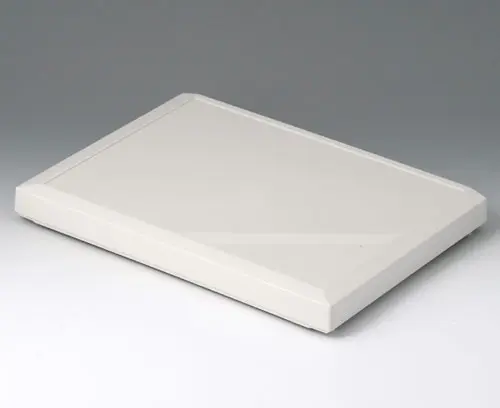

Cover L, flat

Suitable for DATEC-TERMINAL L, basic housing vers. I, II, III. For protecting the electronic. Recessed operating area (0.039") for protecting the membrane keyboard. With screw pillars for PCB fixing. Fixing of vers. I from the rear by 4 screws.

Supply

1 cover, assembly kit

2D PDF Drawing
3D PDF View
3D/2D download

Generate Your PDF Datasheet for B4030617

Please select the product details you would like to include in the PDF.

Add to my basket Add to my basket Add to my basket
product added to your basket
continue or open your product basket
B4030117 DATEC-TERMINAL L, Vers. I

B4030117

DATEC-TERMINAL L, Vers. I Basic case with terminal compartment. Ergonomically inclined operating area can be used with front panel, profile plate or cover. Suitable to accommodate Eurocards.

Version Basic housing, unmachined

Supply 1 basic housing, 4 screws, 4 non slip feet, sealing kit

B4030117

DATEC-TERMINAL L, Vers. I
product added to your basket

off-white RAL 9002
11.89″x10.71″x3.98″
B4030217 DATEC-TERMINAL L, Vers. II

B4030217

DATEC-TERMINAL L, Vers. II Basic case with terminal compartment. Ergonomically inclined operating area can be used with front panel, profile plate or cover. Suitable to accommodate Eurocards.

Version Machined for assembly of hinge and quick-action lock

Supply 1 basic housing, 4 screws, 4 non slip feet, sealing kit, with hinge and quick-action lock

B4030217

DATEC-TERMINAL L, Vers. II
product added to your basket

off-white RAL 9002
11.89″x10.71″x3.98″
B4030317 DATEC-TERMINAL L, Vers. III

B4030317

DATEC-TERMINAL L, Vers. III Basic case with terminal compartment. Ergonomically inclined operating area can be used with front panel, profile plate or cover. Suitable to accommodate Eurocards.

Version Machined for assembly of hinge, quick-action lock and keylock

Supply 1 basic housing, 4 screws, 4 non slip feet, sealing kit, with hinge, quick-action lock and keylock

B4030317

DATEC-TERMINAL L, Vers. III
product added to your basket

off-white RAL 9002
11.89″x10.71″x3.98″

Customizing options for B4030617

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

Material

Color
off-white RAL 9002
Standards
RoHS compliant
REACH compliant
Width
11.890″
302 mm
Depth
8.661″
220 mm
Height
1.142″
29 mm
PCB length, base
8.228″
209 mm
PCB width, base
10.394″
264 mm
Keypad length
7.681″
195.1 mm
Keypad width
10.335″
262.5 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

Weight/1 part
435 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany

Customizing service: We can modify our enclosures to meet your specific requirements. We will deliver your enclosures fully finished and ready to use. All you have to do is install your equipment inside. View customizing options for B4030617 and don't forget to request a quotation!
