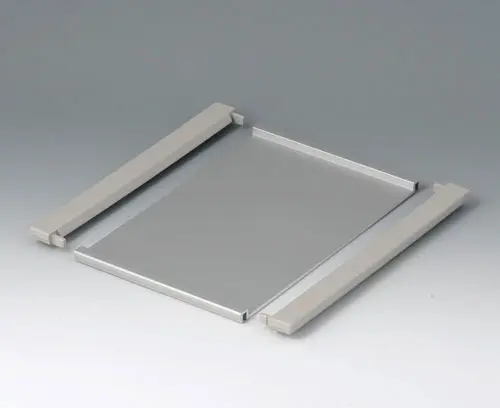

B4116126 Profile plate M

B4116126

Profile plate M

Profile plate M for mounting operating elements of all kinds. Especially designed for the use with membrane keyboards. Recessed area for protecting the operating elements.

Supply

1 profile plate, 4 screws, 2 cover strips

  • To be used for
  • View Customizing Options
B4016117 DATEC-TERMINAL M, Vers. I

B4016117

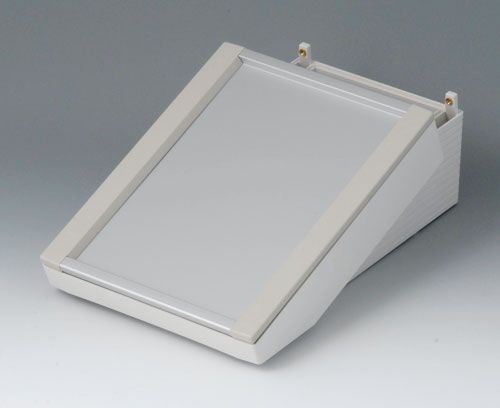

DATEC-TERMINAL M, Vers. I Basic case with terminal compartment. Ergonomically inclined operating area can be used with front panel, profile plate or cover. Suitable to accommodate Eurocards 100 x 160 mm.

Version Basic housing, unmachined

Supply 1 basic housing, 4 screws, 4 non slip feet, sealing kit

Close

B4016117

DATEC-TERMINAL M, Vers. I
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
6.61″x10.71″x3.98″
IP 54 opt.

Customizing options for B4116126

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
Color
Profile plate matt anodized,
Cover strips pebble gray RAL 7032
Width
6.614″
168 mm
Depth
8.661″
220 mm
Height
0.315″
8 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Miscellaneous information

Weight/1 part
253 g
Customs tariff number
(OKW product)
76042990
Country of manufacture
Germany
