B4130147 Wall suspension element L

B4130147

Wall suspension element L

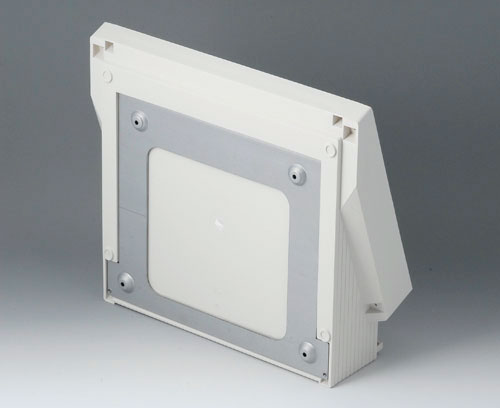

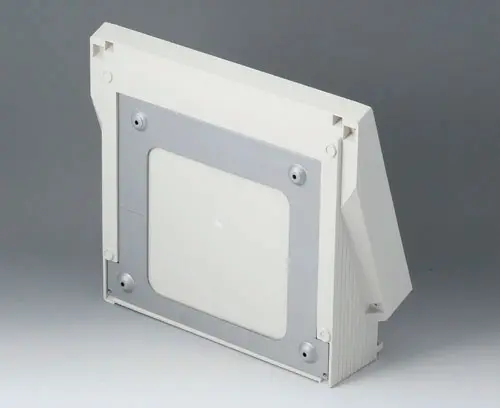

Wall suspension element L for easy and secure fixing of the unit to a wall. Securing by 2 screws in the lateral pocket sections in the terminal compartment.

Supply

1 wall suspension element, 2 screws M3

  • To be used for
  • View Customizing Options
B4030117 DATEC-TERMINAL L, Vers. I

B4030117

DATEC-TERMINAL L, Vers. I Basic case with terminal compartment. Ergonomically inclined operating area can be used with front panel, profile plate or cover. Suitable to accommodate Eurocards.

Version Basic housing, unmachined

Supply 1 basic housing, 4 screws, 4 non slip feet, sealing kit

Close

B4030117

DATEC-TERMINAL L, Vers. I
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
11.89″x10.71″x3.98″
IP 54 opt.
B4030217 DATEC-TERMINAL L, Vers. II

B4030217

DATEC-TERMINAL L, Vers. II Basic case with terminal compartment. Ergonomically inclined operating area can be used with front panel, profile plate or cover. Suitable to accommodate Eurocards.

Version Machined for assembly of hinge and quick-action lock

Supply 1 basic housing, 4 screws, 4 non slip feet, sealing kit, with hinge and quick-action lock

Close

B4030217

DATEC-TERMINAL L, Vers. II
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
11.89″x10.71″x3.98″
IP 54 opt.
B4030317 DATEC-TERMINAL L, Vers. III

B4030317

DATEC-TERMINAL L, Vers. III Basic case with terminal compartment. Ergonomically inclined operating area can be used with front panel, profile plate or cover. Suitable to accommodate Eurocards.

Version Machined for assembly of hinge, quick-action lock and keylock

Supply 1 basic housing, 4 screws, 4 non slip feet, sealing kit, with hinge, quick-action lock and keylock

Close

B4030317

DATEC-TERMINAL L, Vers. III
product added to your list
ABS (UL 94 HB)
off-white RAL 9002
11.89″x10.71″x3.98″
IP 54 opt.

Customizing options for B4130147

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
Color
galvanized
Width
8.425″
214 mm
Height
10.236″
260 mm
Depth
0.472″
12 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
170 g
Customs tariff number
(OKW product)
73269098
Country of manufacture
Germany
