A9094107 DIATEC M

A9094107

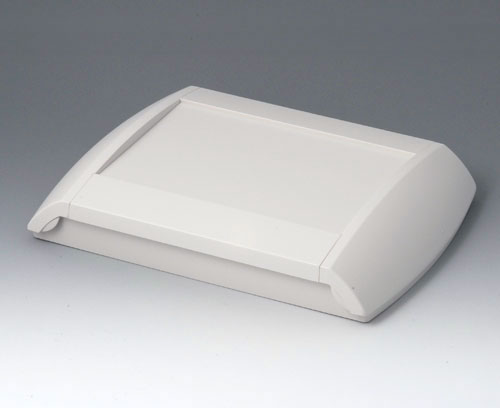

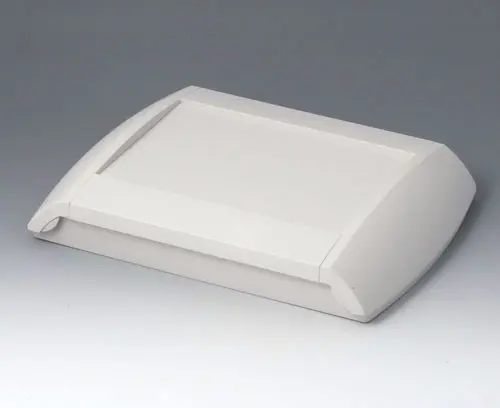

DIATEC M

Four-part case. The bottom part can be fixed directly to the wall, the top part will be assembled by means of screws from the front. 2 side trims close the case. If required, the trims can also be locked, thus preventing unauthorized access. Recessed operating area to protect the membrane keyboard. Fastening pillars for PCBs in bottom and top part. Integrated supports for 2 x AA / 1 x 9 V.

Supply

Bottom and top part, trim left and right side incl. 2 locking elements, assembly kit

  • Components/Accessories
  • View Customizing Options

Accessory "battery"

A9160003 Plug-in contact, 1 x 9 V

A9160003

Plug-in contact, 1 x 9 V Version: Lateral cable exit. Cable length approx. 3.937". Diameter of contacts = 0.224"/0.209".
Application: for a 9 V flat battery.

Supply 1 plug-in contact

Close

A9160003

Plug-in contact, 1 x 9 V
A9190002 Set of battery clips, 2xN/2xAA/2xAAA

A9190002

Set of battery clips, 2xN/2xAA/2xAAA For contacting the batteries.
Note application ART-CASE: only for base suitable (2 x AA).

Supply 1 double contact, 2 single contacts

Close

A9190002

Set of battery clips, 2xN/2xAA/2xAAA Steel
tin-plated

Accessory "protection"

A9194121 Hinged lid M

A9194121

Hinged lid M Hinged lid for covering the dialog zone. 2 mounting holes ø 0.165" necessary.

Supply 1 hinged lid, assembly kit

Close

A9194121

Hinged lid M PC (UL 94 V-0)
translucent
A9194127 Hinged lid M

A9194127

Hinged lid M Hinged lid for covering the dialog zone. 2 mounting holes ø 0.165" necessary.

Supply 1 hinged lid, assembly kit

Close

A9194127

Hinged lid M ABS (UL 94 HB)
off-white RAL 9002
A9194131 Hinged lid M

A9194131

Hinged lid M Hinged lid for covering the dialog zone. 2 mounting holes ø 0.165" necessary.

Supply 1 hinged lid, assembly kit

Close

A9194131

Hinged lid M PC (UL 94 V-0)
clear

Accessory "screws"

A0306031 Self-tapping screws 0.118" x 0.236" (PZ1)

A0306031

Self-tapping screws 0.118" x 0.236" (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.
For correct assembly please note the tightening torque depends on enclosure type. View list (.xls) >>

Supply 1 self-tapping screw

Close

A0306031

Self-tapping screws 0.118" x 0.236" (PZ1)

Accessory

A9194007 Slot-in panel

A9194007

Slot-in panel The slot-in panel can be used as interior partition or separation, for example to protect the electronics when changing batteries. Integrated guide ridges, max. 2 slot-in panels each case.

Supply 1 slot-in panel

Close

A9194007

Slot-in panel ABS (UL 94 HB)
off-white RAL 9002
6.14″x1.18″x0.12″
A9212330 Anti-slide feet 0.472" x 0.138"

A9212330

Anti-slide feet 0.472" x 0.138" Rubber feet with self-adhesive foil facilitate a secure position.

Supply 2 rubber feet

Close

A9212330

Anti-slide feet 0.472" x 0.138" transparent

Customizing options for A9094107

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Protection class
Color
off-white RAL 9002
Width
10.630″
270 mm
Height
1.890″
48 mm
Depth
7.874″
200 mm
PCB length, base
7.087″
180 mm
PCB width, base
7.087″
180 mm
PCB length, top
7.087″
180 mm
PCB width, top
7.087″
180 mm
Keypad length
5.024″
127.6 mm
Keypad width
7.071″
179.6 mm
Please take the dimensions from current parts. These are subject to material-specific manufacturing tolerances.

Assembly Instructions (Part)

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Miscellaneous information

Weight/1 part
412 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
