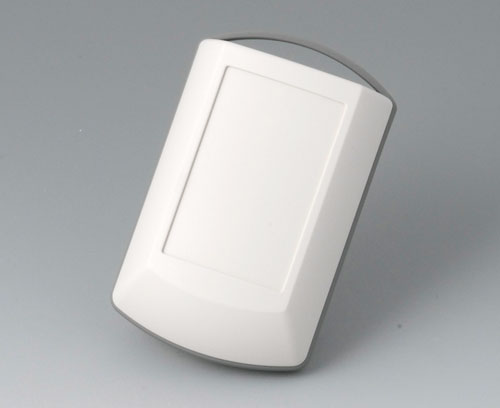

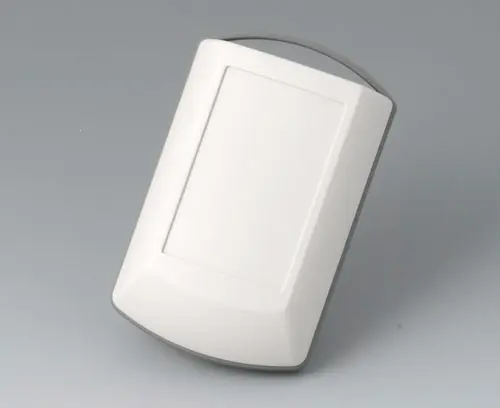

B7040217 ERGO-CASE XS

B7040217

ERGO-CASE XS

Three-part enclosure in ergonomic design. Easy to carry. Carrying strap and hand strap as accessories.TPE ring for a pleasant touch sensation. Fastening pillars and fixing supports for PCBs and integrated parts in the bottom and top part. Recessed operating area for the protection of the membrane keyboard.

Version

TPE ring with one eyelet hole

Supply

top and bottom part, ring, assembly kit

  • Components/Accessories
  • View Customizing Options

Accessory "carrying"

B9100063 Carrying strap, textile lanyard

B9100063

Carrying strap, textile lanyard Textile lanyard with loop attachment.

ATTTENTION, PART TO BE DISCONTINUED:
The article is only available in limited quantities. Please ask for it!

Supply 1 lanyard

Close

B9100063

Carrying strap, textile lanyard
product added to your basket
black
33.86″
B9100073 Carrying strap, textile lanyard

B9100073

Carrying strap, textile lanyard Textile lanyard with snap safety clip.

Supply 1 lanyard

Close

B9100073

Carrying strap, textile lanyard
product added to your basket
black
35.98″x0.63″

Customizing options for B7040217

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
ABS (UL 94 HB)
Bottom and top part
TPE
Intermediate ring
Protection class
Color
Bottom and top part off-white RAL 9002,
Intermediate ring volcano
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Length
3.228″
82 mm
Width
2.205″
56 mm
Height
0.945″
24 mm
PCB length, base
1.890″
48 mm
PCB width, base
1.772″
45 mm
PCB length, top
2.087″
53 mm
PCB width, top
1.575″
40 mm
Keypad length
2.047″
52 mm
Keypad width
1.303″
33.1 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
26 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
