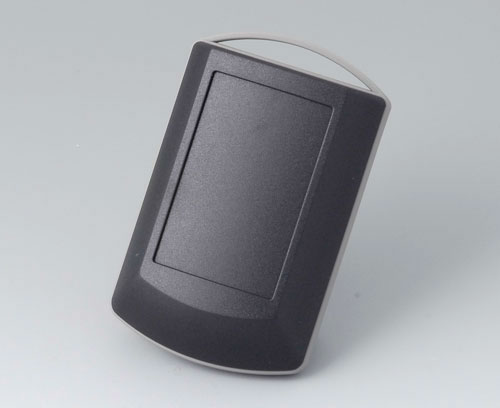

B7040219 ERGO-CASE XS

B7040219

ERGO-CASE XS

Three-part enclosure in ergonomic design. Easy to carry. Carrying strap and hand strap as accessories.TPE ring for a pleasant touch sensation. Fastening pillars and fixing supports for PCBs and integrated parts in the bottom and top part. Recessed operating area for the protection of the membrane keyboard.

Version

TPE ring with one eyelet hole

Supply

top and bottom part, ring, assembly kit

  • Components/Accessories
  • View Customizing Options

Accessory "carrying"

B9100043 Hand strap, woven

B9100043

Hand strap, woven Without quick-action lock.

Supply 1 hand strap

Close

B9100043

Hand strap, woven
product added to your list
black
7.87″
B9100053 Carrying strap, textile

B9100053

Carrying strap, textile With safety closure.

Supply 1 collar

Close

B9100053

Carrying strap, textile
product added to your list
black
35.43″x0.59″
B9100063 Carrying strap, textile

B9100063

Carrying strap, textile Without quick-action lock.

Supply 1 carrying strap

Close

B9100063

Carrying strap, textile
product added to your list
black
33.86″

Customizing options for B7040219

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
ABS (UL 94 HB)
Bottom and top part
SEBS (TPE)
Intermediate ring
Protection class
Color
Bottom and top part black RAL 9005,
Intermediate ring volcano
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Length
3.228″
82 mm
Width
2.205″
56 mm
Height
0.945″
24 mm
PCB length, base
1.890″
48 mm
PCB width, base
1.772″
45 mm
PCB length, top
2.087″
53 mm
PCB width, top
1.575″
40 mm
Keypad length
2.047″
52 mm
Keypad width
1.303″
33.1 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Miscellaneous information

Weight/1 part
26 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
