B7040237

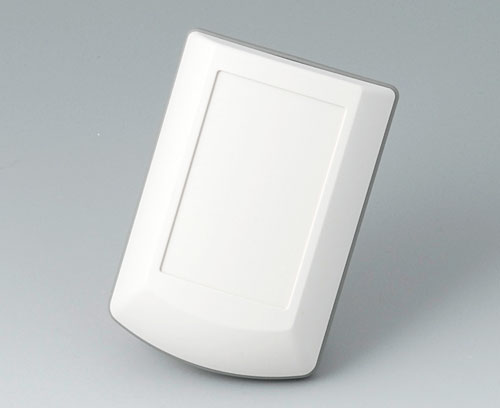

ERGO-CASE XS

Three-part enclosure in ergonomic design. TPE ring for a pleasant touch sensation. Fastening pillars and fixing supports for PCBs and integrated parts in the bottom and top part. Recessed operating area for the protection of the membrane keyboard.

Version

TPE ring without eyelet hole

Supply

top and bottom part, ring, assembly kit

2D PDF Drawing
3D PDF View
3D/2D download

Generate Your PDF Datasheet for B7040237

Please select the product details you would like to include in the PDF.

Add to my basket Add to my basket Add to my basket
product added to your basket
continue or open your product basket

Customizing options for B7040237

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

Material

Bottom and top part

Intermediate ring
Protection class
Color
Bottom and top part off-white RAL 9002,
Intermediate ring volcano
Standards
RoHS compliant
REACH compliant
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Length
3.228″
82 mm
Width
2.205″
56 mm
Height
0.945″
24 mm
PCB length, base
1.890″
48 mm
PCB width, base
1.772″
45 mm
PCB length, top
2.087″
53 mm
PCB width, top
1.575″
40 mm
Keypad length
2.047″
52 mm
Keypad width
1.303″
33.1 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

Weight/1 part
26 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany

Customizing service: We can modify our enclosures to meet your specific requirements. We will deliver your enclosures fully finished and ready to use. All you have to do is install your equipment inside. View customizing options for B7040237 and don't forget to request a quotation!
