C7116087 Standard DIN rail, Type TH 15

C7116087

Standard DIN rail, Type TH 15

Standard DIN-rail in accordance with DIN EN 60715, 0.591" x 0.217". For mounting terminal blocks and components in the enclosure.

Supply

1 standard DIN rail TH 15

  • Components/Accessories
  • View Customizing Options

System components to complete

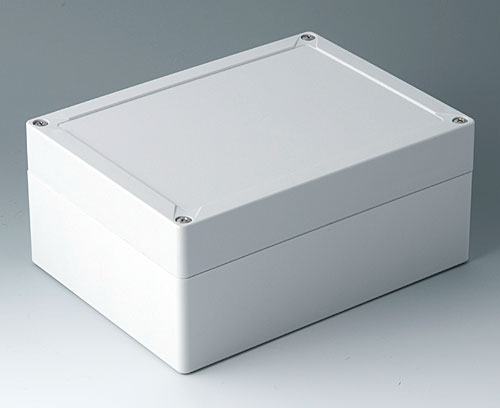

C7021071 IN-BOX

C7021071

IN-BOX Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area.

Supply 1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration

Close

C7021071

IN-BOX
product added to your list
ABS (UL 94 HB)
light gray RAL 7035
7.95″x5.98″x3.54″
IP 66, IP 67, IK 07

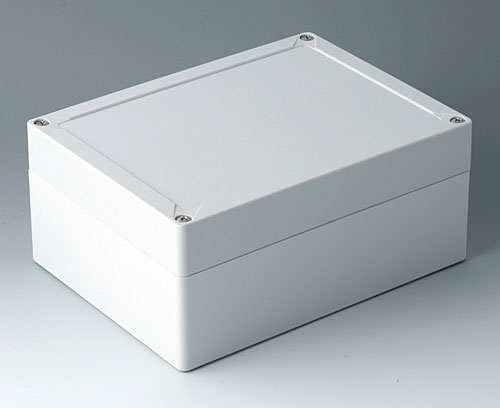

C7021072 IN-BOX

C7021072

IN-BOX Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area.

Supply 1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration

Close

C7021072

IN-BOX
product added to your list
PC
light gray RAL 7035
7.95″x5.98″x3.54″
IP 66, IP 67, IK 08

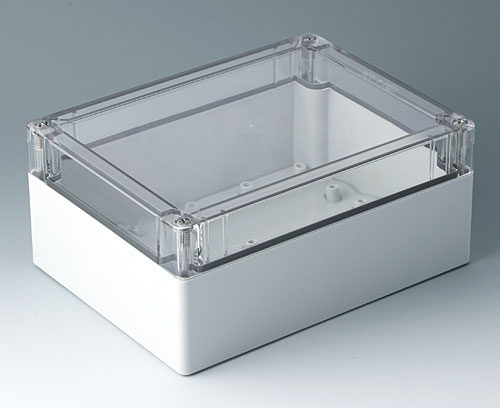

C7021074 IN-BOX

C7021074

IN-BOX Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area.

Supply 1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration

Close

C7021074

IN-BOX
product added to your list
ABS/PC (UL 94 HB)
light gray RAL 7035
7.95″x5.98″x3.54″
IP 66, IP 67, IK 07
C7021075 IN-BOX

C7021075

IN-BOX Two-piece plastic enclosure with sealing foamed into the top part. Recessed panel to protect membrane keyboards and design foils. Attachment domes for DIN rails, PCBs and mounting plates. Rational stainless steel quick-action lock outside the sealing area.

Supply 1 bottom and top part each with sealing, assembly kit incl. cover retention and 4 self-tapping screws for installation configuration

Close

C7021075

IN-BOX
product added to your list
PC
light gray RAL 7035
7.95″x5.98″x3.54″
IP 66, IP 67, IK 08

Accessory "screws"

C7100167 Screw 0.154" x 0.354"

C7100167

Screw 0.154" x 0.354" For fitting standard DIN rails, mounting plates, PCBs, components etc.

Supply 1 self-tapping screw

Close

C7100167

Screw 0.154" x 0.354"
product added to your list

Customizing options for C7116087

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Purchasing Data
Material
Standards
Length
6.614″
168 mm
Width
0.591″
15 mm
Height
0.217″
5.5 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
26 g
Customs tariff number
(OKW product)
72287010
Country of manufacture
Germany
