Accessories for enclosures
B9004306

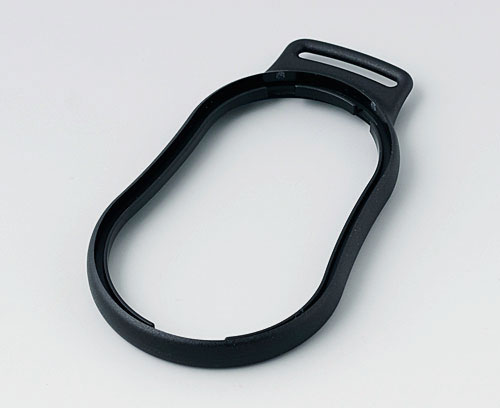

Intermediate ring DM
Assembly unit: simply insert the intermediate ring between bottom and top part and screw the case together.
Supply1 intermediate ring DM
2D PDF Drawing
3D PDF View
3D/2D download
3D/2D download
Generate Your PDF Datasheet for B9004306
Please select the product details you would like to include in the PDF.
Add to my basket
System components to complete
B9004906
Bottom and top part DM
Assembly unit: Modern, flat styling. Easy to carry. Recessed operating area for membrane keyboards. Fixing supports for PCBs/components in the case bottom. Intermediate ring DM as separate article necessary.
Supply 1 top and bottom part DM, 1 self-tapping screw
B9004906
Bottom and top part DMproduct added to your basket
black RAL 9005
2.76″x1.73″x0.63″
Accessory "carrying"
A9164001
Key ring
Version: diameter = 0.807".
Supply 1 key ring
A9164001
Key ringproduct added to your basket
nickel-plated
0.81″
B9100063
Carrying strap, textile lanyard
Textile lanyard with loop attachment.
ATTENTION, PART TO BE DISCONTINUED:
The article is only available in limited quantities. Please ask for it!
Supply 1 lanyard
B9100063
Carrying strap, textile lanyardproduct added to your basket
33.86″
B9100073
Carrying strap, textile lanyard
Textile lanyard with snap safety clip.
Supply 1 lanyard
B9100073
Carrying strap, textile lanyardproduct added to your basket
35.98″x0.63″
Customizing options for B9004306
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Technical Data
-
3D-Models & Drawings / Info
- Purchasing Data
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 267 KB
- AutoCAD DWG-File 353 KB
- AutoCAD DXF-File 1,099 KB
- 3D PDF View (Acrobat Reader) (turn the product 360°, blind components out for inside view, view accessories...) 230 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00012602.x_t 312 KB
- 00012602.STEP 831 KB
- 00012602.SAT 661 KB
Weight/1 part
3 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Germany
Customizing service: We can modify our enclosures to meet your specific requirements. We will deliver your enclosures fully finished and ready to use. All you have to do is install your equipment inside. View customizing options for B9004306 and don't forget to request a quotation!
