Accessories for enclosures
B9004798
Intermediate ring EM, USB type A
Assembly unit: simply insert the intermediate ring between bottom and top part and screw the case together. TPE gives a pleasant touch sensation and impact protection. USB cover as accessory.
VersionWith opening for USB-connector type A according to DIN IEC 61076-3-107
Supply1 intermediate ring EM, 1 self-tapping screw
2D PDF Drawing
3D PDF View
3D/2D download
3D/2D download
Generate Your PDF Datasheet for B9004798
Please select the product details you would like to include in the PDF.
Add to my basket
System components to complete
B9004806
Bottom and top part EM
Assembly unit: Modern, flat styling. Easy to carry. Recessed operating area for membrane keyboards. Fixing supports for PCBs/components in the case bottom. Intermediate ring EM as separate article necessary.
Supply 1 top and bottom part EM, 1 self-tapping screw
B9004806
Bottom and top part EMproduct added to your basket
black RAL 9005
2.68″x1.65″x0.71″
B9004807
Bottom and top part EM
Assembly unit: Modern, flat styling. Easy to carry. Recessed operating area for membrane keyboards. Fixing supports for PCBs/components in the case bottom. Intermediate ring EM as separate article necessary.
Supply 1 top and bottom part EM, 1 self-tapping screw
B9004807
Bottom and top part EMproduct added to your basket
off-white RAL 9002
2.68″x1.65″x0.71″
B9004808
Bottom and top part EM
Assembly unit: Modern, flat styling. Easy to carry. Recessed operating area for membrane keyboards. Fixing supports for PCBs/components in the case bottom. Intermediate ring EM as separate article necessary.
Supply 1 top and bottom part EM, 1 self-tapping screw
B9004808
Bottom and top part EMproduct added to your basket
lava
2.68″x1.65″x0.71″
B9004856
Bottom and top part EM
Assembly unit: Modern, flat styling. Easy to carry. Fixing supports for PCBs/components in the case bottom. Intermediate ring EM as separate article necessary.
Supply 1 top and bottom part EM, 1 self-tapping screw
B9004856
Bottom and top part EMproduct added to your basket
black RAL 9005
2.68″x1.65″x0.71″
B9004857
Bottom and top part EM
Assembly unit: Modern, flat styling. Easy to carry. Fixing supports for PCBs/components in the case bottom. Intermediate ring EM as separate article necessary.
Supply 1 top and bottom part EM, 1 self-tapping screw
B9004857
Bottom and top part EMproduct added to your basket
off-white RAL 9002
2.68″x1.65″x0.71″
B9004858
Bottom and top part EM
Assembly unit: Modern, flat styling. Easy to carry. Fixing supports for PCBs/components in the case bottom. Intermediate ring EM as separate article necessary.
Supply 1 top and bottom part EM, 1 self-tapping screw
B9004858
Bottom and top part EMproduct added to your basket
lava
2.68″x1.65″x0.71″
Accessory "protection"
A9320008

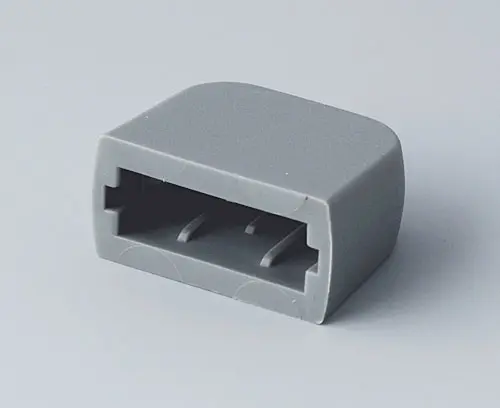

USB end cover
For USB connectors type A according to DIN IEC 610076-3-107. The end cover clamps on the connector.
Supply 1 USB end cover
A9320008
USB end coverproduct added to your basket
volcano
Accessory "carrying"
A9164001
Key ring
Version: diameter = 0.807".
Supply 1 key ring
A9164001
Key ringproduct added to your basket
nickel-plated
0.81″
B9100063
Carrying strap, textile lanyard
Textile lanyard with loop attachment.
ATTENTION, PART TO BE DISCONTINUED:
The article is only available in limited quantities. Please ask for it!
Supply 1 lanyard
B9100063
Carrying strap, textile lanyardproduct added to your basket
33.86″
Customizing options for B9004798
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Technical Data
-
3D-Models & Drawings / Info
- Purchasing Data
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 350 KB
- AutoCAD DWG-File 971 KB
- AutoCAD DXF-File 3,539 KB
- 3D PDF View (Acrobat Reader) (turn the product 360°, blind components out for inside view, view accessories...) 492 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00013080.x_t 3,912 KB
- 00013080.STEP 8,466 KB
- 00013080.SAT 8,564 KB
Weight/1 part
4 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Germany
Customizing service: We can modify our enclosures to meet your specific requirements. We will deliver your enclosures fully finished and ready to use. All you have to do is install your equipment inside. View customizing options for B9004798 and don't forget to request a quotation!
