B9106108

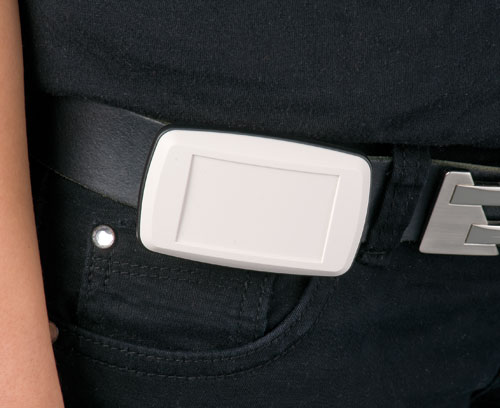

Strap eyelet EL

For attaching to the belt or belt strap (lengthwise or crosswise). Max. dimensions of the belt strap/belt: 1.378" high, 0.157" thick. Easy assembly - use the screws supplied with the strap eyelet instead of the screws from the top and bottom parts of the case.

Supply

1 strap eyelet, 2 screws

  • To be used for
AltText

B9006806

Bottom and top part EL Assembly unit: Modern, flat styling. Easy to carry. Recessed operating area for membrane keyboards. Fixing supports for PCBs/components in the case bottom. Intermediate ring EL as separate article necessary.

Supply 1 top and bottom part EL, 2 self-tapping screws

Close

B9006806

Bottom and top part EL
product added to your basket
PMMA (IR) (UL 94 HB)
black RAL 9005
3.07″x1.89″x0.79″
AltText

B9006807

Bottom and top part EL Assembly unit: Modern, flat styling. Easy to carry. Recessed operating area for membrane keyboards. Fixing supports for PCBs/components in the case bottom. Intermediate ring EL as separate article necessary.

Supply 1 top and bottom part EL, 2 self-tapping screws

Close

B9006807

Bottom and top part EL
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
3.07″x1.89″x0.79″
AltText

B9006808

Bottom and top part EL Assembly unit: Modern, flat styling. Easy to carry. Recessed operating area for membrane keyboards. Fixing supports for PCBs/components in the case bottom. Intermediate ring EL as separate article necessary.

Supply 1 top and bottom part EL, 2 self-tapping screws

Close

B9006808

Bottom and top part EL
product added to your basket
ABS (UL 94 HB)
lava
3.07″x1.89″x0.79″
AltText

B9006816

Bottom and top part EL Assembly unit: Modern, flat styling. Easy to carry. Recessed operating area for membrane keyboards. Fixing supports for PCBs/components in the case bottom. Intermediate ring EL as separate article necessary.

Supply 1 top and bottom part EL, 2 self-tapping screws

Close

B9006816

Bottom and top part EL
product added to your basket
PMMA (IR) (UL 94 HB)
black RAL 9005
3.07″x1.89″x0.94″
AltText

B9006817

Bottom and top part EL Assembly unit: Modern, flat styling. Easy to carry. Recessed operating area for membrane keyboards. Fixing supports for PCBs/components in the case bottom. Intermediate ring EL as separate article necessary.

Supply 1 top and bottom part EL, 2 self-tapping screws

Close

B9006817

Bottom and top part EL
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
3.07″x1.89″x0.94″
AltText

B9006818

Bottom and top part EL Assembly unit: Modern, flat styling. Easy to carry. Recessed operating area for membrane keyboards. Fixing supports for PCBs/components in the case bottom. Intermediate ring EL as separate article necessary.

Supply 1 top and bottom part EL, 2 self-tapping screws

Close

B9006818

Bottom and top part EL
product added to your basket
ABS (UL 94 HB)
lava
3.07″x1.89″x0.94″
AltText

B9006826

Bottom and top part EL Assembly unit: Modern, flat styling. Easy to carry. Recessed operating area for membrane keyboards. Fixing supports for PCBs/components in the case bottom. Intermediate ring EL as separate article necessary.

Supply 1 top and bottom part EL, 2 self-tapping screws

Close

B9006826

Bottom and top part EL
product added to your basket
PMMA (IR) (UL 94 HB)
black RAL 9005
3.07″x1.89″x1.02″
AltText

B9006827

Bottom and top part EL Assembly unit: Modern, flat styling. Easy to carry. Recessed operating area for membrane keyboards. Fixing supports for PCBs/components in the case bottom. Intermediate ring EL as separate article necessary.

Supply 1 top and bottom part EL, 2 self-tapping screws

Close

B9006827

Bottom and top part EL
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
3.07″x1.89″x1.02″
AltText

B9006828

Bottom and top part EL Assembly unit: Modern, flat styling. Easy to carry. Recessed operating area for membrane keyboards. Fixing supports for PCBs/components in the case bottom. Intermediate ring EL as separate article necessary.

Supply 1 top and bottom part EL, 2 self-tapping screws

Close

B9006828

Bottom and top part EL
product added to your basket
ABS (UL 94 HB)
lava
3.07″x1.89″x1.02″
AltText

B9006856

Bottom and top part EL Assembly unit: Modern, flat styling. Easy to carry. Fixing supports for PCBs/components in the case bottom. Intermediate ring EL as separate article necessary.

Supply 1 top and bottom part EL, 2 self-tapping screws

Close

B9006856

Bottom and top part EL
product added to your basket
PMMA (IR) (UL 94 HB)
black RAL 9005
3.07″x1.89″x0.79″
AltText

B9006857

Bottom and top part EL Assembly unit: Modern, flat styling. Easy to carry. Fixing supports for PCBs/components in the case bottom. Intermediate ring EL as separate article necessary.

Supply 1 top and bottom part EL, 2 self-tapping screws

Close

B9006857

Bottom and top part EL
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
3.07″x1.89″x0.79″
AltText

B9006858

Bottom and top part EL Assembly unit: Modern, flat styling. Easy to carry. Fixing supports for PCBs/components in the case bottom. Intermediate ring EL as separate article necessary.

Supply 1 top and bottom part EL, 2 self-tapping screws

Close

B9006858

Bottom and top part EL
product added to your basket
ABS (UL 94 HB)
lava
3.07″x1.89″x0.79″
  • Technical Data
  • Purchasing Data
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
7 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
