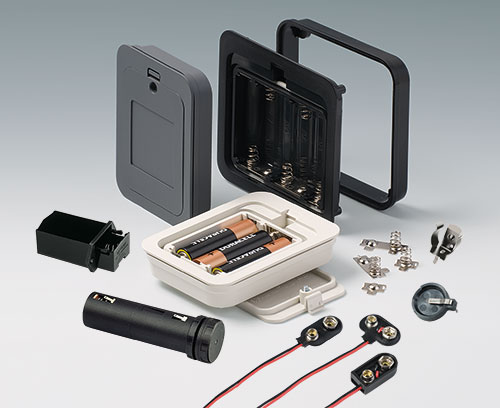

Battery holders and contacts
Battery compartment kits AA in different versionsDATEC-TERMINAL enclosure with battery holder 1 x 9 VButton cell holder battery holder 9 V batteriesBattery holders and contacts

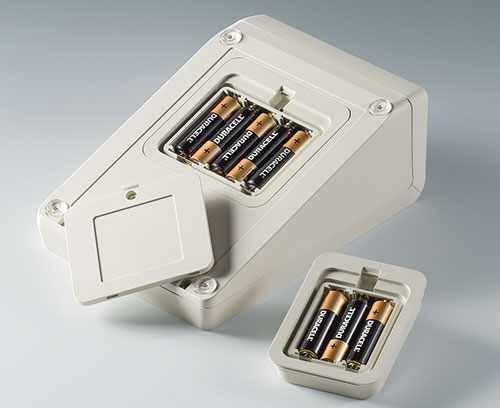

Battery compartment kits AA in different versions

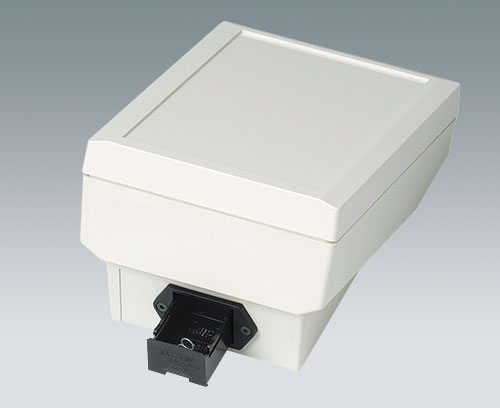

DATEC-TERMINAL enclosure with battery holder 1 x 9 V

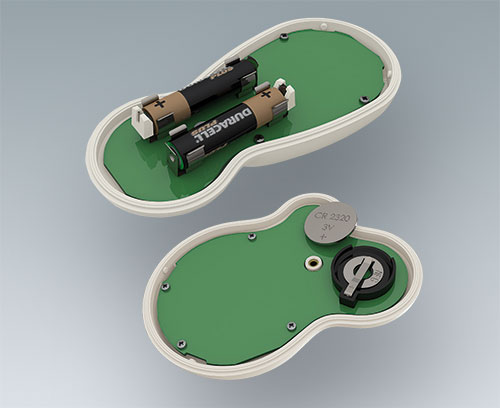

Button cell holder

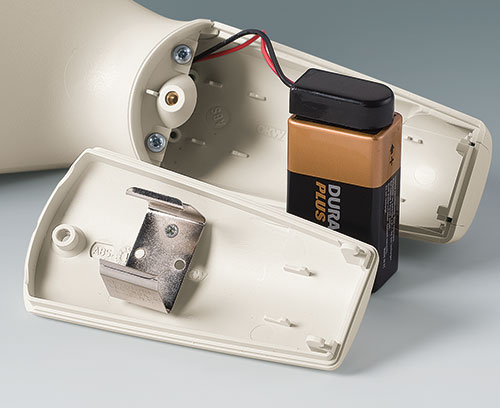

Battery holder 9 V batteries
Battery holders and contacts

Battery compartments and holders, button cell holders

  • Universal battery compartments and holders for AAA, AA, C, D and 9V size batteries for direct installation in front panels or enclosure walls.
  • Also, button cell holders for installation on PCBs.


  • Browse Full List
  • Catalog Documents
NEW PRODUCT
View

A9156001  Add to my list
Battery holder, 2 x AA

PP
black RAL 9005

A9156003  Add to my list
Battery holder, 1 x 9 V

Steel
nickel-plated

A9174004  Add to my list
Battery compartment, 4 x AA

ABS (UL 94 HB)
off-white RAL 9002

A9193037  Add to my list
Button cell holder

A9193038  Add to my list
Button cell holder

A9193039  Add to my list
Button cell holder

A9193040  Add to my list
Button cell holder

A9250250  Add to my list
Battery spacer

PE foam
1.97″x0.98″x0.16″

A9301330  Add to my list
Battery holder, 3 x AA

PA
black RAL 9005

A9302510  Add to my list
Battery holder, 1 x 9 V

PA
black RAL 9005

A9302540  Add to my list
Battery holder, 4 x AA

PA
black RAL 9005

A9303210  Add to my list
Battery holder, 1 x C

PA
black RAL 9005

A9303310  Add to my list
Battery holder, 1 x AA

PA
black RAL 9005

A9336117  Add to my list
Battery compartment kit, 3 x AA

ABS (UL 94 HB)
off-white RAL 9002
3.66″x2.72″
IP 54

A9336118  Add to my list
Battery compartment kit, 3 x AA

ABS (UL 94 HB)
lava
3.66″x2.72″
IP 54

A9336119  Add to my list
Battery compartment kit, 3 x AA

ABS (UL 94 HB)
black RAL 9005
3.66″x2.72″
IP 54

A9338117  Add to my list
Battery compartment kit, 5 x AA

ABS (UL 94 HB)
off-white RAL 9002
3.66″x3.86″
IP 54

A9338118  Add to my list
Battery compartment kit, 5 x AA

ABS (UL 94 HB)
lava
3.66″x3.86″
IP 54

A9338119  Add to my list
Battery compartment kit, 5 x AA

ABS (UL 94 HB)
black RAL 9005
3.66″x3.86″
IP 54

A9338218  Add to my list
Battery compartment kit, 5 x AA

ASA+PC-FR (UL 94 V-0)
lava
3.66″x3.86″
IP 54

A9345217  Add to my list
Set of battery compartment, 4 x AA

ABS (UL 94 HB)
off-white RAL 9002

Accessory "battery"

A9156002  Add to my list
Plug-in contact, 1 x 9 V

A9161001  Add to my list
Set of battery clips, 4 x AA

Steel
tin-plated

A9193003  Add to my list
Battery-clips, double contact

Steel
tin-plated

A9193004  Add to my list
Battery-clips, single contact

Steel
tin-plated

A9193005  Add to my list
Battery clips, double contact

Steel
nickel-plated

A9193006  Add to my list
Battery-clips, single contact

Steel
nickel-plated

A9193008  Add to my list
Battery clips, double contact

CuBe
nickel-plated

A9193009  Add to my list
Battery clips, single contact

CuBe
nickel-plated

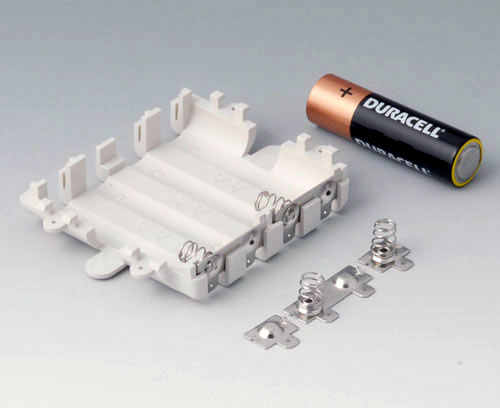

A9345217

For 4 x 1.5 V mignon-cells (AA). Complies with DIN EN 60601 (short circuit caused by incorrect insertion of batteries impossible).

Supply
1 battery compartment, battery clips nickel-plated, assembly kit

A9338118

For direct installation in front panels or case walls. Easy battery replacement. Battery compartment lid for snap-in and/or screw-on mounting.
Assembly: Screwed to bracket from inside. Alternatively with adhesive foil, on request. Recommended for 0.118" wall thickness where a recess of 0.059" is necessary, for the battery compartment is flush with the wall surface. Adjustment of recess or screw length required for greater wall thicknesses.

Supply
1 battery comp., 1 battery comp. lid + M3 screw, 1 holder, 2 sealings, 1 set of battery clips, nickel-plated, 4 self-tapping screws

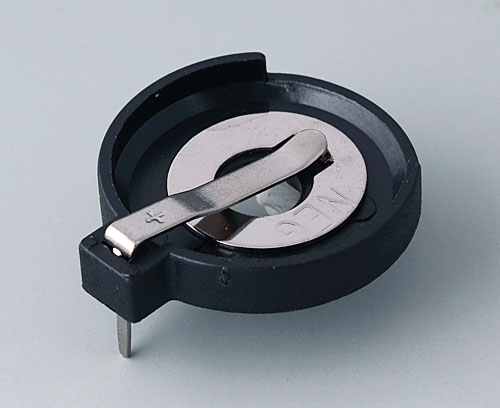

A9193038

For button cells with Ø 0.906", e.g. CR2320, CR2325, CR2354. For installation on PCBs.

Version
Horizontal

Supply
1 button cell holder

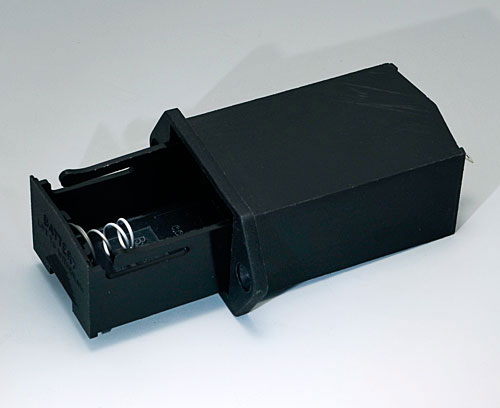

A9302510

Battery holder with pull-out drawer. Snap-in system permits safe opening by hand. Direct contact system with rear soldering contacts in the housing.

Version
For 1 flat battery 9 V (PP3)

Supply
1 battery holder, 1 drawer

A9193003

Version large, for double contact. Supply as separate part.

Supply
1 battery clip

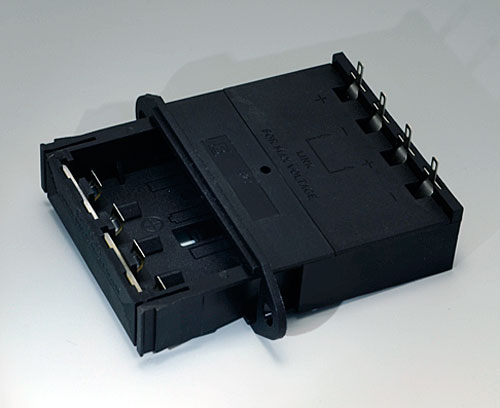

A9302540

Battery holder with pull-out drawer. Snap-in system permits safe opening by hand. Direct contact system with rear soldering contacts in the housing.

Version
For 4 mignon cells 1.5 V (AA)

Supply
1 battery holder, 1 drawer

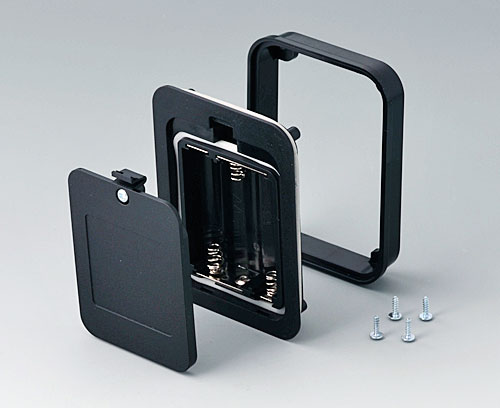

A9336119

For direct installation in front panels or case walls. Easy battery replacement. Battery compartment lid for snap-in and/or screw-on mounting.
Assembly: Screwed to bracket from inside. Alternatively with adhesive foil, on request. Recommended for 0.118" wall thickness where a recess of 0.059" is necessary, for the battery compartment is flush with the wall surface. Adjustment of recess or screw length required for greater wall thicknesses.

Supply
1 battery comp., 1 battery comp. lid + M3 screw, 1 holder, 2 sealings, 1 set of battery clips, nickel-plated, 4 self-tapping screws

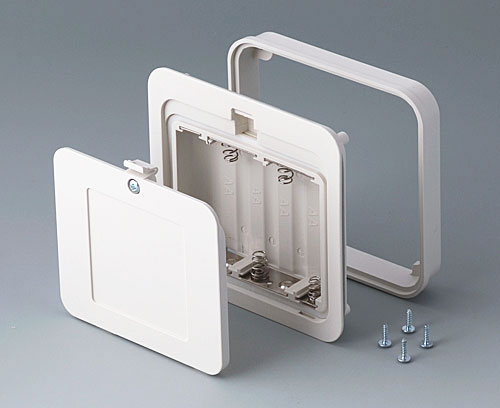

A9338117

For direct installation in front panels or case walls. Easy battery replacement. Battery compartment lid for snap-in and/or screw-on mounting.
Assembly: Screwed to bracket from inside. Alternatively with adhesive foil, on request. Recommended for 0.118" wall thickness where a recess of 0.059" is necessary, for the battery compartment is flush with the wall surface. Adjustment of recess or screw length required for greater wall thicknesses.

Supply
1 battery comp., 1 battery comp. lid + M3 screw, 1 holder, 2 sealings, 1 set of battery clips, nickel-plated, 4 self-tapping screws

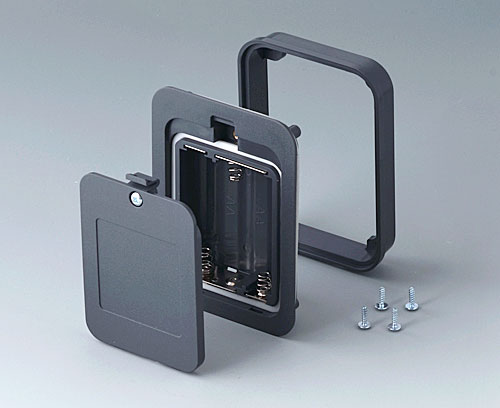

A9336118

For direct installation in front panels or case walls. Easy battery replacement. Battery compartment lid for snap-in and/or screw-on mounting.
Assembly: Screwed to bracket from inside. Alternatively with adhesive foil, on request. Recommended for 0.118" wall thickness where a recess of 0.059" is necessary, for the battery compartment is flush with the wall surface. Adjustment of recess or screw length required for greater wall thicknesses.

Supply
1 battery comp., 1 battery comp. lid + M3 screw, 1 holder, 2 sealings, 1 set of battery clips, nickel-plated, 4 self-tapping screws

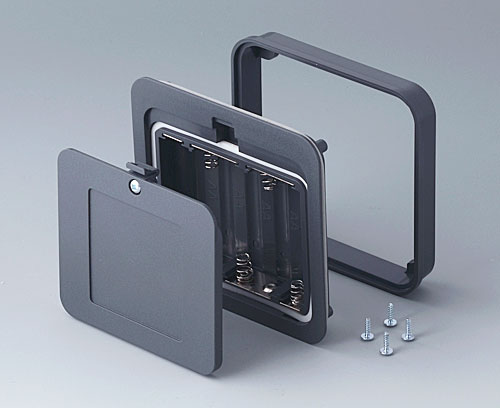

A9338218

For direct installation in front panels or case walls. Easy battery replacement. Battery compartment lid for snap-in and/or screw-on mounting.
Assembly: Screwed to bracket from inside. Alternatively with adhesive foil, on request. Recommended for 0.118" wall thickness where a recess of 0.059" is necessary, for the battery compartment is flush with the wall surface. Adjustment of recess or screw length required for greater wall thicknesses.

Supply
1 battery comp., 1 battery comp. lid + M3 screw, 1 holder, 2 sealings, 1 set of battery clips, nickel-plated, 4 self-tapping screws

A9161001

For contacting the batteries.

Supply
3 double contacts, 2 Single contacts

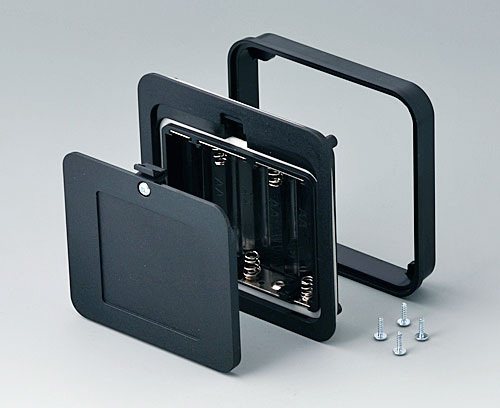

A9338119

For direct installation in front panels or case walls. Easy battery replacement. Battery compartment lid for snap-in and/or screw-on mounting.
Assembly: Screwed to bracket from inside. Alternatively with adhesive foil, on request. Recommended for 0.118" wall thickness where a recess of 0.059" is necessary, for the battery compartment is flush with the wall surface. Adjustment of recess or screw length required for greater wall thicknesses.

Supply
1 battery comp., 1 battery comp. lid + M3 screw, 1 holder, 2 sealings, 1 set of battery clips, nickel-plated, 4 self-tapping screws

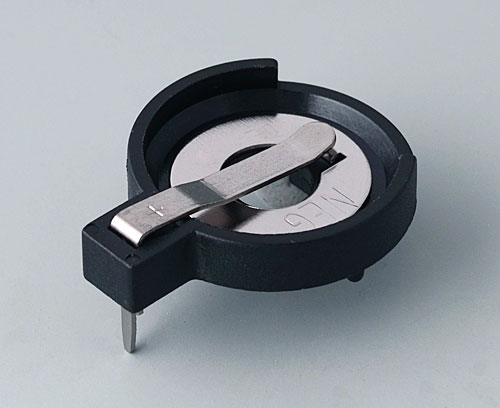

A9193037

For button cells with Ø 0.787", e.g. CR2016, CR2025, CR2032. For installation on PCBs.

Version
Horizontal

Supply
1 button cell holder

A9174004

Application: for 4 x 1.5 V mignon-cells (AA).

Suitable for COMTEC 150/200, DATEC-CONTROL S, DATEC-MOBIL-BOX M, ERGO-CASE M/L and HAND-TERMINAL M. As an alternative to battery compartment kit A9345217.

Supply
1 battery compartment, assembly kit

A9193006

Version small, for single contact. Supply as separate part.

Supply
1 battery clip

A9193004

Version small, for single contact. Supply as separate part.

Supply
1 battery clip

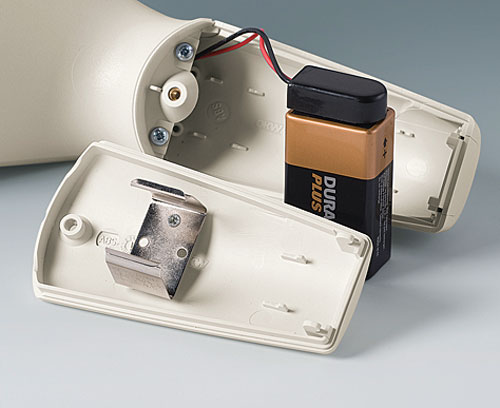

A9156003

For 1 x 9 V flat battery.

Supply
1 set

A9193008

Version large, for double contact. Battery clips absolutely non-corrosive. Specially for the use in corrosion-causing areas, where there are salty and acid atmospheres.

Supply
1 battery clip

A9156002

Version: With protective case. Cable length approx. 5.984". Contact diameters 0.224"/0.209".
Application: suitable for 9 V flat battery or battery holder A9156001.

Supply
1 plug-in contact

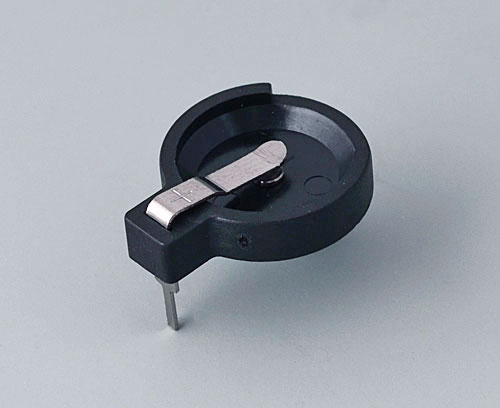

A9193039

For button cells with Ø 0.472", e.g. CR1216, CR1220. For installation on PCBs.

Version
Horizontal

Supply
1 button cell holder

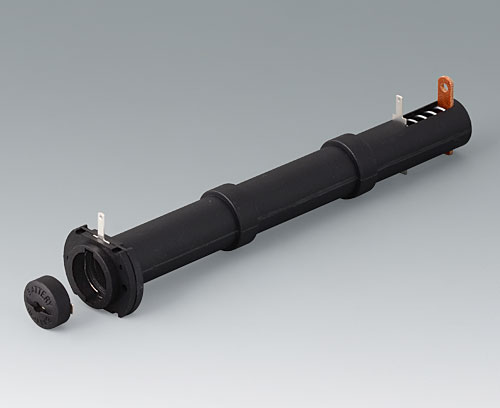

A9301330

Battery holder for direct installation in front and rear panels. Battery replacement is considerably easier - housings need not be opened.

Version
For 3 mignon cells 1.5 V (AA), mounting lenght 169.5 mm

Supply
1 battery holder

A9193005

Version large, for double contact. Supply as separate part.

Supply
1 battery clip

A9193009

Version small, for single contact. Battery clips absolutely non-corrosive. Specially for the use in corrosion-causing areas, where there are salty and acid atmospheres.

Supply
1 battery clip

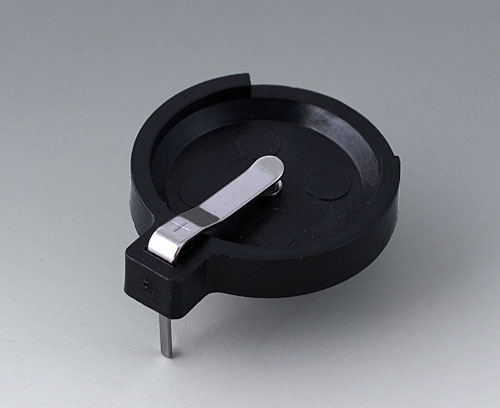

A9193040

For button cells with Ø 0.630", e.g. CR1612, CR1620. For installation on PCBs.

Version
Horizontal

Supply
1 button cell holder

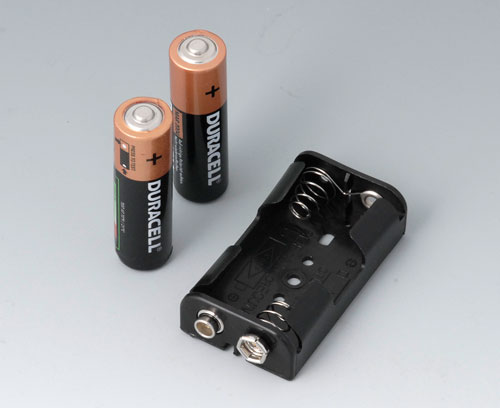

A9156001

For 2 x 1.5 V mignon-cells (AA). Contacts suitable for plug-in contact (sep. asseccory).

Supply
1 battery holder

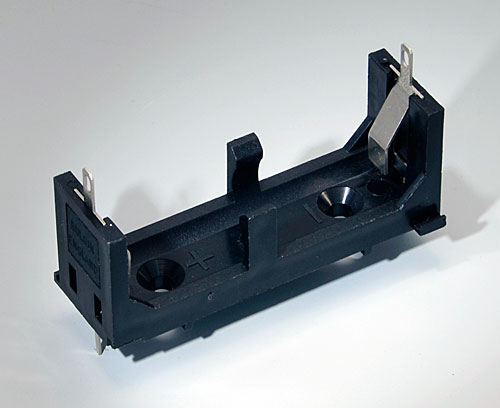

A9303310

Insert battery holder. With direct line connection - can be soldered or used with plugs 0.110" x 0.012". With pins for boards.

Version
For 1 mignon cell 1.5 V (AA/LR6)

Supply
1 battery holder

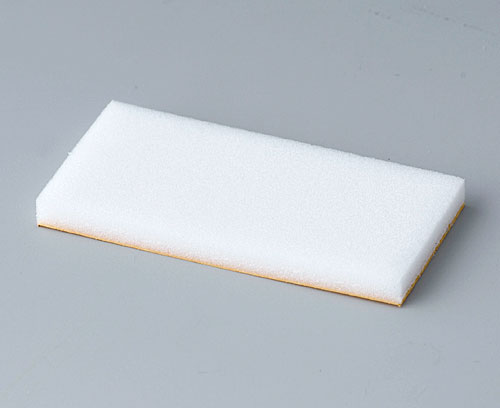

A9250250

The self-adhesive spacer provides mignon cells with safe support in all battery compartments which can also be used for 9 V flat batteries.
Application: DATEC-POCKET-BOX L, DATEC-MOBIL-BOX S, DATEC-CONTROL XS, HAND-TERMINAL, LUX-CASES 150 and 190, SHELL-TYPE CASES vers. III and IV, HAND-HELD-BOX N.

Supply
1 spacer

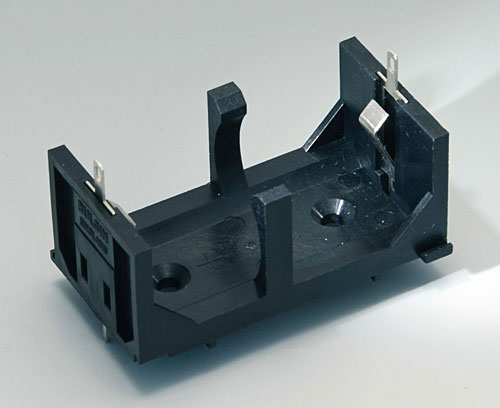

A9303210

Insert battery holder. With direct line connection - can be soldered or used with plugs 0.110" x 0.012". With pins for boards.

Version
For 1 baby cell 1.5 V (C/LR14)

Supply
1 battery holder

A9336117

For direct installation in front panels or case walls. Easy battery replacement. Battery compartment lid for snap-in and/or screw-on mounting.
Assembly: Screwed to bracket from inside. Alternatively with adhesive foil, on request. Recommended for 0.118" wall thickness where a recess of 0.059" is necessary, for the battery compartment is flush with the wall surface. Adjustment of recess or screw length required for greater wall thicknesses.

Supply
1 battery comp., 1 battery comp. lid + M3 screw, 1 holder, 2 sealings, 1 set of battery clips, nickel-plated, 4 self-tapping screws
