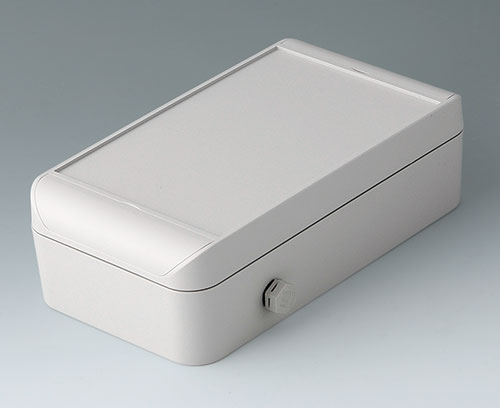

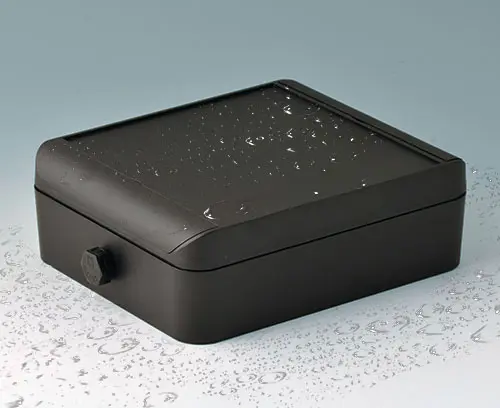

SMART-BOX with pressure equalization element
Pressure equalization element with highly improved air exchangeAlso suitable in large control cabinets and protective housingsSMART-BOX with pressure equalization element

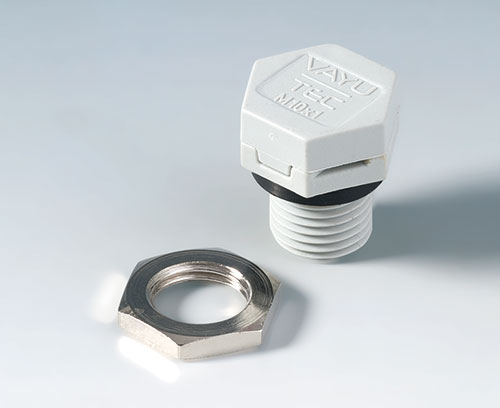

Pressure equalization element with highly improved air exchange

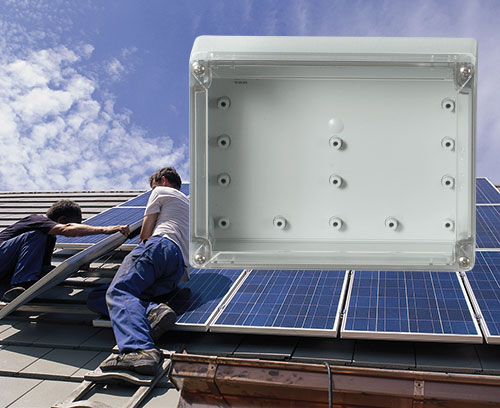

Also suitable in large control cabinets and protective housings
SMART-BOX with pressure equalization element

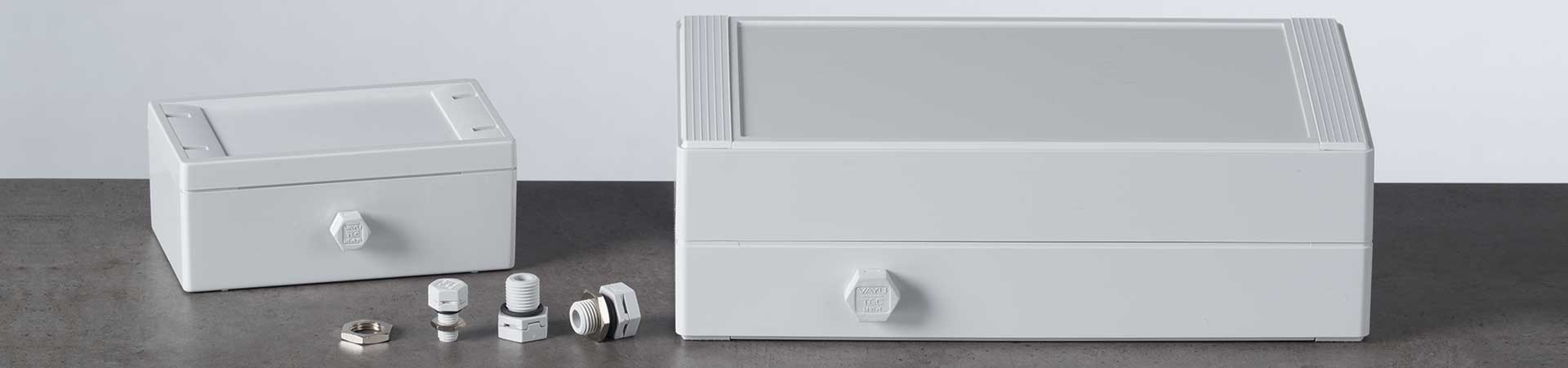

Pressure compensation elements

With a particularly high air throughput to protect sensitive electronics. Universal use for enclosures and switch cabinets. Sizes M6 and M10.


  • Browse Full List
  • Catalog Documents
NEW PRODUCT
View

C2306917  Add to my list
Pressure equalization element M6x0.030"

PA 6 (UL 94 HB)
light gray RAL 7035
IP 56

C2310917  Add to my list
Pressure equalization element M10x0.039"

PA 6 (UL 94 HB)
light gray RAL 7035
IP 56

C2306917

Pressure equalization elements with highly improved air exchange for protecting sensitive electronics. Changing atmospheric conditions and a sudden decrease in temperature can cause underpressure inside protective housings of technical equipment. Water and dirt can penetrate the gaskets damaging electronics in the process. The patented IQ TEX® technology is the ideal solution for urgent pressure balancing in large control cabinets and all protective housings. At the same time the innovative construction of IQ TEX® protects against foreign material and dirt. If required, it is absolutely watertight up to a pressure of 6 bar.
Airflow: 6.5 L/min - 0.25 bar; 16.5 L/min - 1 bar.
Water entry pressure > 6 bar.
Temperature range -40°C/+110°C.
Sealing material: BASF Luquafleece + PA6 mesh (insert molding).

Supply
1 pressure equalization element, 1 seal washer, 1 nut

C2310917

Pressure equalization elements with highly improved air exchange for protecting sensitive electronics. Changing atmospheric conditions and a sudden decrease in temperature can cause underpressure inside protective housings of technical equipment. Water and dirt can penetrate the gaskets damaging electronics in the process. The patented IQ TEX® technology is the ideal solution for urgent pressure balancing in large control cabinets and all protective housings. At the same time the innovative construction of IQ TEX® protects against foreign material and dirt. If required, it is absolutely watertight up to a pressure of 6 bar.
Airflow: 19.5 L/min - 0.25 bar; 43.5 L/min - 1 bar.
Water entry pressure > 6 bar.
Temperature range -40°C/+110°C.
Sealing material: BASF Luquafleece + PA6 mesh (insert molding).

Supply
1 pressure equalization element, 1 seal washer, 1 nut
