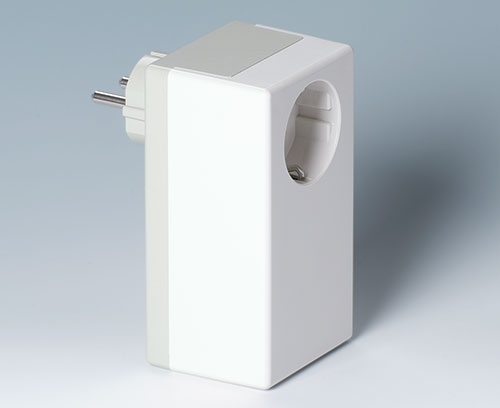

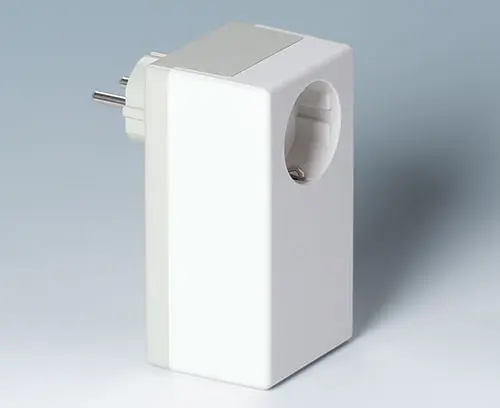

A9022465 PLUG CASE D, Vers. II

A9022465

PLUG CASE D, Vers. II

Two-part plug case, German version. Live parts ABS-PC V-0. Fixing towers for the PCB assembly.

Version

With integrated socket DIN 49440 and plug section DIN 49441 R2

Supply

1 top and base part, assembly kit including 4 screws for the PCB fixing

  • Components/Accessories
  • View Customizing Options

Accessory "screws"

A0306031 Self-tapping screws 0.118" x 0.236" (PZ1)

A0306031

Self-tapping screws 0.118" x 0.236" (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.
For correct assembly please note the tightening torque depends on enclosure type. View list (.xls) >>

Supply 1 self-tapping screw

Close

A0306031

Self-tapping screws 0.118" x 0.236" (PZ1)
product added to your list
A0308031 Self-tapping screws 0.118" x 0.315" (PZ1)

A0308031

Self-tapping screws 0.118" x 0.315" (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.
For correct assembly please note the tightening torque depends on enclosure type. View list (.xls) >>

Supply 1 self-tapping screw

Close

A0308031

Self-tapping screws 0.118" x 0.315" (PZ1)
product added to your list

Customizing options for A9022465

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Color
Top part off-white RAL 9002,
Bottom part pebble gray RAL 7032
Length
4.724″
120 mm
Width
2.559″
65 mm
Height
2.165″
55 mm
PCB length, base
3.780″
96 mm
PCB width, base
2.283″
58 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Miscellaneous information

Weight/1 part
140 g
Customs tariff number
(OKW product)
85489090
Country of manufacture
Germany
