Accessories for enclosures
A8017158

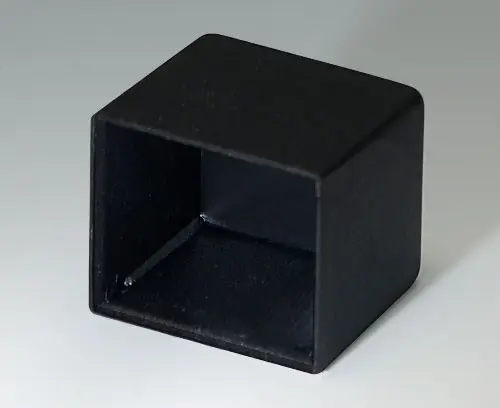

POTTING BOXES, Vers. II
Impact strong case. With elastic side panels. Therefore only partly resistant to deformation.
Supply1 case
2D PDF Drawing
3D PDF View
3D/2D download
3D/2D download
Generate Your PDF Datasheet for A8017158
Please select the product details you would like to include in the PDF.
Add to my basket
Customizing options for A8017158
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
- Technical Data
-
3D-Models & Drawings / Info
- Purchasing Data
Length
0.685″
17.4 mm
Width
0.591″
15 mm
Height
0.602″
15.3 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 80 KB
- AutoCAD DWG-File 248 KB
- AutoCAD DXF-File 691 KB
- 3D PDF View (Acrobat Reader) (turn the product 360°, blind components out for inside view, view accessories...) 33 KB
3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- 00007308.x_t 42 KB
- 00007308.step 112 KB
- 00007308.sat 162 KB
Weight/1 part
1.08 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Other country
Customizing service: We can modify our enclosures to meet your specific requirements. We will deliver your enclosures fully finished and ready to use. All you have to do is install your equipment inside. View customizing options for A8017158 and don't forget to request a quotation!
