C2203001 Case shell 7.874

C2203001

Case shell 7.874", with groove

Case shell with thread and fixing towers as separate part. Alternative use either as top or bottom part. Screw fixing outside of the sealing area. Recess of approx. 0.031" for the use of membrane keyboards. Each 1 part with tongue and 1 part with groove needed for 1 case.

Supply

1 case shell with groove

  • Components/Accessories
  • View Customizing Options

System components to complete

C1203001 Case shell 7.874", with tongue

C1203001

Case shell 7.874", with tongue Case shell with thread and fixing towers as separate part. Alternative use either as top or bottom part. Screw fixing outside of the sealing area. Recess of approx. 0.031" for the use of membrane keyboards. Each 1 part with tongue and 1 part with groove needed for 1 case.

Supply 1 case shell with tongue

Close

C1203001

Case shell 7.874", with tongue
product added to your list
ABS (UL 94 HB)
light gray RAL 7035
11.81″x7.87″x1.57″
C2299002 Assembly kit

C2299002

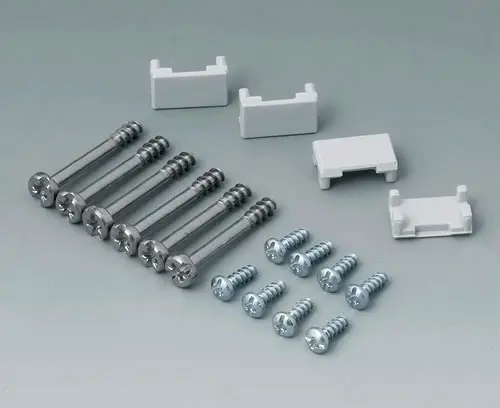

Assembly kit 6 screws for case assembly, 8 screws for mounting PCBs, center cover.

Supply 1 assembly kit

Close

C2299002

Assembly kit
product added to your list
C4203001 Case shell 7.874", with tongue

C4203001

Case shell 7.874", with tongue Case shell with thread and fixing towers as separate part. Alternative use either as top or bottom part. Screw fixing outside of the sealing area. Recess of approx. 0.031" for the use of membrane keyboards. Each 1 part with tongue and 1 part with groove needed for 1 case.

Supply 1 case shell with tongue

Close

C4203001

Case shell 7.874", with tongue
product added to your list
ABS (UL 94 HB)
light gray RAL 7035
11.81″x7.87″x3.15″

Accessory to complete

C2202001 Cover strips 7.874", without holes

C2202001

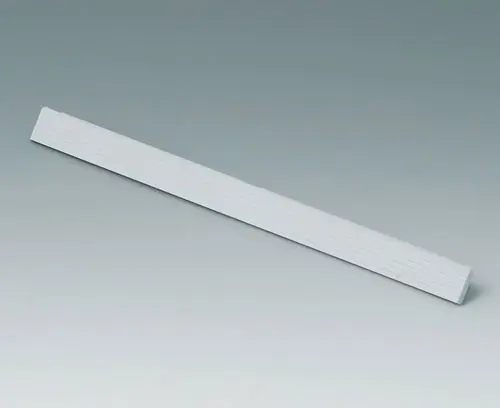

Cover strips 7.874", without holes Simply clip into top or base (2 pcs. necessary).

Supply 1 cover strip without holes for top

Close

C2202001

Cover strips 7.874", without holes
product added to your list
PC (UL 94 HB)
light gray RAL 7035
C2212001 Cover strips 7.874", with holes

C2212001

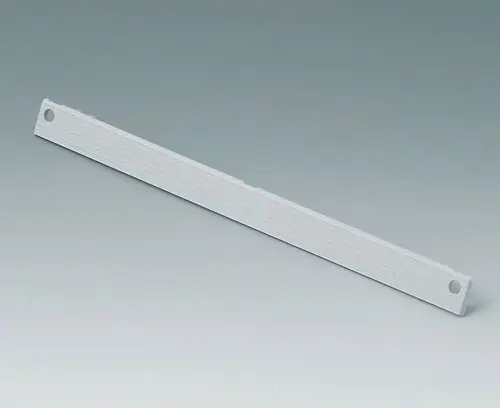

Cover strips 7.874", with holes Simply clip into top or base. Pair of cover strips with 2 holes to put in rubber feet or security plug (2 pcs. necessary).

Supply 1 cover strip with holes for bottom

Close

C2212001

Cover strips 7.874", with holes
product added to your list
PC (UL 94 HB)
light gray RAL 7035

Accessory "protection"

C2306917 Pressure equalization element M6x0.030"

C2306917

Pressure equalization element M6x0.030" Pressure equalization elements with highly improved air exchange for protecting sensitive electronics. Changing atmospheric conditions and a sudden decrease in temperature can cause underpressure inside protective housings of technical equipment. Water and dirt can penetrate the gaskets damaging electronics in the process. The patented IQ TEX® technology is the ideal solution for urgent pressure balancing in large control cabinets and all protective housings. At the same time the innovative construction of IQ TEX® protects against foreign material and dirt. If required, it is absolutely watertight up to a pressure of 6 bar.
Airflow: 6.5 L/min - 0.25 bar; 16.5 L/min - 1 bar.
Water entry pressure > 6 bar.
Temperature range -40°C/+110°C.
Sealing material: BASF Luquafleece + PA6 mesh (insert molding).

Supply 1 pressure equalization element, 1 seal washer, 1 nut

Close

C2306917

Pressure equalization element M6x0.030"
product added to your list
PA 6 (UL 94 HB)
light gray RAL 7035
IP 56
C2310917 Pressure equalization element M10x0.039"

C2310917

Pressure equalization element M10x0.039" Pressure equalization elements with highly improved air exchange for protecting sensitive electronics. Changing atmospheric conditions and a sudden decrease in temperature can cause underpressure inside protective housings of technical equipment. Water and dirt can penetrate the gaskets damaging electronics in the process. The patented IQ TEX® technology is the ideal solution for urgent pressure balancing in large control cabinets and all protective housings. At the same time the innovative construction of IQ TEX® protects against foreign material and dirt. If required, it is absolutely watertight up to a pressure of 6 bar.
Airflow: 19.5 L/min - 0.25 bar; 43.5 L/min - 1 bar.
Water entry pressure > 6 bar.
Temperature range -40°C/+110°C.
Sealing material: BASF Luquafleece + PA6 mesh (insert molding).

Supply 1 pressure equalization element, 1 seal washer, 1 nut

Close

C2310917

Pressure equalization element M10x0.039"
product added to your list
PA 6 (UL 94 HB)
light gray RAL 7035
IP 56

Accessory "wall/holder"

C2299028 Wall mounting brackets

C2299028

Wall mounting brackets Elements for exterior wall mounting after assembly of the unit.

Supply 4 pieces including fixing elements

Close

C2299028

Wall mounting brackets
product added to your list
PA 6 (UL 94 HB)
light gray RAL 7035
C2299088 Hinge

C2299088

Hinge For cases: 4.724", 6.299", 7.874" and 9.449" length or width. Additional machining (drilling) required.

Supply 2 complete hinges

Close

C2299088

Hinge
product added to your list
PA 6
light gray RAL 7035

Accessory "screws"

A0306031 Self-tapping screws 0.118" x 0.236" (PZ1)

A0306031

Self-tapping screws 0.118" x 0.236" (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.
For correct assembly please note the tightening torque depends on enclosure type. View list (.xls) >>

Supply 1 self-tapping screw

Close

A0306031

Self-tapping screws 0.118" x 0.236" (PZ1)
product added to your list
A0308031 Self-tapping screws 0.118" x 0.315" (PZ1)

A0308031

Self-tapping screws 0.118" x 0.315" (PZ1) Self-tapping crosshead screw (PZ1), specifically suitable for plastics. For fastenings components, boards and PCBs onto pillars.
For correct assembly please note the tightening torque depends on enclosure type. View list (.xls) >>

Supply 1 self-tapping screw

Close

A0308031

Self-tapping screws 0.118" x 0.315" (PZ1)
product added to your list

Accessory

C2299018 Case feet

C2299018

Case feet When using the case for desktop applications.

Supply 4 case feet

Close

C2299018

Case feet
product added to your list
TPE (UL 94 HB)
C2299068 PCB support

C2299068

PCB support For mounting pre-assembled PCB units. Suitable for ROBUST-BOXES width 3.150" and width 6.299".

Supply 4 PCB support, assembly kit (threaded bushes, screws)

Close

C2299068

PCB support
product added to your list
PC (UL 94 HB)
light gray RAL 7035

Customizing options for C2203001

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Color
light gray RAL 7035
Length
11.811″
300 mm
Width
7.874″
200 mm
Height
1.575″
40 mm
PCB length, top
10.394″
264 mm
PCB width, top
6.614″
168 mm
Keypad length
10.350″
262.9 mm
Keypad width
6.762″
171.75 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Miscellaneous information

Weight/1 part
444 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
