A9064107

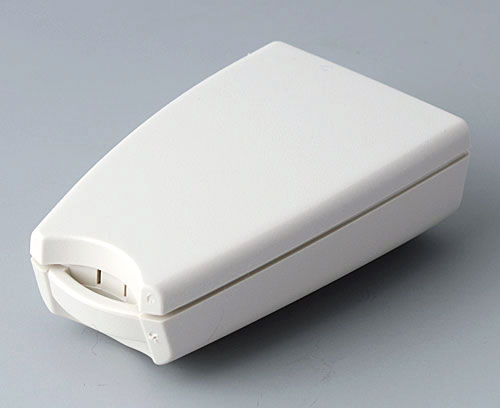

SMART-CASE XS

Miniature case composed of 2 parts with eyelet hole for a keyring. Possibilities for fixing PCBs in base part. Assembly of top and base part by screwing. Space for a 12 V round cell and small round cells.

Supply

Base and top part, 1 screw

2D PDF Drawing
3D PDF View
3D/2D download

Generate Your PDF Datasheet for A9064107

Please select the product details you would like to include in the PDF.

Add to my basket Add to my basket Add to my basket
product added to your basket
continue or open your product basket

Accessory "carrying"

A9164001 Key ring

A9164001

Key ring Version: diameter = 0.807".

Supply 1 key ring

A9164001

Key ring
product added to your basket

nickel-plated
0.81″
B9100063 Carrying strap, textile lanyard

B9100063

Carrying strap, textile lanyard Textile lanyard with loop attachment.

ATTENTION, PART TO BE DISCONTINUED:
The article is only available in limited quantities. Please ask for it!

Supply 1 lanyard

B9100063

Carrying strap, textile lanyard
product added to your basket
black
33.86″

Customizing options for A9064107

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

Material

Protection class
Color
off-white RAL 9002
Standards
RoHS compliant
REACH compliant
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Length
2.283″
58 mm
Width
1.402″
35.6 mm
Height
0.748″
19 mm
PCB length, base
1.850″
47 mm
PCB width, base
1.142″
29 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)

External Accessory - miscellaneous

Weight/1 part
11 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany

Customizing service: We can modify our enclosures to meet your specific requirements. We will deliver your enclosures fully finished and ready to use. All you have to do is install your equipment inside. View customizing options for A9064107 and don't forget to request a quotation!
