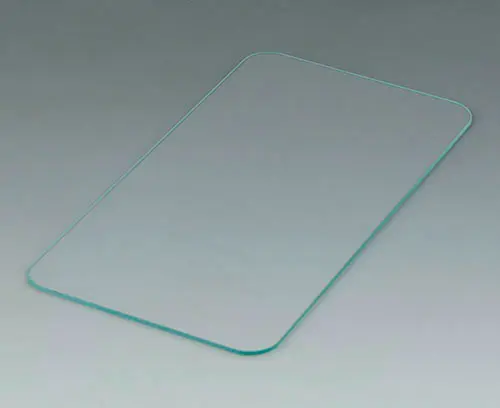

C6506013 Glass panel E155

C6506013

Glass panel E155

Glass panel for premium high-quality applications e.g. touch-screens/displays. Can be glued into the recessed top part for a perfect fit (accessory adhesive foil available). Printing on the rear is possible on request, to match the visible display section and to cover the adhesive surface. The matt ground sides with chamfered edges round off the high-quality impression.

Supply

1 glass panel, chemically hardened

  • Components/Accessories
  • View Customizing Options

System components to complete

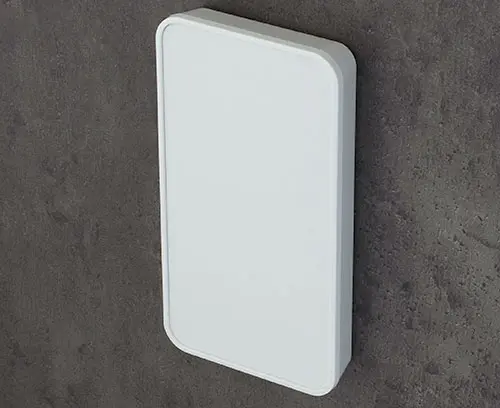

C6406107 SMART-PANEL E155

C6406107

SMART-PANEL E155 Elegant two-part plastic enclosure with flat top part. Fastening pillars for PCBs and components in the top part. Bottom part with a series of pre-moulded cut-outs for assembly on standard flush-mounted/cavity wall boxes (machining required). Secure snap-in assembly of top and bottom parts. Rational assembly of the electronics. To open the enclosures easily and practically, we recommend that you use the opening tool set, which is available as an accessory. Recessed operating area protects a membrane keyboard or glass control panel. Resin hardboard protection plate, glass panel, adhesive foil and opening tool available as accessories. Due to the high-quality material (UL 94 V-0) and the elegant design, perfect for use in modern building services technology.

Supply Top and bottom parts

Close

C6406107

SMART-PANEL E155
product added to your basket
ASA+PC (UL 94 V-0)
traffic white RAL 9016
6.10″x3.31″x0.84″
IP 40

Accessory

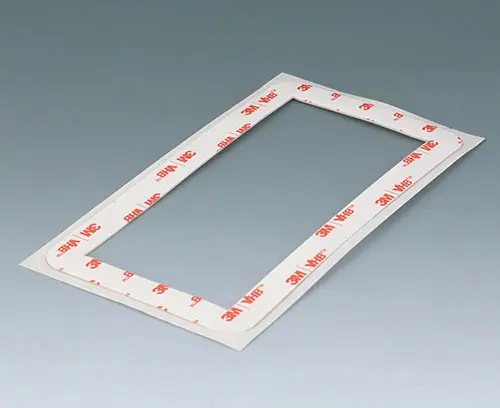

C6506012 Adhesive foil E155

C6506012

Adhesive foil E155 For secure mounting of the glass panel on the top part.

Supply 1 adhesive foil

Close

C6506012

Adhesive foil E155
product added to your basket

Customizing options for C6506013

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Purchasing Data
Material
Color
clear
Length
5.896″
149.75 mm
Width
3.100″
78.75 mm
Height
0.063″
1.6 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
46 g
Customs tariff number
(OKW product)
70060010
Country of manufacture
Other country
