A9257505 Case feet, Vers. II

A9257505

Case feet, Vers. II

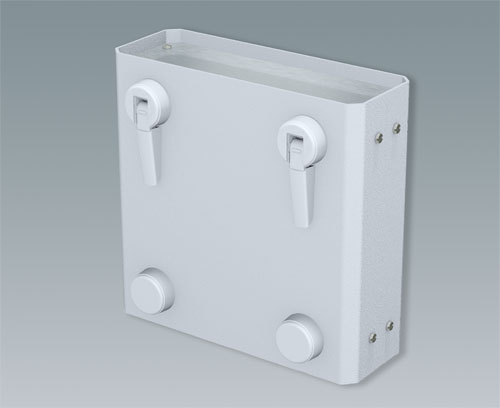

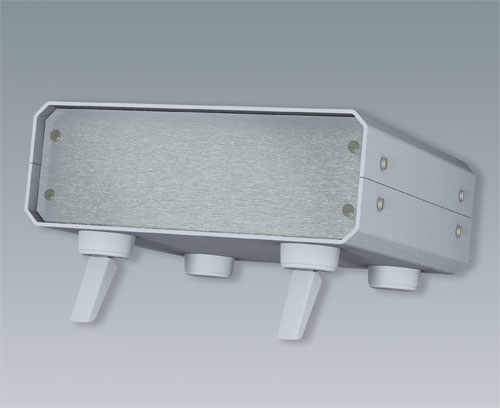

Universal case feet for all types of plastic and metal enclosures with max. 0.118" wall thickness. The tilt legs provide an ergonomic reading angle of the unit. It simply snaps into the feet section and is retractable.

Version

With tilt legs

Supply

4 foot moldings, 4 rubber inserts, 2 tilt legs, 4 self-tapping screws

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Color
light gray RAL 7035
Diameter
⌀ 1.181″
30 mm
Height
0.472″
12 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
32 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
U.K.
