B1370028 Wall suspension element for Toptec 194

B1370028

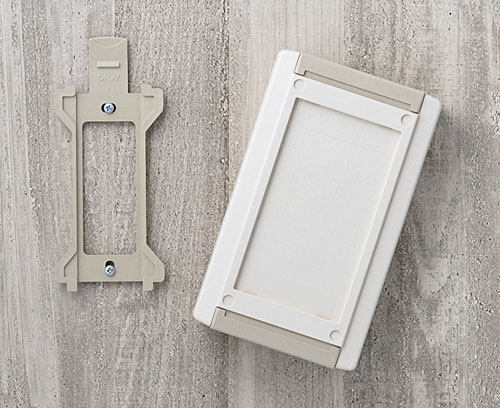

Wall suspension element for Toptec 194

Makes hidden wall mounting possible. Due to preshaped pockets, each case can be quickly and securely unlatched from the wall suspension element.

Supply

1 wall suspension element

  • To be used for
  • View Customizing Options
B1070365 TOPTEC 194 H, Vers. I

B1070365

TOPTEC 194 H, Vers. I Electronic case - high version. Case parts will be snapped in by an innovative snap-lock. Screw towers for mounting of PCBs in the top and base.

Version Without ventilations slots

Supply 1 case-top and base, 2 end panels

Close

B1070365

TOPTEC 194 H, Vers. I ABS (UL 94 HB)
off-white RAL 9002
7.64″x4.53″x2.68″
IP 40
B1070465 TOPTEC 194 H, Vers. II

B1070465

TOPTEC 194 H, Vers. II Electronic case - high version. Case parts will be snapped in by an innovative snap-lock. Screw towers for mounting of PCBs in the top and base.

Version With ventilations slots

Supply 1 case-top and base, 2 end panels

Close

B1070465

TOPTEC 194 H, Vers. II ABS (UL 94 HB)
off-white RAL 9002
7.64″x4.53″x2.68″
IP 40
B1075365 TOPTEC 194 F, Vers. I

B1075365

TOPTEC 194 F, Vers. I Electronic case - flat version. Case parts will be snapped in by an innovative snap-lock. Screw towers for mounting of PCBs in the top and base.

Version Without ventilations slots

Supply 1 case-top and base, 2 end panels

Close

B1075365

TOPTEC 194 F, Vers. I ABS (UL 94 HB)
off-white RAL 9002
7.64″x4.53″x1.81″
IP 40
B1075465 TOPTEC 194 F, Vers. II

B1075465

TOPTEC 194 F, Vers. II Electronic case - flat version. Case parts will be snapped in by an innovative snap-lock. Screw towers for mounting of PCBs in the top and base.

Version With ventilations slots

Supply 1 case-top and base, 2 end panels

Close

B1075465

TOPTEC 194 F, Vers. II ABS (UL 94 HB)
off-white RAL 9002
7.64″x4.53″x1.81″
IP 40

Customizing options for B1370028

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Color
pebble gray RAL 7032
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
18 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Germany
