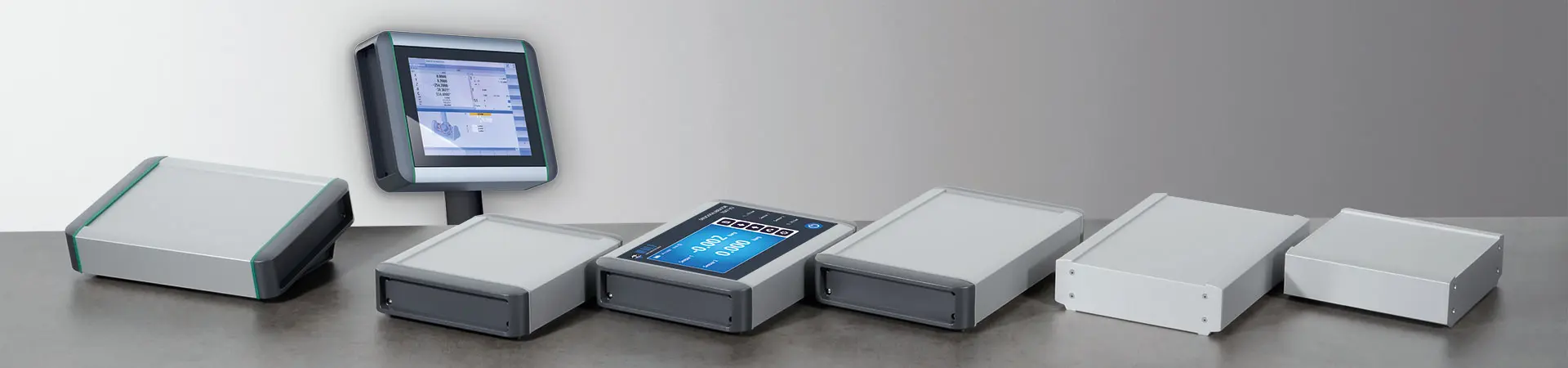

Smart-Terminal

Sophisticated aluminum profile enclosures for central control units

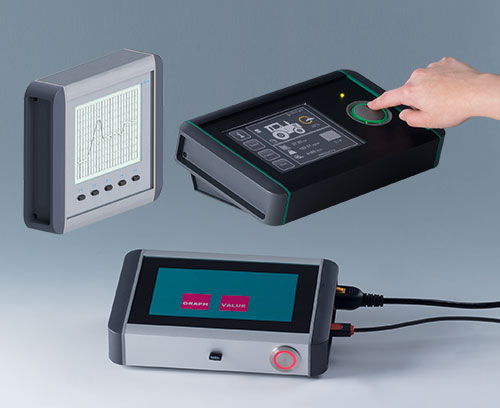

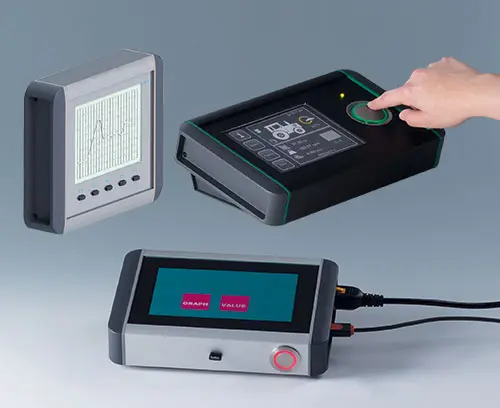

Our new SMART-TERMINAL aluminum profile enclosures feature a highly quality matt anodized finish. These robust, elegant and highly attractive cases offer plenty of space for large-volume electronic assemblies, for example touch screens, display modules, PCBs etc. A variety of technical advantages, individual profile lengths on request, and creative designer options make the SMART-TERMINAL the last word in excellence for tough industrial display enclosures.

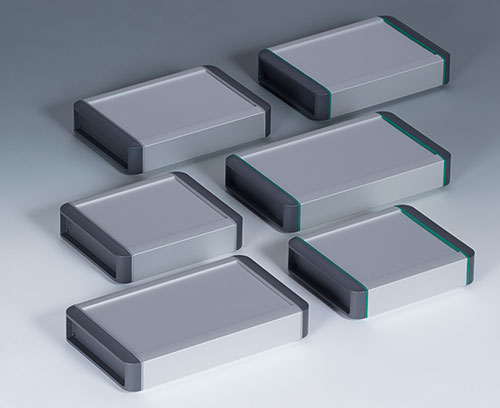

  • 3 basic enclosures in the profile lengths 6.299", 7.874" and 9.449" (overall enclosure length with end covers + 1.654" or with end plate + 0.157"), width 6.693", height 1.969"

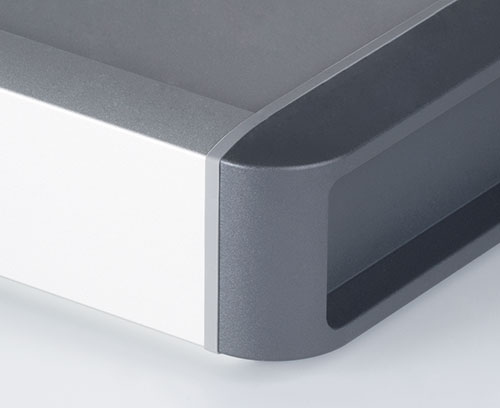

  • side covers in lava (similar to anthracite) moulded in high-quality ASA+PC-FR plastic
  • designer seals made of TPV material in volcano or green

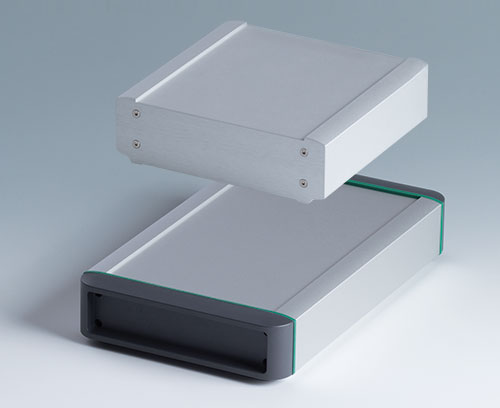

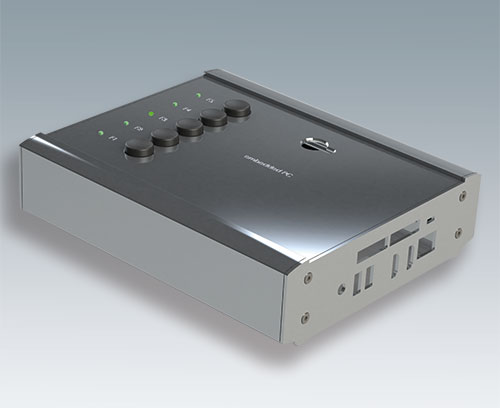

  • optionally available with a simple aluminium plate as a lateral end plate

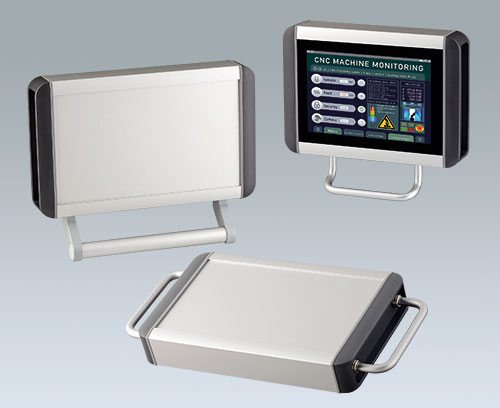

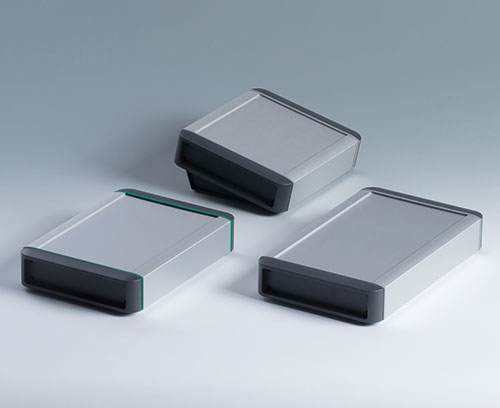

  • highly versatile design can be used as table-top, sloping front and wall-mounted enclosures

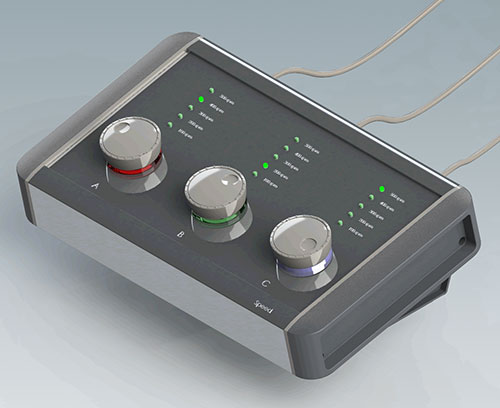

  • recessed area in top for the installation and protection of displays, membrane keypads and operating elements
    (SMART-TERMINAL 160: 5.7"/14 cm; SMART-TERMINAL 200 and 240: 7"/17.8 cm)
  • horizontal PCB guides and screw channels inside the enclosure

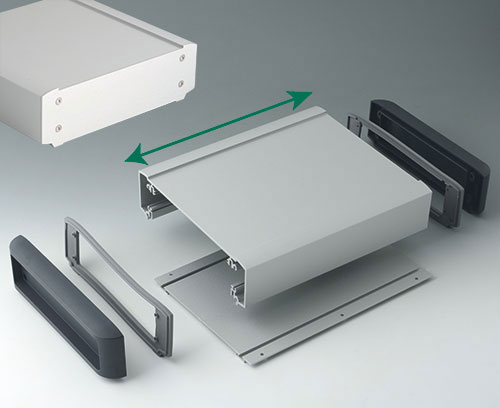

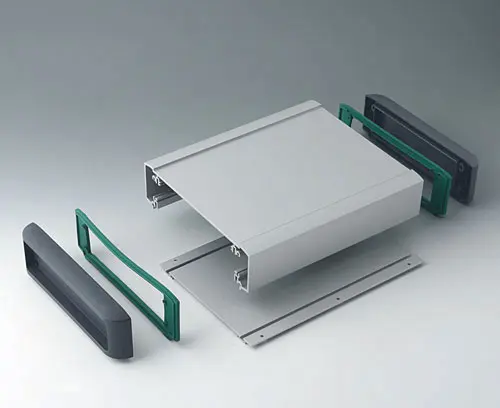

  • two-part aluminum profile facilitates the assembly of the enclosure and installation of the components, with no visible fixing screws
  • flat areas for easy installation of the interfaces
  • side covers with recessed area to protect the cables and connectors

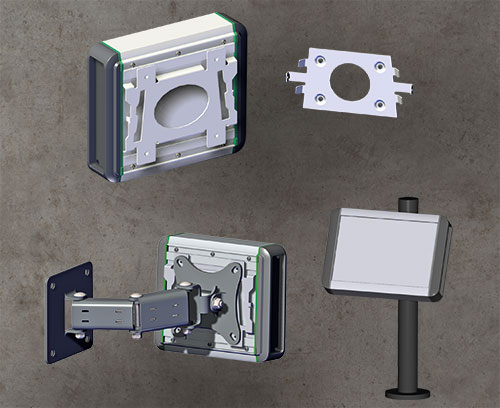

  • optional accessories: wall suspension element, case canting kit for an ergonomic reading angle of 12°, set of square-head nuts for PCB mounting
    Special sizes and versions

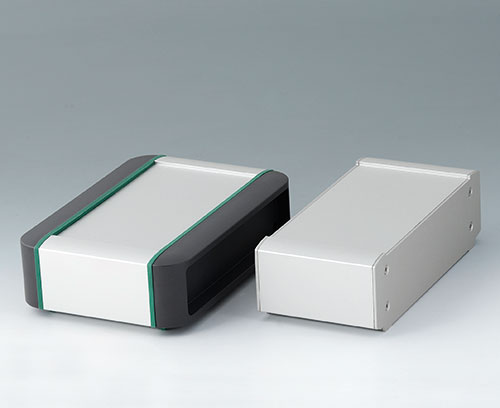

  • individual profile lengths to customer specification, minimum order quantity 100 pcs
  • on request, designer seals and covers in other colors as creative/visual features, minimum order quantity 200 pcs
Generate PDF
  • Video
  • Application Examples
TODO p

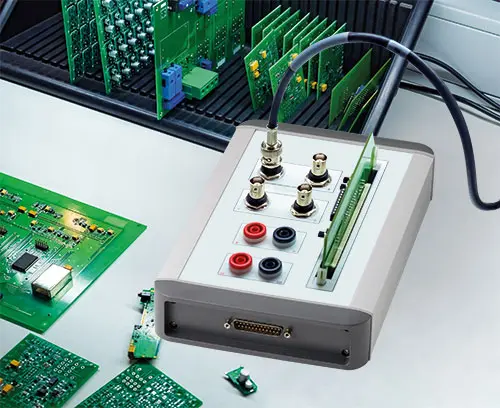

Application fields

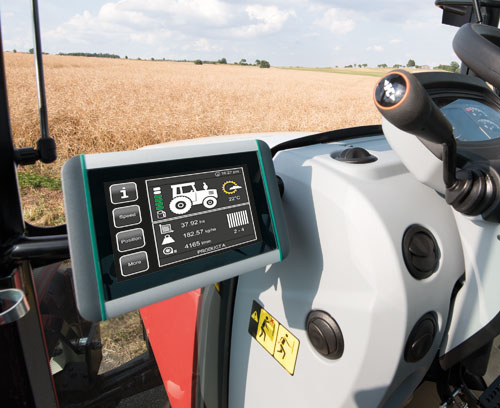

  • Peripheral and interface equipment
  • Office
  • Communications technology
  • Safety engineering
  • Biometrics
  • Medical and laboratory technology
  • Health care
  • Automation
  • Smart Factory
  • Industry 4.0
  • Gateways
  • Measurement and control engineering
  • Select Versions
  • Accessories
  • Catalog Documents
  • View Customizing Options

Select which version/size you want and click "select".



Complete enclosure

SMART-TERMINAL complete enclosure

System components for individual combinations

SMART-TERMINAL system components for individual combinations

A0330080 Screw M3 x 3.150" (T10)

A0330080

Screw M3 x 3.150" (T10) For fastening PCBs and board assemblies on the top profile of the SMART-TERMINAL enclosures.

Supply 1 screw

Close

A0330080

Screw M3 x 3.150" (T10) Stainless steel
A0399T10 Torx T10 screwdriver

A0399T10

Torx T10 screwdriver Screwdriver with ergonomic handle for reliably turning, tightening and loosening Torx T10 type screws. (original can deviate from photo)

Supply 1 screwdriver

Close

A0399T10

Torx T10 screwdriver
A9209229 Anti-slide feet 0.335" x 0.087"

A9209229

Anti-slide feet 0.335" x 0.087" For SMART-TERMINAL enclosures fitted with the aluminum end plates.
These self-adhesive rubber feet ensure stable positioning and/or make sure the enclosure does not slip.
4 rubber feet required per enclosure.

Supply 2 rubber feet

Close

A9209229

Anti-slide feet 0.335" x 0.087" black
B3500001 Set of M3 square-head nuts

B3500001

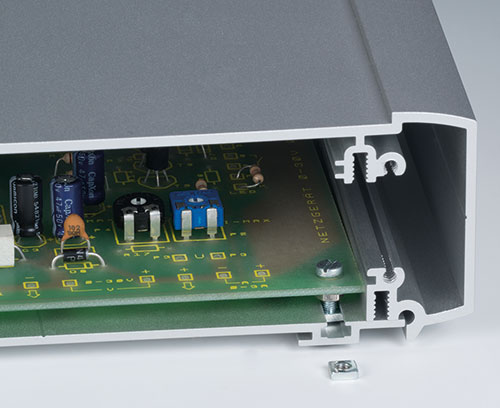

Set of M3 square-head nuts For mounting a PCB or mounting plate on the base profile of the SMART-TERMINAL enclosure. The square-head nuts can be positioned anywhere within the T-grooves in the base profile, depending on the installation configuration.

Supply 4 M3 square-head nuts

Close

B3500001

Set of M3 square-head nuts Steel
B3507020 Wall suspension element

B3507020

Wall suspension element Two-piece design for secure and flush mounting of the SMART-TERMINAL enclosure.

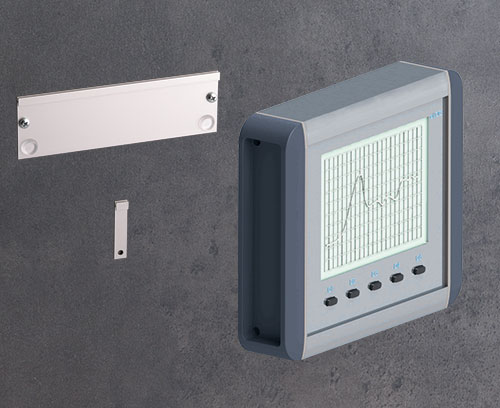

Installation: Fix the anti-slip pads supplied (to prevent the enclosure from being pushed to the side) on the wall suspension element, and then screw the wall suspension element to the wall, or a flat machine front panel. Insert the tongue on the back of the enclosure, in the centre, and hang the enclosure onto the wall suspension element and mount on the wall or similar with a screw (not supplied).

Supply 1 wall suspension element, 1 wall suspension tongue, 2 anti-slip pads (self-adhesive)

Close

B3507020

Wall suspension element Aluminum
B3507030 Case canting kit

B3507030

Case canting kit Cants the enclosure by 12° to provide an ergonomic angle for reading displays and operating the device on a table. The rubber feet included in the supply ensure that the desk-top enclosure does not slip.
Rational assembly – no additional screw connection needed: when the enclosure is being assembled, the case canting moldings are pushed into the base profile and automatically fixed by the side covers.

Supply 2 canting stands, 4 rubber feet

Close

B3507030

Case canting kit ASA+PC-FR (UL 94 V-0)
lava
