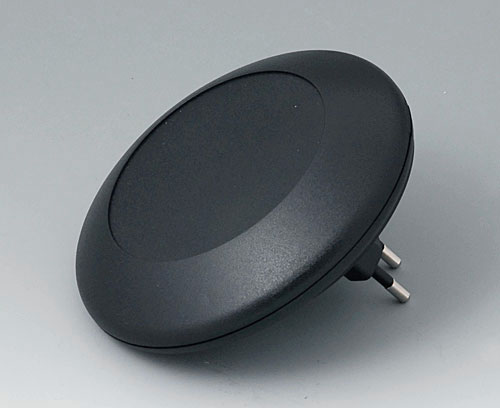

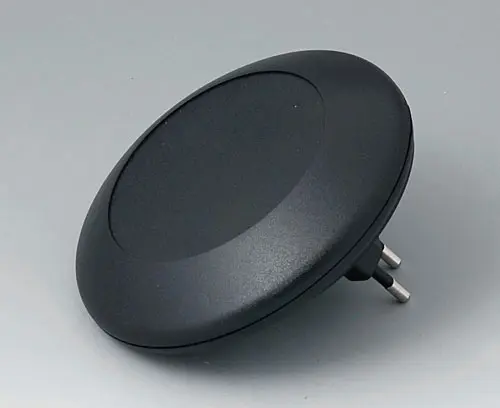

B5011229

ART-CASE R110 F

Electronic case with EURO plug section according to DIN VDE 0620 part 101. Live parts ABS/PC V-0. Top with recessed area for membrane keyboards.
Not suitable for sockets with integrated, increased protection against contact!

Version

Bottom part "inclined" with plug section

Supply

1 bottom part, 1 plug section and 1 top part R110 F, assembly kit

  • Components/Accessories
  • View Customizing Options

Accessory "screws"

AltText

B5111201

Set of screws Screw kit for mounting PCBs. Diameter 0.098" x 0.197", type PZ1.

Supply 4 screws

Close

B5111201

Set of screws
product added to your basket

Customizing options for B5011229

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Material
PC+ABS (UL 94 V-0)
Plug section
ABS (UL 94 HB)
Bottom and top part
Protection class
Color
black RAL 9005
Standards
The degree(s) of protection listed refer to the empty standard enclosures (without any modifications) and are in compliance with the EN 60529 standard.
Diameter
⌀ 4.331″
110 mm
Height
1.496″
38 mm
Keypad diameter
⌀ 2.835″
72 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

3D-Models (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
67 g
Customs tariff number
(OKW product)
85480090
Country of manufacture
Germany
