Accessories for enclosures
B6012061
DIN-MODULAR CASE TYPE A
Case and front frame are one single piece injection molded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. With guide ridges for slide-in PCB mounting on 2 sides. Corresponding to DIN IEC 61554.
Supply1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation
Generate Your PDF Datasheet for B6012061
Please select the product details you would like to include in the PDF.
Accessory to complete
B6112111
Supply 1 front panel
B6112111
Front panelmatt anodized
1.72″x1.72″x0.06″
B6112112
Supply 1 rear panel
B6112112
Rear panelmatt anodized
1.66″x1.17″x0.04″
B6112221
Supply 1 front panel
B6112221
Front panelblack RAL 9005
1.72″x1.72″x0.08″

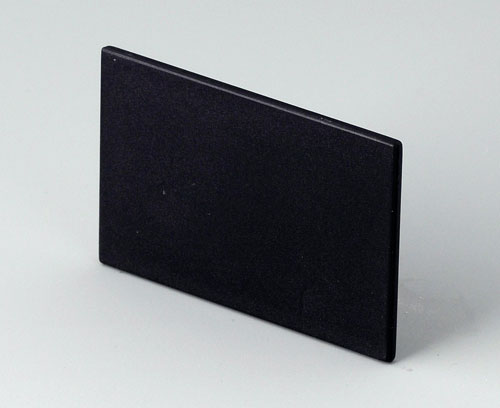

B6112222
Supply 1 rear panel
B6112222
Rear panelblack RAL 9005
1.67″x1.17″x0.07″
B6112331
Supply 1 front panel
B6112331
Front paneltransparent
1.72″x1.72″x0.08″
B6112341
Supply 1 front panel
B6112341
Front panelred transparent
1.72″x1.72″x0.08″
Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN ISO 20457)
- PDF-File (without registration) 157 KB
- AutoCAD DWG-File 298 KB
- AutoCAD DXF-File 903 KB
- 3D PDF View (Acrobat Reader) (turn the product 360°, blind components out for inside view, view accessories...) 100 KB
(OKW product)
Customizing service: We can modify our enclosures to meet your specific requirements. We will deliver your enclosures fully finished and ready to use. All you have to do is install your equipment inside. View customizing options for B6012061 and don't forget to request a quotation!
