DIN-MODULAR CASES TYPE A

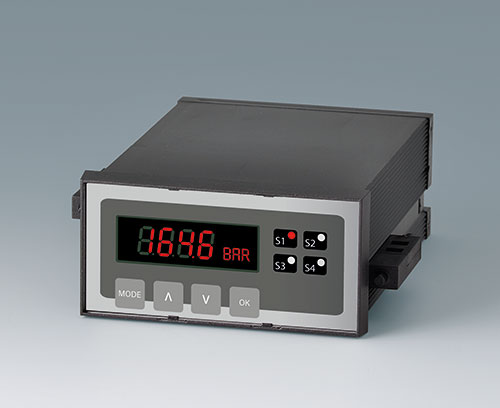

DIN-Modular Cases Type A

Versatile panel mount DIN boxes

Our TYPE A DIN-MODULAR plastic enclosures are designed according to DIN IEC 61554*, and feature snap-together assembly for faster installation, unlike conventional DIN boxes which require assembly by screws.

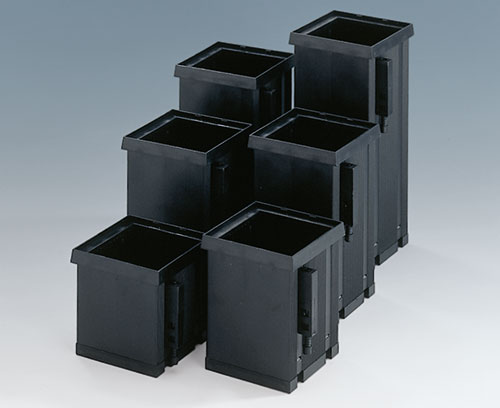

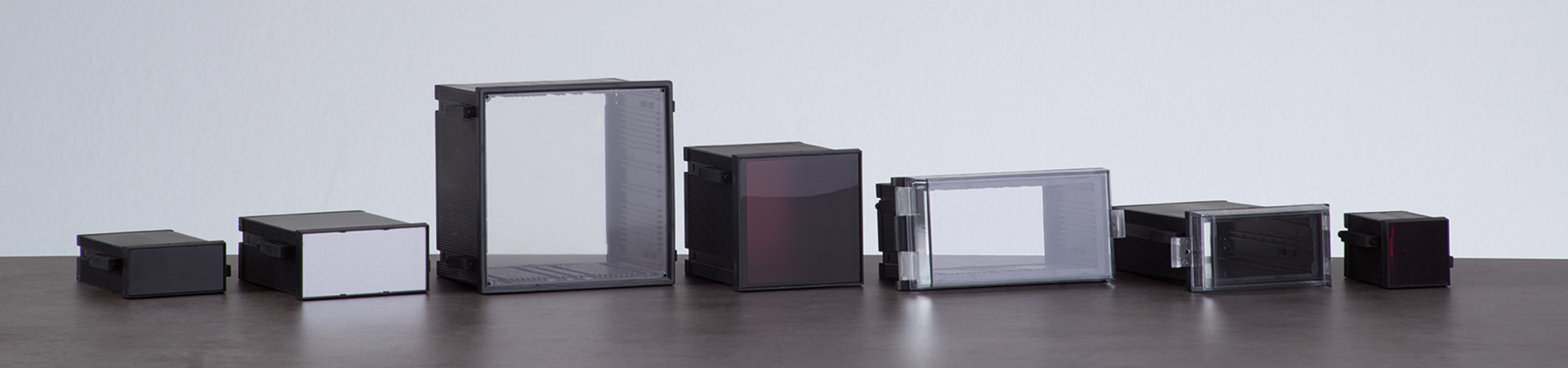

  • seven standard dimensions  2.835" x 1.417", 1.890" x 1.890", 3.780" x 1.890", 2.835" x 2.835", 3.780" x 3.780"*, 5.669" x 2.835"* and 5.669" x 5.669" with variable case depths  (*does not correspond exactly to DIN IEC 61554)
  • material corresponds to UL 94 V-0: self-extinguishing and shock resistant; high standard of mechanical and electrical properties
  • fixing of the PCBs by the rear frame
  • fast and secure snap-together assembly

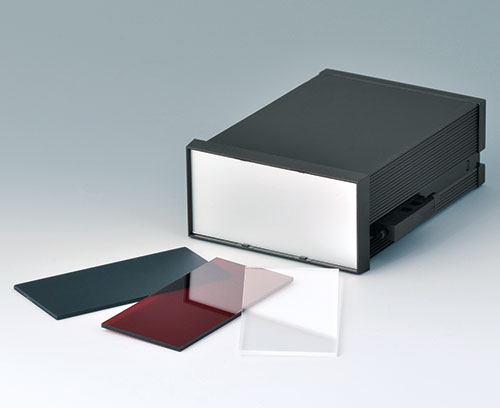

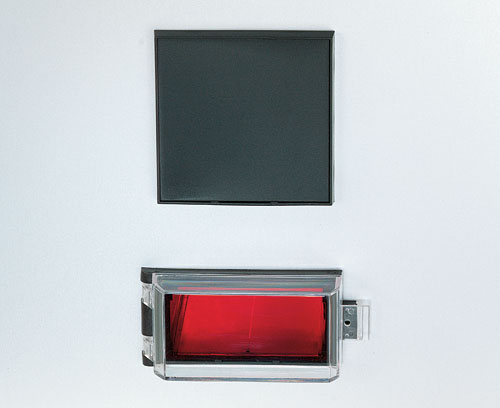

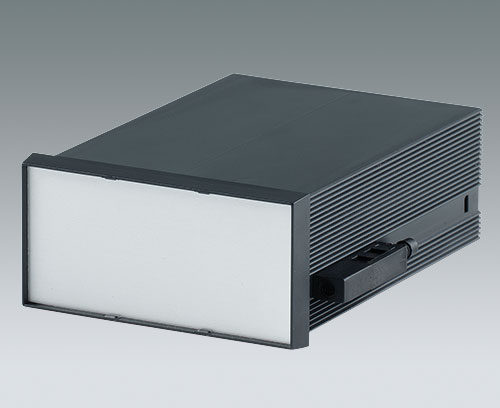

  • range of front and rear panels

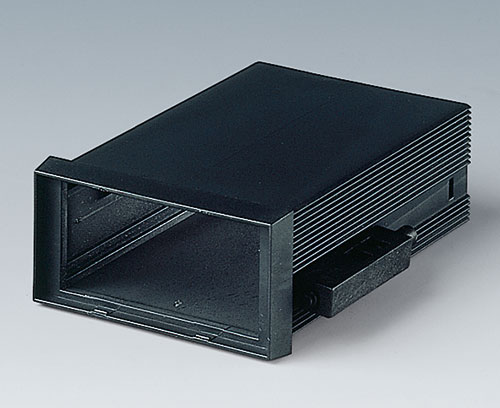

  • fastening elements for mounting the control panels included
  • advantage of the design principle is the implementation of optional case length to match the application exactly

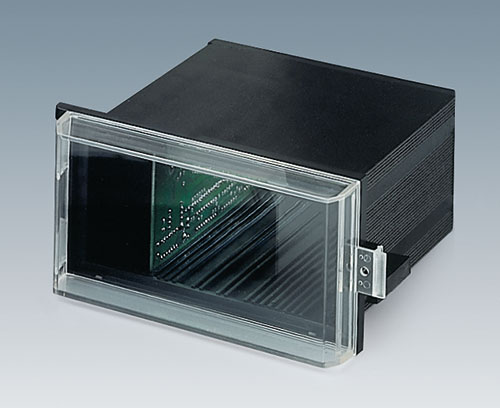

  • transparent cover protects display and operating elements (sizes 3.780" x 1.890" to 5.669" x 5.669")
  • PCB guides on two or all four internal faces
  • protection class < IP 40

Application fields

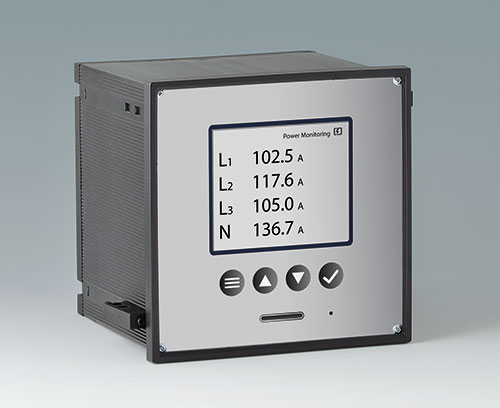

  • Measuring, control and detection devices mounted to a large control panel, or for individual installation
  • Select Versions
  • Accessories
  • Catalog Documents
  • View Customizing Options

Select which version/size you want and click "select".



Enclosures

DIN-MODULAR CASE Type A

B6112111 Front panel

B6112111

Front panel Front panel for DIN-MODULAR CASE 1.890" x 1.890".

Supply 1 front panel

Close

B6112111

Front panel Aluminum
matt anodized
1.72″x1.72″x0.06″
B6112112 Rear panel

B6112112

Rear panel Rear panel for DIN-MODULAR CASE 1.890" x 1.890".

Supply 1 rear panel

Close

B6112112

Rear panel Aluminum
matt anodized
1.66″x1.17″x0.04″
B6112221 Front panel

B6112221

Front panel Front panel for DIN-MODULAR CASE 1.890" x 1.890".

Supply 1 front panel

Close

B6112221

Front panel PPO (UL 94 V-0)
black RAL 9005
1.72″x1.72″x0.08″
B6112222 Rear panel

B6112222

Rear panel Rear panel for DIN-MODULAR CASE 1.890" x 1.890".

Supply 1 rear panel

Close

B6112222

Rear panel PPO (UL 94 V-0)
black RAL 9005
1.67″x1.17″x0.07″
B6112331 Front panel

B6112331

Front panel Front panel for DIN-MODULAR CASE 1.890" x 1.890".

Supply 1 front panel

Close

B6112331

Front panel Acrylic glass
transparent
1.72″x1.72″x0.08″
B6112341 Front panel

B6112341

Front panel Front panel for DIN-MODULAR CASE 1.890" x 1.890".

Supply 1 front panel

Close

B6112341

Front panel Acrylic glass
red transparent
1.72″x1.72″x0.08″
B6112451 Front panel

B6112451

Front panel Front panel permeable to infra-red light for DIN-MODULAR CASE 1.890" x 1.890".

Supply 1 front panel

Close

B6112451

Front panel PC (IR)
1.72″x1.72″x0.08″
B6121111 Front panel

B6121111

Front panel Front panel for DIN-MODULAR CASE 2.835" x 1.417".

Supply 1 front panel

Close

B6121111

Front panel Aluminum
matt anodized
2.67″x1.24″x0.06″

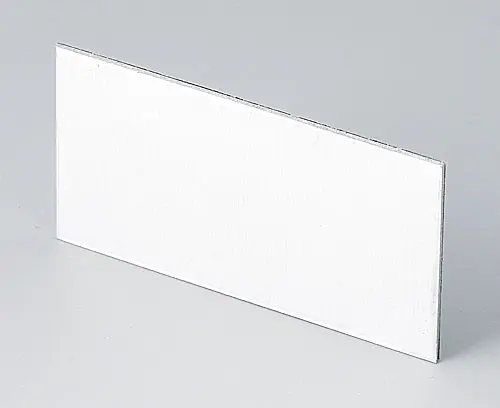

B6121112 Rear panel

B6121112

Rear panel Rear panel for DIN-MODULAR CASE 2.835" x 1.417".

Supply 1 rear panel

Close

B6121112

Rear panel Aluminum
matt anodized
2.27″x1.13″x0.04″
B6121221 Front panel

B6121221

Front panel Front panel for DIN-MODULAR CASE 2.835" x 1.417".

Supply 1 front panel

Close

B6121221

Front panel PPO (UL 94 V-0)
black RAL 9005
2.67″x1.25″x0.08″
B6121222 Rear panel

B6121222

Rear panel Rear panel for DIN-MODULAR CASE 2.835" x 1.417".

Supply 1 rear panel

Close

B6121222

Rear panel PPO (UL 94 V-0)
black RAL 9005
2.27″x1.13″x0.06″
B6121331 Front panel

B6121331

Front panel Front panel for DIN-MODULAR CASE 2.835" x 1.417".

Supply 1 front panel

Close

B6121331

Front panel Acrylic glass
transparent
2.67″x1.24″x0.08″
B6121341 Front panel

B6121341

Front panel Front panel for DIN-MODULAR CASE 2.835" x 1.417".

Supply 1 front panel

Close

B6121341

Front panel Acrylic glass
red transparent
2.67″x1.24″x0.08″
B6121451 Front panel

B6121451

Front panel Front panel permeable to infra-red light for DIN-MODULAR CASE 2.835" x 1.417".

Supply 1 front panel

Close

B6121451

Front panel PC (IR)
2.67″x1.25″x0.08″
B6123111 Font panel

B6123111

Font panel Front panel for DIN-MODULAR CASE 2.835" x 2.835".

Supply 1 front panel

Close

B6123111

Font panel Aluminum
matt anodized
2.66″x2.66″x0.06″
B6123112 Rear panel

B6123112

Rear panel Rear panel for DIN-MODULAR CASE 2.835" x 2.835".

Supply 1 rear panel

Close

B6123112

Rear panel Aluminum
matt anodized
2.51″x1.93″x0.04″
B6123221 Front panel

B6123221

Front panel Front panel for DIN-MODULAR CASE 2.835" x 2.835".

Supply 1 front panel

Close

B6123221

Front panel PPO (UL 94 V-0)
black RAL 9005
2.66″x2.66″x0.08″
B6123222 Rear panel

B6123222

Rear panel Rear panel for DIN-MODULAR CASE 2.835" x 2.835".

Supply 1 rear panel

Close

B6123222

Rear panel PPO (UL 94 V-0)
black RAL 9005
2.51″x1.94″x0.07″
B6123331 Front panel

B6123331

Front panel Front panel for DIN-MODULAR CASE 2.835" x 2.835".

Supply 1 front panel

Close

B6123331

Front panel Acrylic glass
transparent
2.66″x2.66″x0.08″
B6123341 Front panel

B6123341

Front panel Front panel for DIN-MODULAR CASE 2.835" x 2.835".

Supply 1 front panel

Close

B6123341

Front panel Acrylic glass
red transparent
2.66″x2.66″x0.08″
B6123451 Front panel

B6123451

Front panel Front panel permeable to infra-red light for DIN-MODULAR CASE 2.835" x 2.835".

Supply 1 front panel

Close

B6123451

Front panel PC (IR)
2.66″x2.66″x0.08″
B6123533 Protection cover

B6123533

Protection cover Protection cover for DIN-MODULAR CASE 2.835" x 2.835".

Supply 1 protection cover

Close

B6123533

Protection cover PC
transparent
B6132111 Front panel

B6132111

Front panel Front panel for DIN-MODULAR CASE 3.780" x 1.890".

Supply 1 front panel

Close

B6132111

Front panel Aluminum
matt anodized
3.60″x1.71″x0.06″
B6132112 Rear panel

B6132112

Rear panel Rear panel for DIN-MODULAR CASE 3.780" x 1.890".

Supply 1 rear panel

Close

B6132112

Rear panel Aluminum
matt anodized
2.89″x1.56″x0.04″
B6132221 Front panel

B6132221

Front panel Front panel for DIN-MODULAR CASE 3.780" x 1.890".

Supply 1 front panel

Close

B6132221

Front panel PPO (UL 94 V-0)
black RAL 9005
3.61″x1.71″x0.08″
B6132222 Rear panel

B6132222

Rear panel Rear panel for DIN-MODULAR CASE 3.780" x 1.890".

Supply 1 rear panel

Close

B6132222

Rear panel PPO (UL 94 V-0)
black RAL 9005
2.90″x1.56″x0.07″
B6132331 Front panel

B6132331

Front panel Front panel for DIN-MODULAR CASE 3.780" x 1.890".

Supply 1 front panel

Close

B6132331

Front panel Acrylic glass
transparent
3.60″x1.71″x0.08″
B6132341 Front panel

B6132341

Front panel Front panel for DIN-MODULAR CASE 3.780" x 1.890".

Supply 1 front panel

Close

B6132341

Front panel Acrylic glass
red transparent
3.60″x1.71″x0.08″
B6132451 Front panel

B6132451

Front panel Front panel permeable to infra-red light for DIN-MODULAR CASE 3.780" x 1.890".

Supply 1 front panel

Close

B6132451

Front panel PC (IR)
3.61″x1.71″x0.08″
B6132533 Protection cover

B6132533

Protection cover Protection cover for DIN-MODULAR CASE 3.780" x 1.890".

Supply 1 protection cover

Close

B6132533

Protection cover PC
transparent
B6134111 Front panel

B6134111

Front panel Front panel for DIN-MODULAR CASE 3.780" x 3.780".

Supply 1 front panel

Close

B6134111

Front panel Aluminum
matt anodized
3.57″x3.57″x0.06″
B6134112 Rear panel

B6134112

Rear panel Rear panel for DIN-MODULAR CASE 3.780" x 3.780".

Supply 1 rear panel

Close

B6134112

Rear panel Aluminum
matt anodized
3.41″x2.82″x0.06″
B6134221 Front panel

B6134221

Front panel Front panel for DIN-MODULAR CASE 3.780" x 3.780".

Supply 1 front panel

Close

B6134221

Front panel PPO (UL 94 V-0)
black RAL 9005
3.57″x3.57″x0.08″
B6134222 Rear panel

B6134222

Rear panel Rear panel for DIN-MODULAR CASE 3.780" x 3.780".

Supply 1 rear panel

Close

B6134222

Rear panel PPO (UL 94 V-0)
black RAL 9005
3.42″x2.83″x0.07″
B6134331 Front panel

B6134331

Front panel Front panel for DIN-MODULAR CASE 3.780" x 3.780".

Supply 1 front panel

Close

B6134331

Front panel Acrylic glass
transparent
3.57″x3.57″x0.09″
B6134341 Front panel

B6134341

Front panel Front panel for DIN-MODULAR CASE 3.780" x 3.780".

Supply 1 front panel

Close

B6134341

Front panel Acrylic glass
red transparent
3.57″x3.57″x0.08″
B6134451 Front panel

B6134451

Front panel Front panel permeable to infra-red light for DIN-MODULAR CASE 3.780" x 3.780".

Supply 1 front panel

Close

B6134451

Front panel PC (IR)
3.57″x3.57″x0.09″
B6134533 Protection cover

B6134533

Protection cover Protection cover for DIN-MODULAR CASE 3.780" x 3.780".

Supply 1 protection cover

Close

B6134533

Protection cover PC
transparent
B6143111 Front panel

B6143111

Front panel Front panel for DIN-MODULAR CASE 5.669" x 2.835".

Supply 1 front panel

Close

B6143111

Front panel Aluminum
matt anodized
5.48″x2.65″x0.06″
B6143112 Rear panel

B6143112

Rear panel Rear panel for DIN-MODULAR CASE 5.669" x 2.835".

Supply 1 rear panel

Close

B6143112

Rear panel Aluminum
matt anodized
4.68″x2.46″x0.06″
B6143221 Front panel

B6143221

Front panel Front panel for DIN-MODULAR CASE 5.669" x 2.835".

Supply 1 front panel

Close

B6143221

Front panel PPO (UL 94 V-0)
black RAL 9005
5.48″x2.66″x0.08″
B6143222 Rear panel

B6143222

Rear panel Rear panel for DIN-MODULAR CASE 5.669" x 2.835".

Supply 1 rear panel

Close

B6143222

Rear panel PPO (UL 94 V-0)
black RAL 9005
4.69″x2.47″x0.08″
B6143331 Front panel

B6143331

Front panel Front panel for DIN-MODULAR CASE 5.669" x 2.835".

Supply 1 front panel

Close

B6143331

Front panel Acrylic glass
transparent
5.48″x2.65″x0.08″
B6143341 Front panel

B6143341

Front panel Front panel for DIN-MODULAR CASE 5.669" x 2.835".

Supply 1 front panel

Close

B6143341

Front panel Acrylic glass
red transparent
5.48″x2.65″x0.08″
B6143451 Front panel

B6143451

Front panel Front panel permeable to infra-red light for DIN-MODULAR CASE 5.669" x 2.835".

Supply 1 front panel

Close

B6143451

Front panel PC (IR)
5.48″x2.65″x0.08″
B6143533 Protection cover

B6143533

Protection cover Protection cover for DIN-MODULAR CASE 5.669" x 2.835".

Supply 1 protection cover

Close

B6143533

Protection cover PC
transparent
B6145111 Front panel

B6145111

Front panel Front panel for DIN-MODULAR CASE 5.669" x 5.669".

Supply 1 front panel, 4 screws

Close

B6145111

Front panel Aluminum
matt anodized
5.43″x5.43″x0.06″
B6145112 Rear panel

B6145112

Rear panel Rear panel for DIN-MODULAR CASE 5.669" x 5.669".

Supply 1 rear panel

Close

B6145112

Rear panel Aluminum
matt anodized
5.17″x4.67″x0.06″
B6145331 Front panel

B6145331

Front panel Front panel for DIN-MODULAR CASE 5.669" x 5.669".

Supply 1 front panel, 4 screws

Close

B6145331

Front panel Acrylic glass
transparent
5.43″x5.43″x0.12″
B6145341 Front panel

B6145341

Front panel Front panel for DIN-MODULAR CASE 5.669" x 5.669".

Supply 1 front panel, 4 screws

Close

B6145341

Front panel Acrylic glass
red transparent
5.43″x5.43″x0.12″
B6145533 Protection cover

B6145533

Protection cover Protection cover for DIN-MODULAR CASE 5.669" x 5.669".

Supply 1 protection cover, 1 sealing kit

Close

B6145533

Protection cover PC
transparent

Customizing options for DIN-Modular Cases Type A

What do you still need for your own very personal product? We can supply enclosures and tuning knobs with all necessary modifications for fitting your electronic components.
