Accessories for enclosures
B6143112
Rear panel
Rear panel for DIN-MODULAR CASE 5.669" x 2.835".
Supply1 rear panel
Generate Your PDF Datasheet for B6143112
Please select the product details you would like to include in the PDF.
Add to my basket

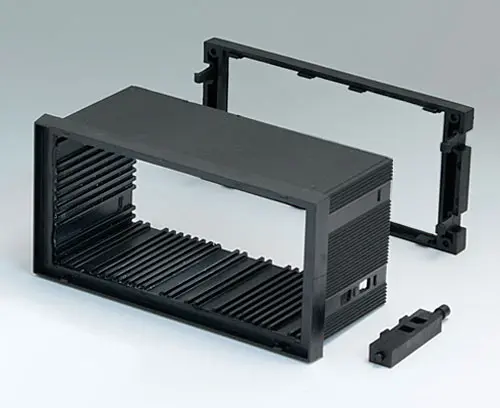

B6043011
DIN-MODULAR CASE TYPE A
Case and front frame are one single piece injection molded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. With guide ridges for slide-in PCB mounting on 4 sides. Does not correspond exactly to DIN IEC 61554.
Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation
B6043011
DIN-MODULAR CASE TYPE Aproduct added to your basket
black RAL 9005
5.67″x2.83″x2.24″
B6043021
DIN-MODULAR CASE TYPE A
Case and front frame are one single piece injection molded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. With guide ridges for slide-in PCB mounting on 4 sides. Does not correspond exactly to DIN IEC 61554.
Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation
B6043021
DIN-MODULAR CASE TYPE Aproduct added to your basket
black RAL 9005
5.67″x2.83″x2.95″
B6043031
DIN-MODULAR CASE TYPE A
Case and front frame are one single piece injection molded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. With guide ridges for slide-in PCB mounting on 4 sides. Does not correspond exactly to DIN IEC 61554.
Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation
B6043031
DIN-MODULAR CASE TYPE Aproduct added to your basket
black RAL 9005
5.67″x2.83″x3.94″

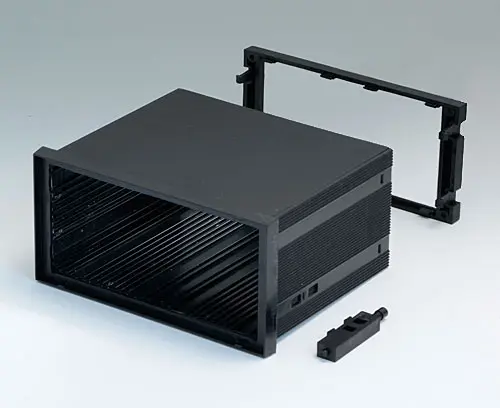

B6043041
DIN-MODULAR CASE TYPE A
Case and front frame are one single piece injection molded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. With guide ridges for slide-in PCB mounting on 4 sides. Does not correspond exactly to DIN IEC 61554.
Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation
B6043041
DIN-MODULAR CASE TYPE Aproduct added to your basket
black RAL 9005
5.67″x2.83″x4.29″
B6043061
DIN-MODULAR CASE TYPE A
Case and front frame are one single piece injection molded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. With guide ridges for slide-in PCB mounting on 4 sides. Does not correspond exactly to DIN IEC 61554.
Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation
B6043061
DIN-MODULAR CASE TYPE Aproduct added to your basket
black RAL 9005
5.67″x2.83″x4.88″

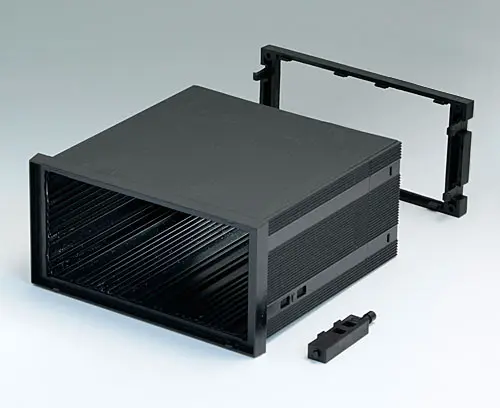

B6043071
DIN-MODULAR CASE TYPE A
Case and front frame are one single piece injection molded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. With guide ridges for slide-in PCB mounting on 4 sides. Does not correspond exactly to DIN IEC 61554.
Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation
B6043071
DIN-MODULAR CASE TYPE Aproduct added to your basket
black RAL 9005
5.67″x2.83″x5.16″
B6043091
DIN-MODULAR CASE TYPE A
Case and front frame are one single piece injection molded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. With guide ridges for slide-in PCB mounting on 4 sides. Does not correspond exactly to DIN IEC 61554.
Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation
B6043091
DIN-MODULAR CASE TYPE Aproduct added to your basket
black RAL 9005
5.67″x2.83″x6.14″
Customizing options for B6143112
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
Width
4.681″
118.9 mm
Height
2.465″
62.6 mm
Thickness
0.059″
1.5 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
18 g
Customs tariff number
(OKW product)
(OKW product)
76069200
Country of manufacture
Italy
Customizing service: We can modify our enclosures to meet your specific requirements. We will deliver your enclosures fully finished and ready to use. All you have to do is install your equipment inside. View customizing options for B6143112 and don't forget to request a quotation!
