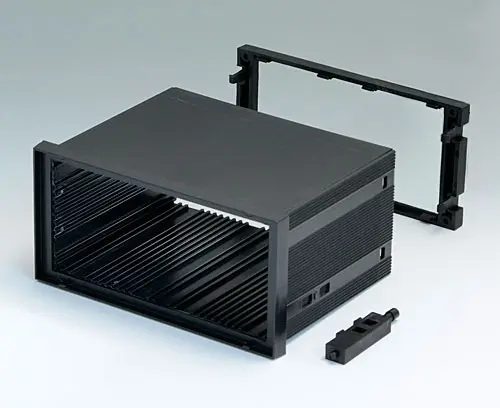

B6043031 DIN-MODULAR CASE TYPE A

B6043031

DIN-MODULAR CASE TYPE A

Case and front frame are one single piece injection molded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. With guide ridges for slide-in PCB mounting on 4 sides. Does not correspond exactly to DIN IEC 61554.

Supply

1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation

  • Components/Accessories
  • View Customizing Options

Accessory to complete

B6143111 Front panel

B6143111

Front panel Front panel for DIN-MODULAR CASE 5.669" x 2.835".

Supply 1 front panel

Close

B6143111

Front panel
product added to your list
Aluminum
matt anodized
5.48″x2.65″x0.06″
B6143112 Rear panel

B6143112

Rear panel Rear panel for DIN-MODULAR CASE 5.669" x 2.835".

Supply 1 rear panel

Close

B6143112

Rear panel
product added to your list
Aluminum
matt anodized
4.68″x2.46″x0.06″
B6143221 Front panel

B6143221

Front panel Front panel for DIN-MODULAR CASE 5.669" x 2.835".

Supply 1 front panel

Close

B6143221

Front panel
product added to your list
PPO (UL 94 V-0)
black RAL 9005
5.48″x2.66″x0.08″
B6143222 Rear panel

B6143222

Rear panel Rear panel for DIN-MODULAR CASE 5.669" x 2.835".

Supply 1 rear panel

Close

B6143222

Rear panel
product added to your list
PPO (UL 94 V-0)
black RAL 9005
4.69″x2.47″x0.08″
B6143331 Front panel

B6143331

Front panel Front panel for DIN-MODULAR CASE 5.669" x 2.835".

Supply 1 front panel

Close

B6143331

Front panel
product added to your list
Acrylic glass
transparent
5.48″x2.65″x0.08″
B6143341 Front panel

B6143341

Front panel Front panel for DIN-MODULAR CASE 5.669" x 2.835".

Supply 1 front panel

Close

B6143341

Front panel
product added to your list
Acrylic glass
red transparent
5.48″x2.65″x0.08″
B6143451 Front panel

B6143451

Front panel Front panel permeable to infra-red light for DIN-MODULAR CASE 5.669" x 2.835".

Supply 1 front panel

Close

B6143451

Front panel
product added to your list
PC (IR)
5.48″x2.65″x0.08″

Accessory "protection"

B6143533 Protection cover

B6143533

Protection cover Protection cover for DIN-MODULAR CASE 5.669" x 2.835".

Supply 1 protection cover

Close

B6143533

Protection cover
product added to your list
PC
transparent

Customizing options for B6043031

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Color
black RAL 9005
Width
5.669″
144 mm
Height
2.835″
72 mm
Depth
3.937″
100 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
160 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Italy
