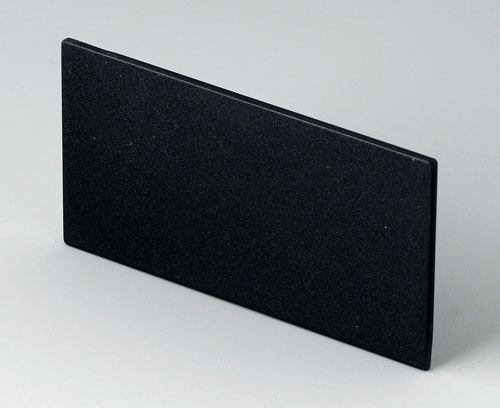

B6132222 Rear panel

B6132222

Rear panel

Rear panel for DIN-MODULAR CASE 3.780" x 1.890".

Supply

1 rear panel

  • To be used for
  • View Customizing Options

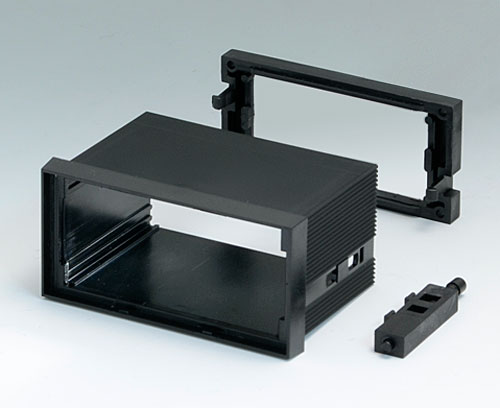

B6032011 DIN-MODULAR CASE TYPE A, Vers. I

B6032011

DIN-MODULAR CASE TYPE A, Vers. I Case and front frame are one single piece injection molded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. Corresponding to DIN IEC 61554.

Version With 2 guide ridges for mounting PCBs

Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation

Close

B6032011

DIN-MODULAR CASE TYPE A, Vers. I
product added to your basket
PPO (UL 94 V-0)
black RAL 9005
3.78″x1.89″x2.24″

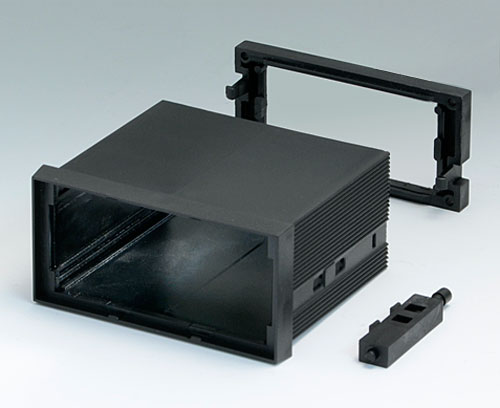

B6032021 DIN-MODULAR CASE TYPE A, Vers. I

B6032021

DIN-MODULAR CASE TYPE A, Vers. I Case and front frame are one single piece injection molded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. Corresponding to DIN IEC 61554.

Version With 2 guide ridges for mounting PCBs

Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation

Close

B6032021

DIN-MODULAR CASE TYPE A, Vers. I
product added to your basket
PPO (UL 94 V-0)
black RAL 9005
3.78″x1.89″x2.95″

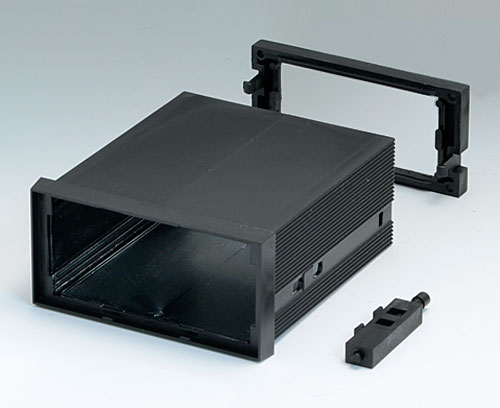

B6032031 DIN-MODULAR CASE TYPE A, Vers. I

B6032031

DIN-MODULAR CASE TYPE A, Vers. I Case and front frame are one single piece injection molded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. Corresponding to DIN IEC 61554.

Version With 2 guide ridges for mounting PCBs

Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation

Close

B6032031

DIN-MODULAR CASE TYPE A, Vers. I
product added to your basket
PPO (UL 94 V-0)
black RAL 9005
3.78″x1.89″x3.94″

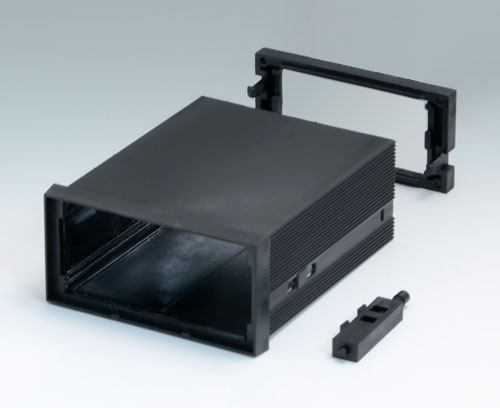

B6032041 DIN-MODULAR CASE TYPE A, Vers. I

B6032041

DIN-MODULAR CASE TYPE A, Vers. I Case and front frame are one single piece injection molded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. Corresponding to DIN IEC 61554.

Version With 2 guide ridges for mounting PCBs

Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation

Close

B6032041

DIN-MODULAR CASE TYPE A, Vers. I
product added to your basket
PPO (UL 94 V-0)
black RAL 9005
3.78″x1.89″x4.29″

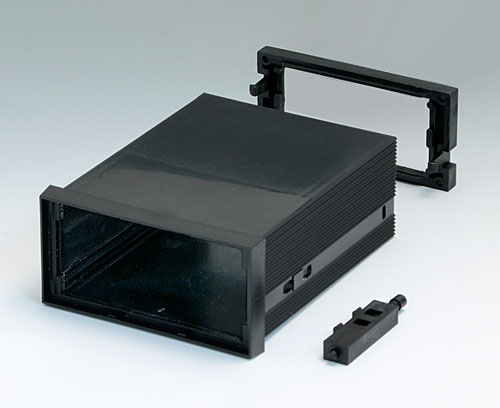

B6032051 DIN-MODULAR CASE TYPE A, Vers. I

B6032051

DIN-MODULAR CASE TYPE A, Vers. I Case and front frame are one single piece injection molded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. Corresponding to DIN IEC 61554.

Version With 2 guide ridges for mounting PCBs

Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation

Close

B6032051

DIN-MODULAR CASE TYPE A, Vers. I
product added to your basket
PPO (UL 94 V-0)
black RAL 9005
3.78″x1.89″x4.49″

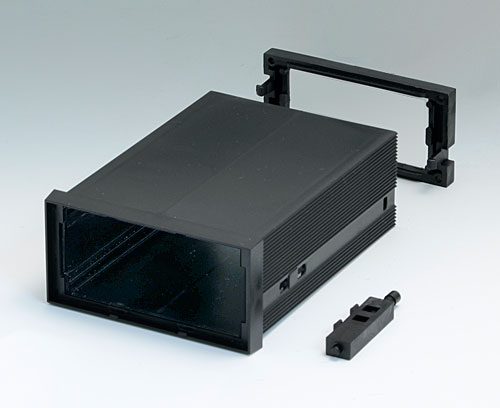

B6032061 DIN-MODULAR CASE TYPE A, Vers. I

B6032061

DIN-MODULAR CASE TYPE A, Vers. I Case and front frame are one single piece injection molded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. Corresponding to DIN IEC 61554.

Version With 2 guide ridges for mounting PCBs

Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation

Close

B6032061

DIN-MODULAR CASE TYPE A, Vers. I
product added to your basket
PPO (UL 94 V-0)
black RAL 9005
3.78″x1.89″x4.88″

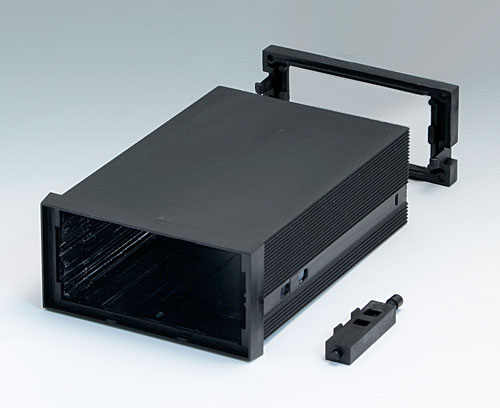

B6032072 DIN-MODULAR CASE TYPE A, Vers. II

B6032072

DIN-MODULAR CASE TYPE A, Vers. II Case and front frame are one single piece injection molded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. Corresponding to DIN IEC 61554.

Version With 3 guide ridges for mounting PCBs

Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation

Close

B6032072

DIN-MODULAR CASE TYPE A, Vers. II
product added to your basket
PPO (UL 94 V-0)
black RAL 9005
3.78″x1.89″x5.16″

Customizing options for B6132222

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Purchasing Data
Color
black RAL 9005
Width
2.898″
73.6 mm
Height
1.565″
39.75 mm
Thickness
0.067″
1.7 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
5 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Italy
