Accessories for enclosures
B6123222
Rear panel
Rear panel for DIN-MODULAR CASE 2.835" x 2.835".
Supply1 rear panel
Generate Your PDF Datasheet for B6123222
Please select the product details you would like to include in the PDF.
Add to my basket

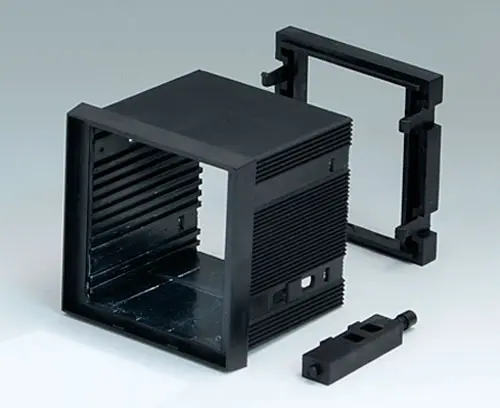

B6023011
DIN-MODULAR CASE TYPE A
Case and front frame are one single piece injection molded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. With guide ridges for slide-in PCB mounting on 2 sides. Corresponding to DIN IEC 61554.
Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation
B6023011
DIN-MODULAR CASE TYPE Aproduct added to your basket
black RAL 9005
2.83″x2.83″x2.24″
B6023021
DIN-MODULAR CASE TYPE A
Case and front frame are one single piece injection molded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. With guide ridges for slide-in PCB mounting on 2 sides. Corresponding to DIN IEC 61554.
Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation
B6023021
DIN-MODULAR CASE TYPE Aproduct added to your basket
black RAL 9005
2.83″x2.83″x2.95″

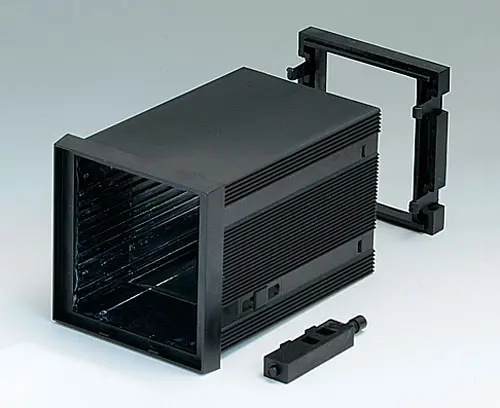

B6023031
DIN-MODULAR CASE TYPE A
Case and front frame are one single piece injection molded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. With guide ridges for slide-in PCB mounting on 2 sides. Corresponding to DIN IEC 61554.
Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation
B6023031
DIN-MODULAR CASE TYPE Aproduct added to your basket
black RAL 9005
2.83″x2.83″x3.94″
B6023061
DIN-MODULAR CASE TYPE A
Case and front frame are one single piece injection molded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. With guide ridges for slide-in PCB mounting on 2 sides. Corresponding to DIN IEC 61554.
Supply 1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation
B6023061
DIN-MODULAR CASE TYPE Aproduct added to your basket
black RAL 9005
2.83″x2.83″x4.88″
Customizing options for B6123222
What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.
Width
2.512″
63.8 mm
Height
1.937″
49.2 mm
Thickness
0.067″
1.7 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.
Weight/1 part
5 g
Customs tariff number
(OKW product)
(OKW product)
39269097
Country of manufacture
Italy
Customizing service: We can modify our enclosures to meet your specific requirements. We will deliver your enclosures fully finished and ready to use. All you have to do is install your equipment inside. View customizing options for B6123222 and don't forget to request a quotation!
