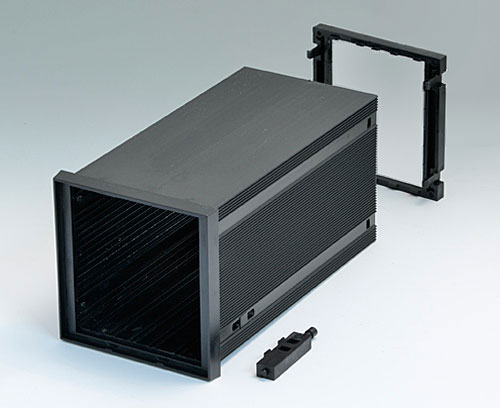

B6034102 DIN-MODULAR CASE TYPE A, Vers. II

B6034102

DIN-MODULAR CASE TYPE A, Vers. II

Case and front frame are one single piece injection molded. Rear frame as well as front and rear panels (accessory) are easily fitted by snap-on latches. Does not correspond exactly to DIN IEC 61554.

Version

With guide ridges for slide-in PCB mounting on 4 sides

Supply

1 case, 1 rear frame with snap-lock, fixing elements for switchboard installation

  • Components/Accessories
  • View Customizing Options

Accessory to complete

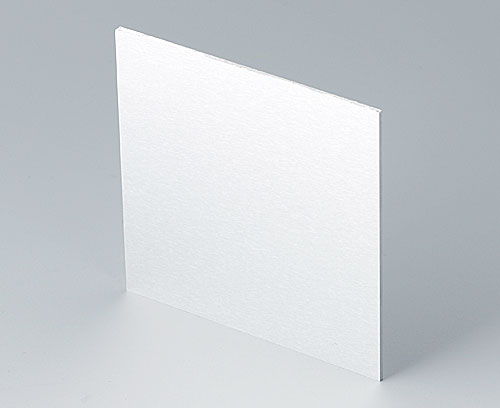

B6134111 Front panel

B6134111

Front panel Front panel for DIN-MODULAR CASE 3.780" x 3.780".

Supply 1 front panel

Close

B6134111

Front panel
product added to your basket
Aluminum
matt anodized
3.57″x3.57″x0.06″

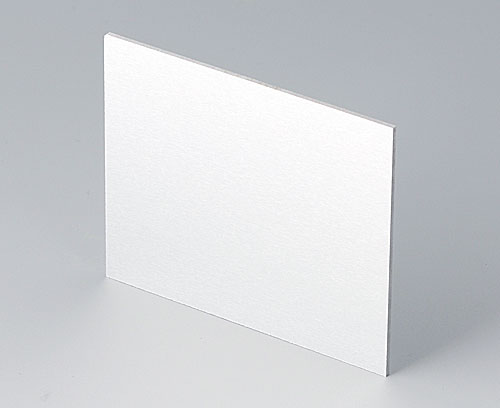

B6134112 Rear panel

B6134112

Rear panel Rear panel for DIN-MODULAR CASE 3.780" x 3.780".

Supply 1 rear panel

Close

B6134112

Rear panel
product added to your basket
Aluminum
matt anodized
3.41″x2.82″x0.06″

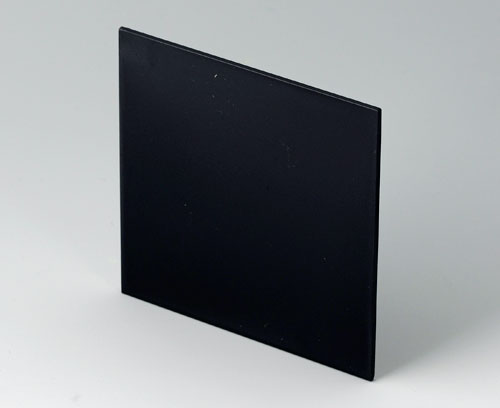

B6134221 Front panel

B6134221

Front panel Front panel for DIN-MODULAR CASE 3.780" x 3.780".

Supply 1 front panel

Close

B6134221

Front panel
product added to your basket
PPO (UL 94 V-0)
black RAL 9005
3.57″x3.57″x0.08″

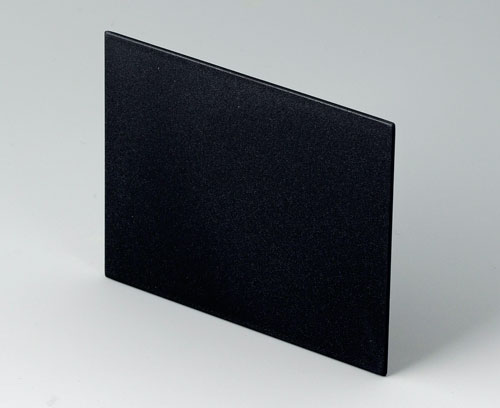

B6134222 Rear panel

B6134222

Rear panel Rear panel for DIN-MODULAR CASE 3.780" x 3.780".

Supply 1 rear panel

Close

B6134222

Rear panel
product added to your basket
PPO (UL 94 V-0)
black RAL 9005
3.42″x2.83″x0.07″

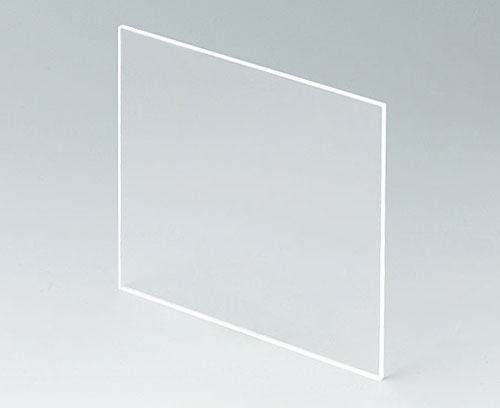

B6134331 Front panel

B6134331

Front panel Front panel for DIN-MODULAR CASE 3.780" x 3.780".

Supply 1 front panel

Close

B6134331

Front panel
product added to your basket
Acrylic glass
transparent
3.57″x3.57″x0.09″

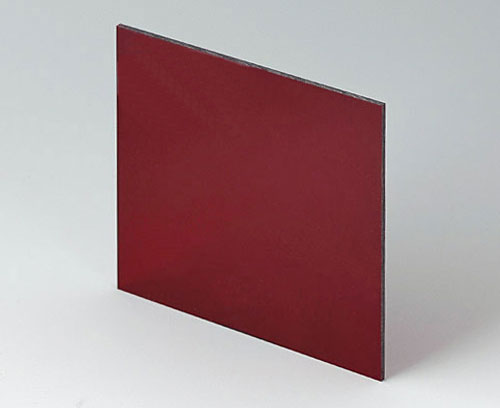

B6134341 Front panel

B6134341

Front panel Front panel for DIN-MODULAR CASE 3.780" x 3.780".

Supply 1 front panel

Close

B6134341

Front panel
product added to your basket
Acrylic glass
red transparent
3.57″x3.57″x0.08″
B6134451 Front panel

B6134451

Front panel Front panel permeable to infra-red light for DIN-MODULAR CASE 3.780" x 3.780".

Supply 1 front panel

Close

B6134451

Front panel
product added to your basket
PC (IR)
3.57″x3.57″x0.09″

Accessory "protection"

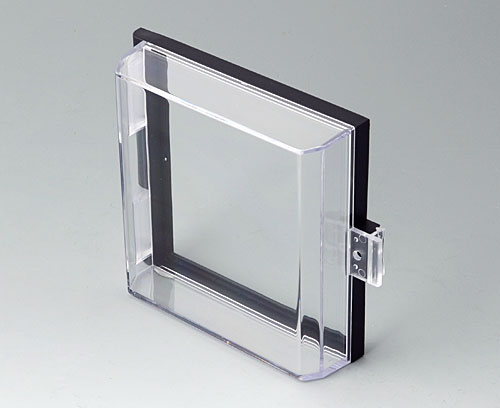

B6134533 Protection cover

B6134533

Protection cover Protection cover for DIN-MODULAR CASE 3.780" x 3.780".

Supply 1 protection cover

Close

B6134533

Protection cover
product added to your basket
PC
transparent

Customizing options for B6034102

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Color
black RAL 9005
Width
3.780″
96 mm
Height
3.780″
96 mm
Depth
7.047″
179 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
225 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Italy
