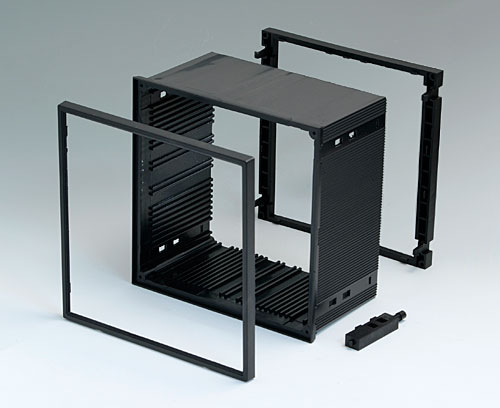

B6045021 DIN-MODULAR CASE TYPE A

B6045021

DIN-MODULAR CASE TYPE A

Case with detachable front frame. The rear frame as well as the rear panel (accessories) will be simply snapped on. The front panel will be screwed at the edges. With guide ridges for slide-in PCB mounting on 4 sides. Corresponding to DIN IEC 61554.

Supply

1 case, 1 front frame, 1 rear frame with snap-lock, fixing elements for switchboard installation

  • Components/Accessories
  • View Customizing Options

Accessory to complete

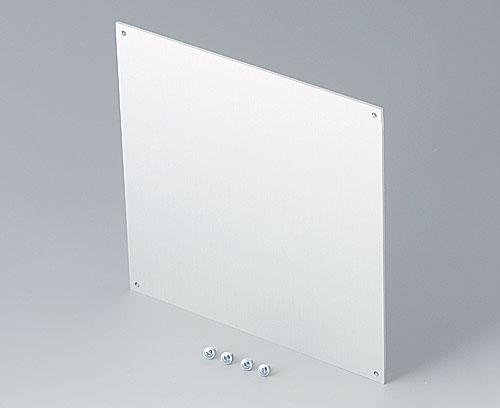

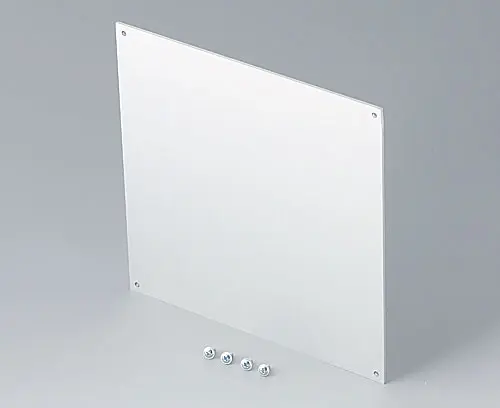

B6145111 Front panel

B6145111

Front panel Front panel for DIN-MODULAR CASE 5.669" x 5.669".

Supply 1 front panel, 4 screws

Close

B6145111

Front panel
product added to your list
Aluminum
matt anodized
5.43″x5.43″x0.06″

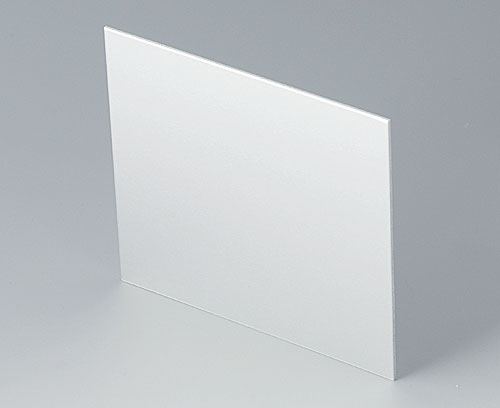

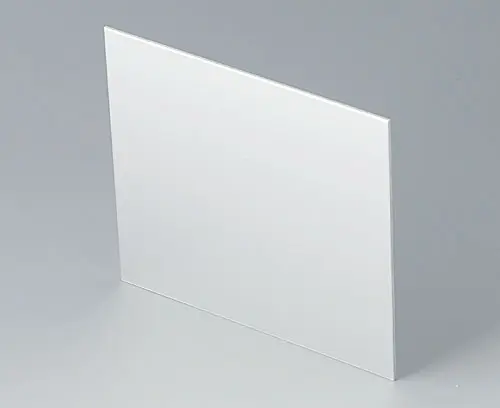

B6145112 Rear panel

B6145112

Rear panel Rear panel for DIN-MODULAR CASE 5.669" x 5.669".

Supply 1 rear panel

Close

B6145112

Rear panel
product added to your list
Aluminum
matt anodized
5.17″x4.67″x0.06″

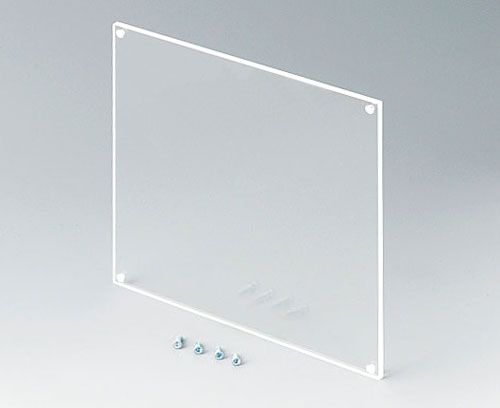

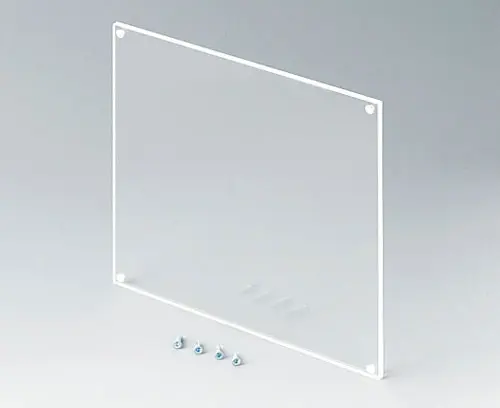

B6145331 Front panel

B6145331

Front panel Front panel for DIN-MODULAR CASE 5.669" x 5.669".

Supply 1 front panel, 4 screws

Close

B6145331

Front panel
product added to your list
Acrylic glass
transparent
5.43″x5.43″x0.12″

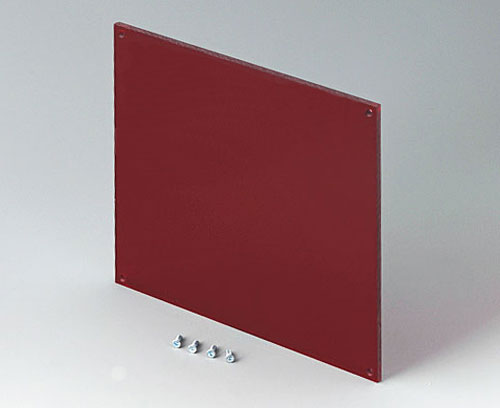

B6145341 Front panel

B6145341

Front panel Front panel for DIN-MODULAR CASE 5.669" x 5.669".

Supply 1 front panel, 4 screws

Close

B6145341

Front panel
product added to your list
Acrylic glass
red transparent
5.43″x5.43″x0.12″

Accessory "protection"

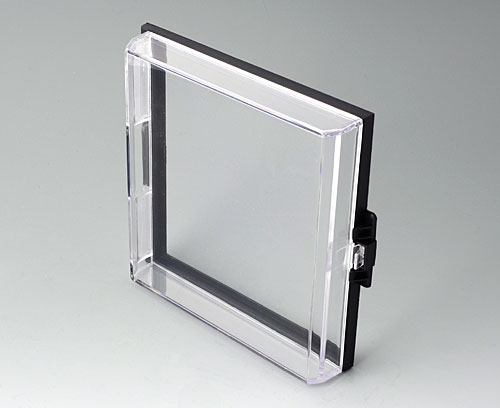

B6145533 Protection cover

B6145533

Protection cover Protection cover for DIN-MODULAR CASE 5.669" x 5.669".

Supply 1 protection cover, 1 sealing kit

Close

B6145533

Protection cover
product added to your list
PC
transparent

Customizing options for B6045021

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Color
black RAL 9005
Standards
Width
5.669″
144 mm
Height
5.669″
144 mm
Depth
2.953″
75 mm
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
196 g
Customs tariff number
(OKW product)
39269097
Country of manufacture
Italy
