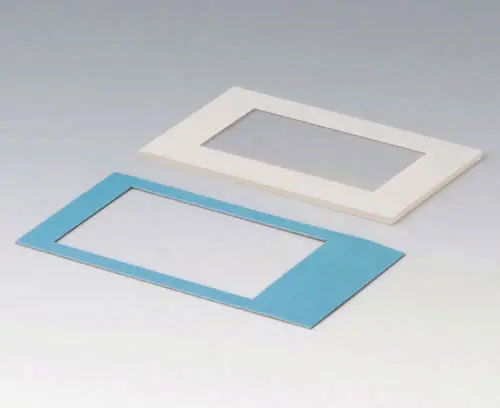

A9173407 Display window S, border off-white

A9173407

Display window S, border off-white

The display window protects the installed display and achieves protection class IP 65 within the display area. The printing matches with the visible area of the display cutout. For case version IV.

Supply

1 display window, 1 adhesive foil

  • To be used for
  • View Customizing Options
A9073407 DATEC-MOBIL-BOX S, Vers. IV

A9073407

DATEC-MOBIL-BOX S, Vers. IV Small hand-held box of attractive design. With integrated battery compartment for 2 x 1.5 V mignon cells (AA) or 1 x 9 V flat battery. Recessed operation area for protecting the input elements. Sealing for IP 65 as accessory.

Version Top with display cutout for miniature-LCDs with 4 lines x 20 characters

Supply Case-top and base, battery compartment lid, assembly kit

Close

A9073407

DATEC-MOBIL-BOX S, Vers. IV
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
5.98″x3.27″x1.32″
IP 65 opt.
A9073417 DATEC-MOBIL-BOX S, Vers. IV

A9073417

DATEC-MOBIL-BOX S, Vers. IV Small hand-held box of attractive design. Without battery compartment. Recessed operation area for protecting the input elements. Sealing for IP 65 as accessory.

Version Top with display cutout for miniature-LCDs with 4 lines x 20 characters

Supply Case-top and base, assembly kit

Close

A9073417

DATEC-MOBIL-BOX S, Vers. IV
product added to your basket
ABS (UL 94 HB)
off-white RAL 9002
5.98″x3.27″x1.32″
IP 65 opt.

Customizing options for A9173407

What else do you need to create your own personal product? We can supply our enclosures and tuning knobs fully modified to suit your electronic components and design requirements. Please advise for anything else we can do for you.

  • Technical Data
  • Drawings / Info
  • Purchasing Data
Color
transparent
Please take the dimensions from current parts. These are subject to material- and manufacturing-specific tolerances.

Assembly Instructions (Part)

Drawings (Discrepancies depend on material-specific manufacturing tolerances, e.g. DIN EN 16742)

Weight/1 part
3 g
Customs tariff number
(OKW product)
39219090
Country of manufacture
Germany
