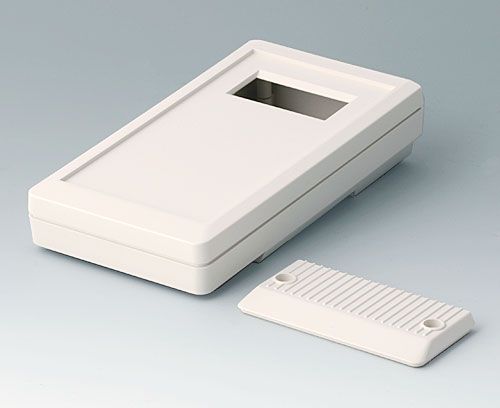

Robust IP65 handheld enclosures
Three sizes: S, M , LFor installing standard LCD modulesProtector for DATEC-MOBIL-BOX LIP65 acrylic display window (accessory)Recessed operating area for protecting the membrane keypadBattery compartments S/L: 2 or 4 x AA, 1 x 9 VBattery compartments M: 4 x AA, 1 x 9 V, 2 x 9 VDATEC-MOBIL-BOX with tilt foot barSecure wall storage of the caseRobust IP65 handheld enclosures

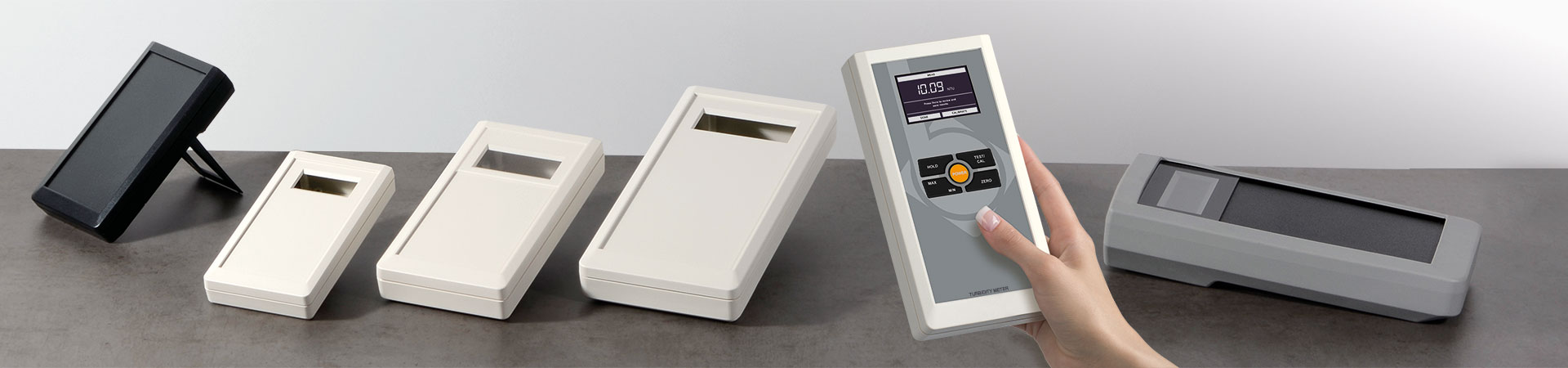

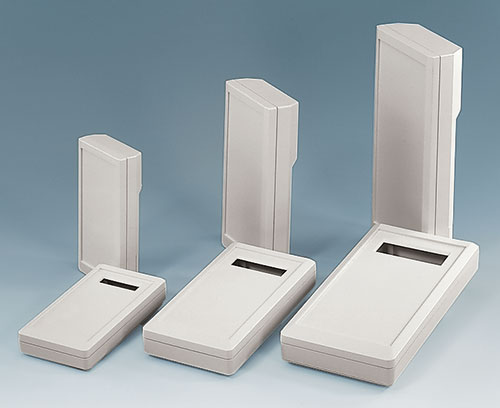

Three sizes: S, M , L

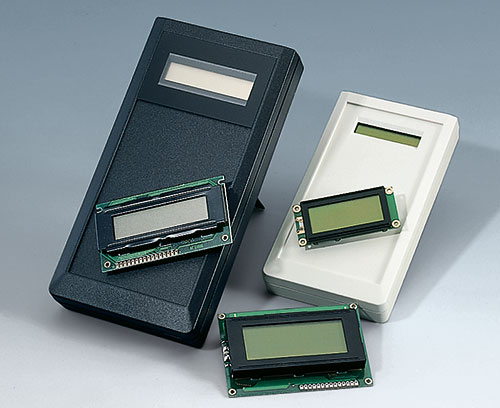

For installing standard LCD modules

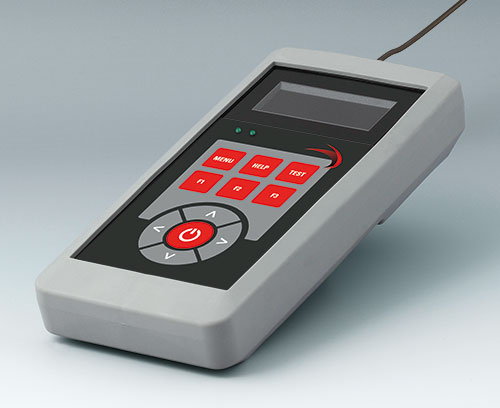

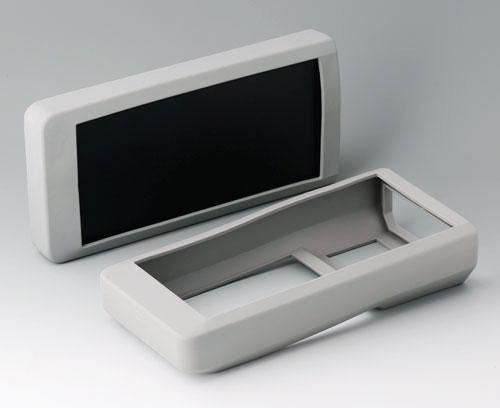

Protector for DATEC-MOBIL-BOX L

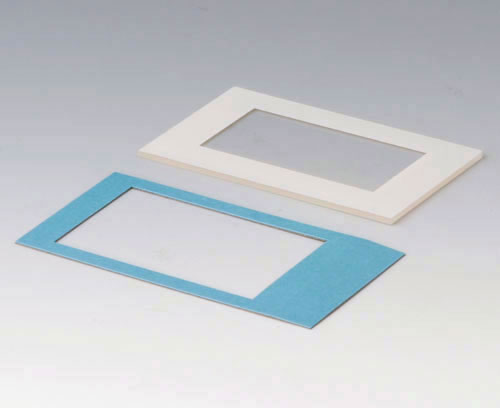

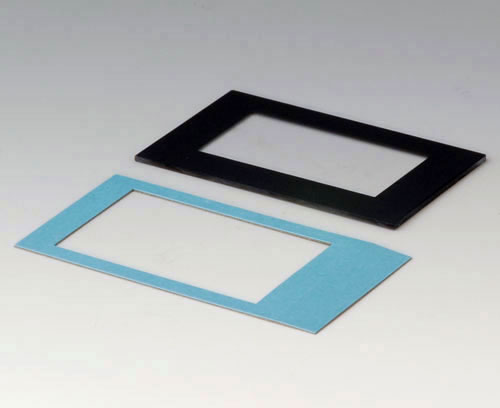

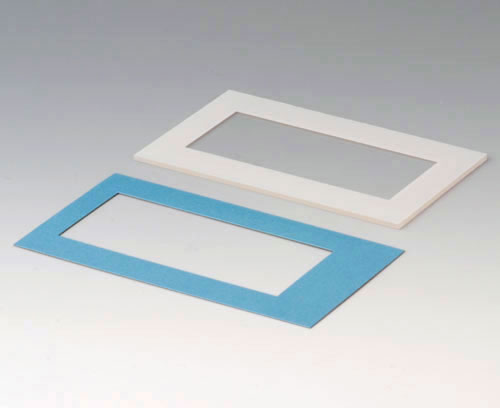

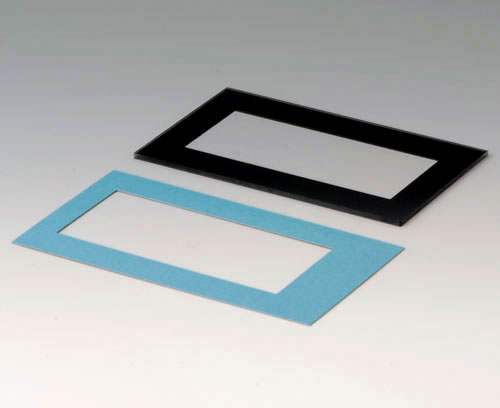

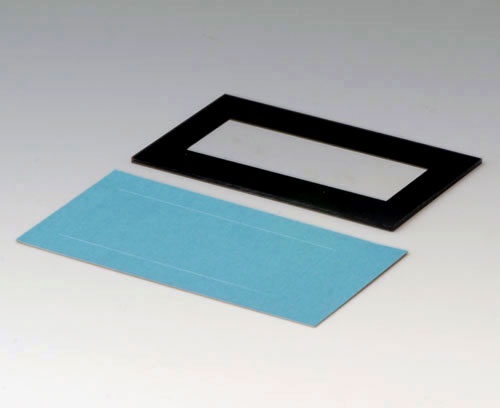

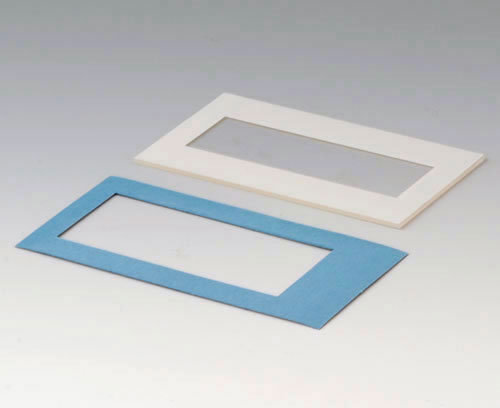

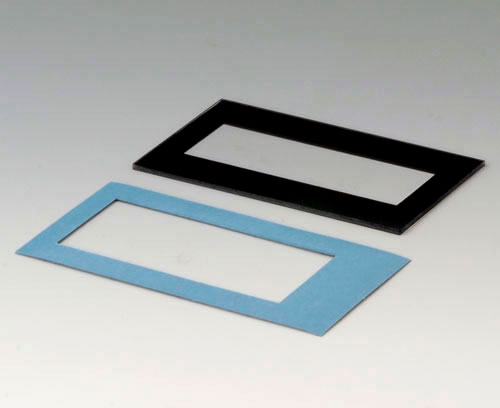

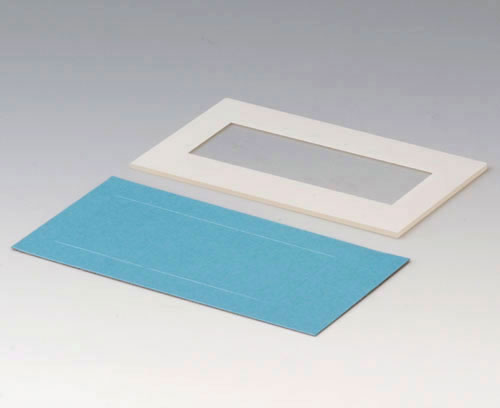

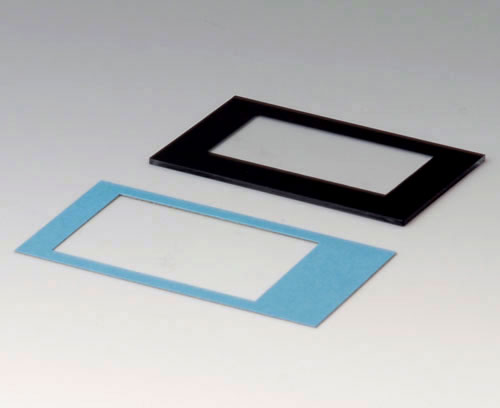

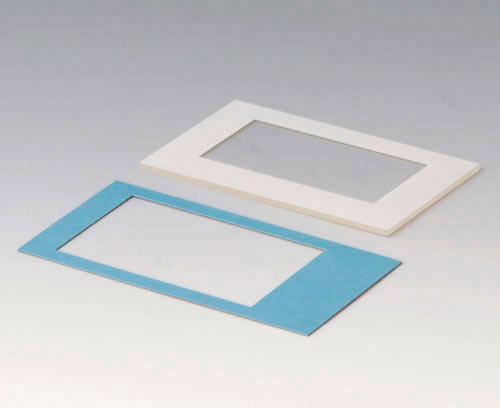

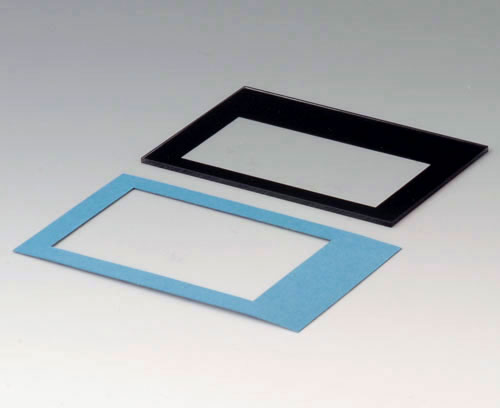

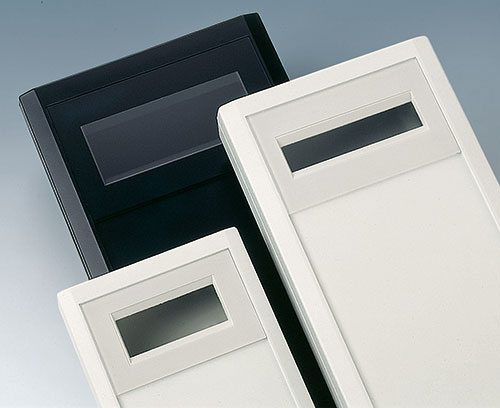

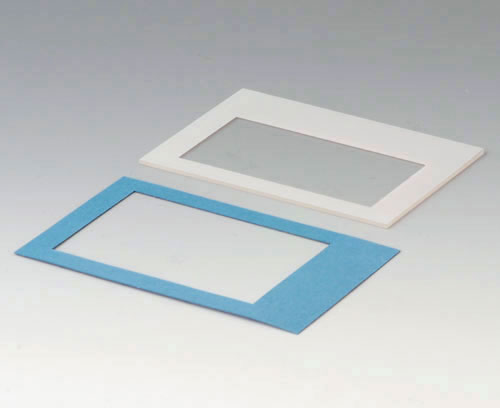

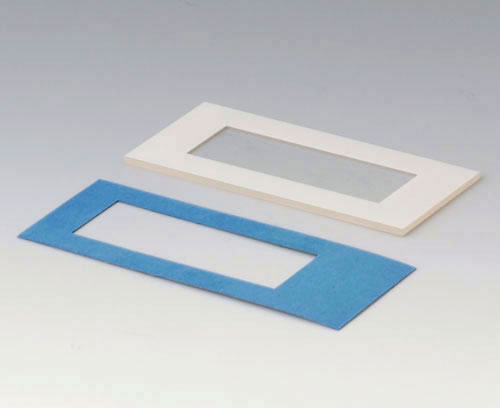

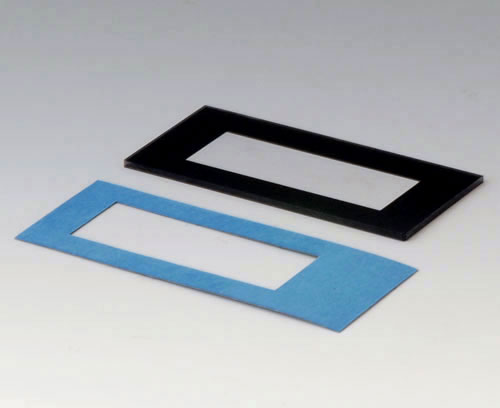

IP65 acrylic display window (accessory)

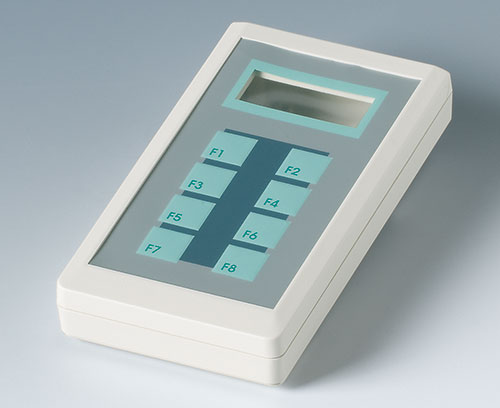

Recessed operating area for protecting the membrane keypad

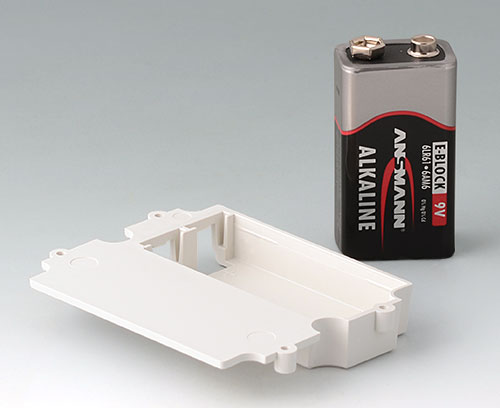

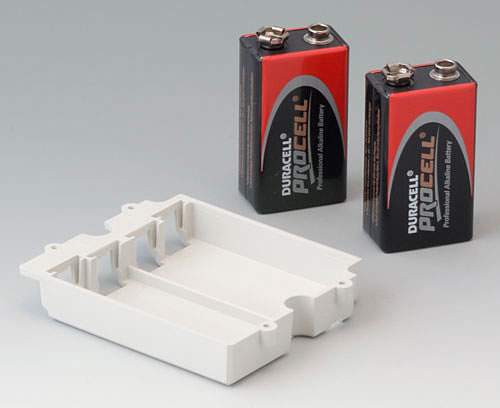

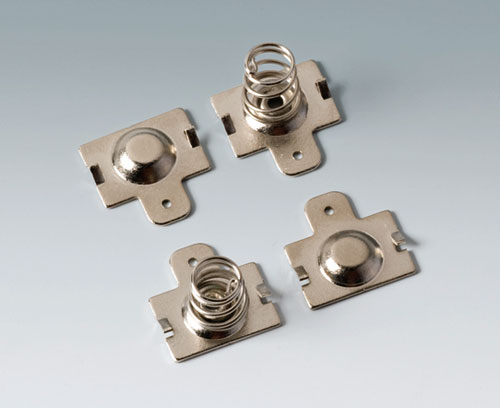

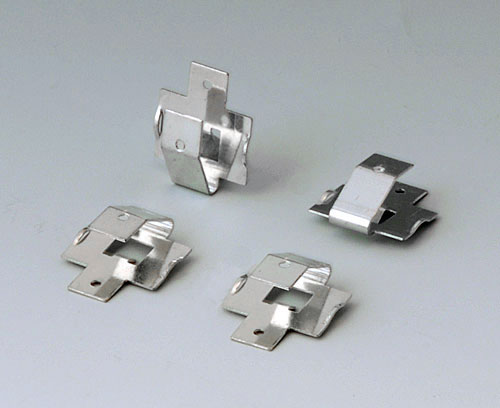

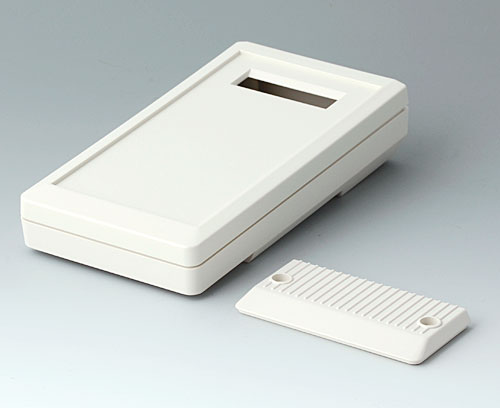

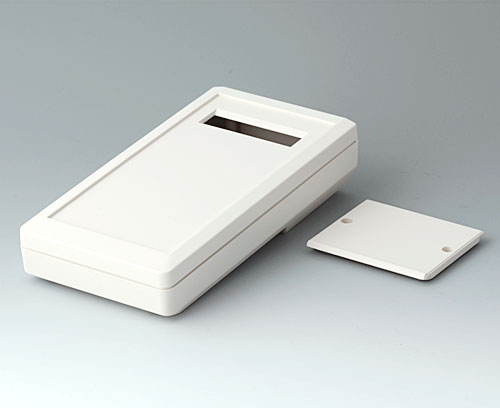

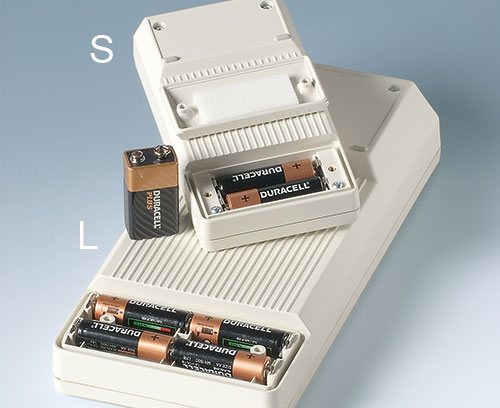

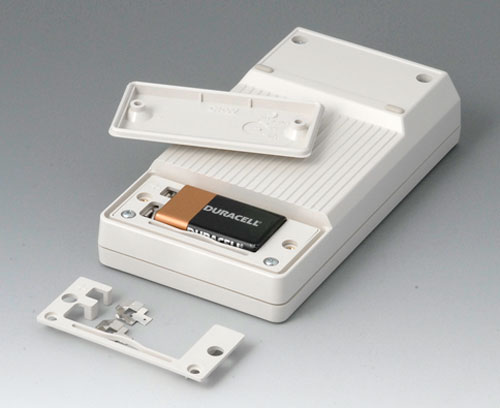

Battery compartments S/L: 2 or 4 x AA, 1 x 9 V

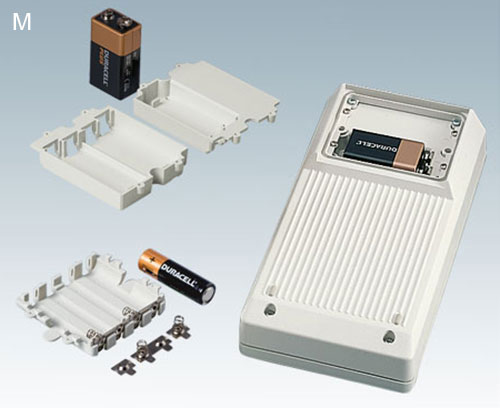

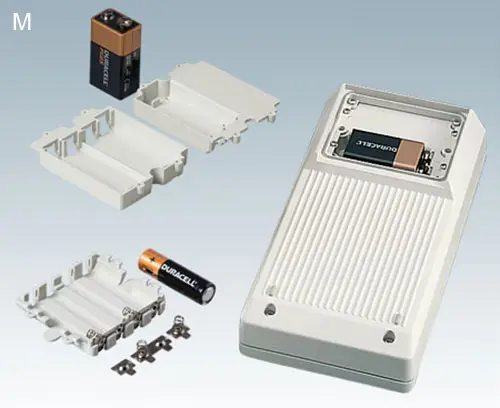

Battery compartments M: 4 x AA, 1 x 9 V, 2 x 9 V

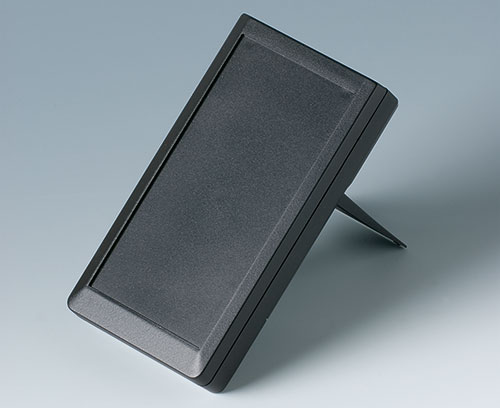

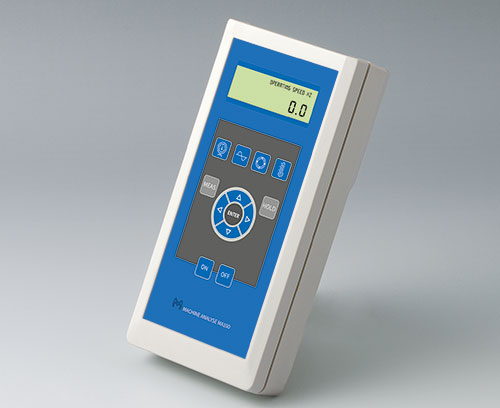

DATEC-MOBIL-BOX with tilt foot bar

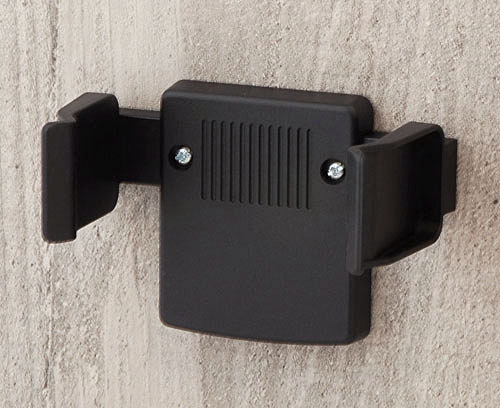

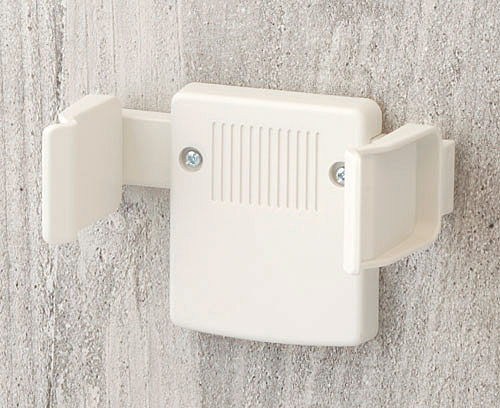

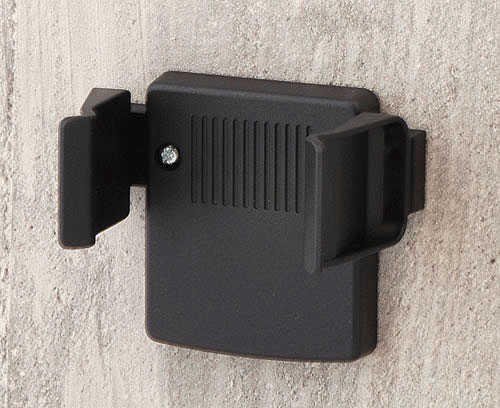

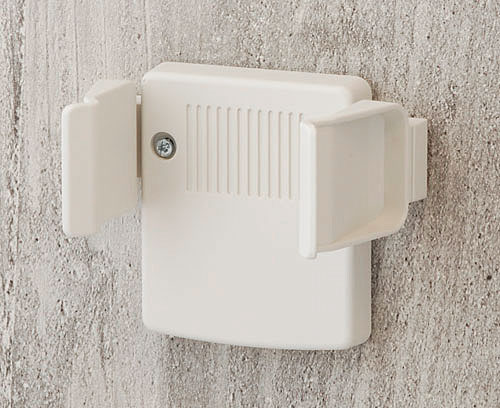

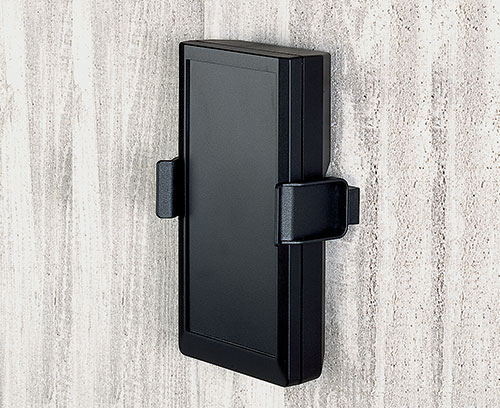

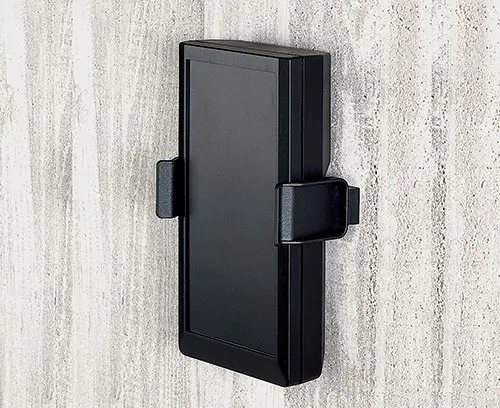

Secure wall storage of the case
Robust IP65 handheld enclosures

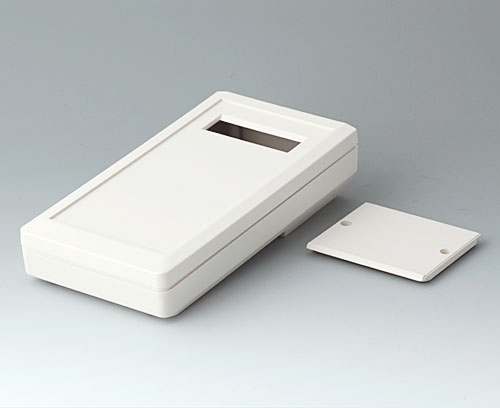

Datec-Mobil-Box

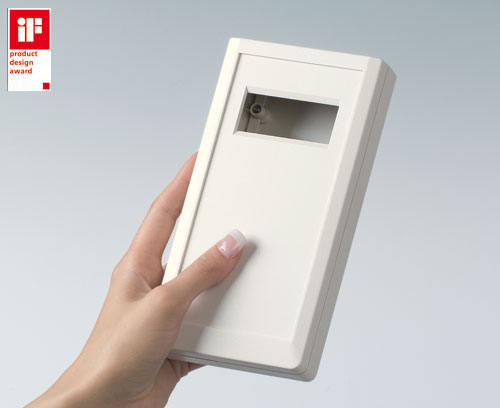

Robust IP65 Handheld Enclosures

These high performance cases have been tailor made to meet the needs of mobile data collection devices used indoor or outdoor.

  • ergonomic profile for comfortable holding and operating

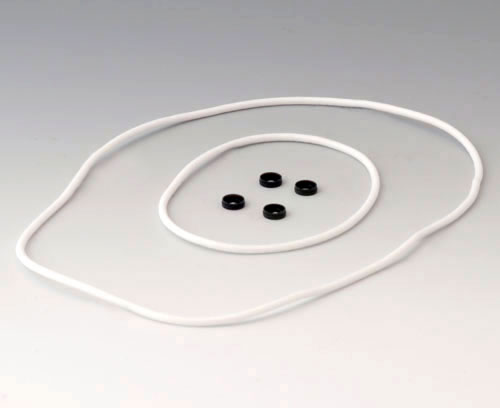

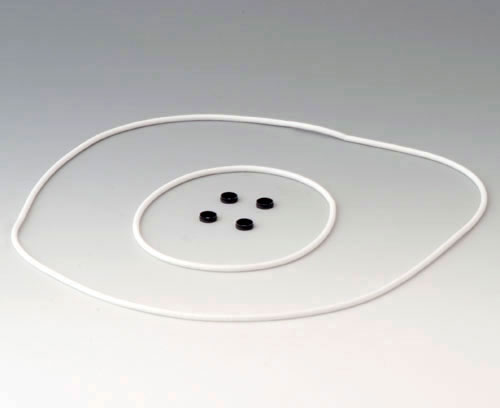

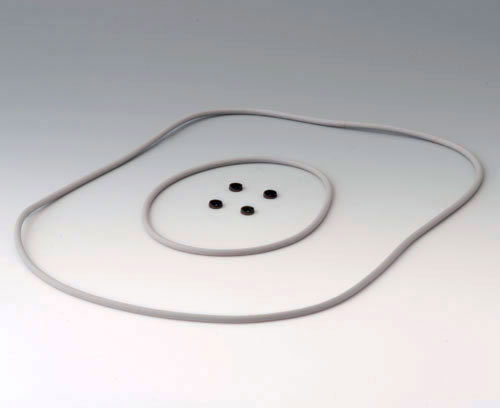

  • robust with a high protection class up to IP65 (sealing kit accessory)
  • designed for installing standard LCD modules; accessory acrylic display windows protect the display area and guarantee a high protection class
  • plain surfaces for interfaces
  • three sizes in two colors
  • sizes S and L with/without a battery compartment

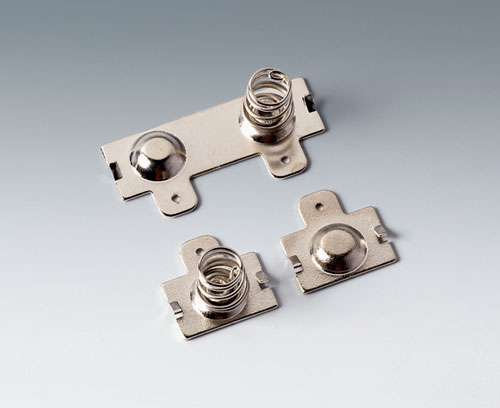

  • size M with battery compartment lid only - battery holders ordered separately
  • recessed operating area for protecting the membrane keypad
  • internal fastening pillars for PCBs
  • tilt foot bar provides ergonomic canting for desktop applications (accessory)
  • wall suspension element for secure storage of the enclosure (accessory)
  • rubber protector absorbs impacts and protects surfaces (acc. size L)

Applications

Mobile data recording and transfer; measuring and control technology; stock and sales logging and digital controlling technology. Particularly suitable for harsh indoor and outdoor environments.


  • Select Versions
  • Catalog Documents
  • View Customizing Options

Select which version/size you want and click "select".

Without display window

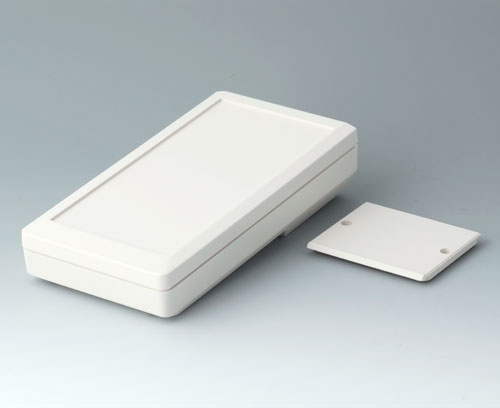

DATEC-MOBIL-BOX with closed top

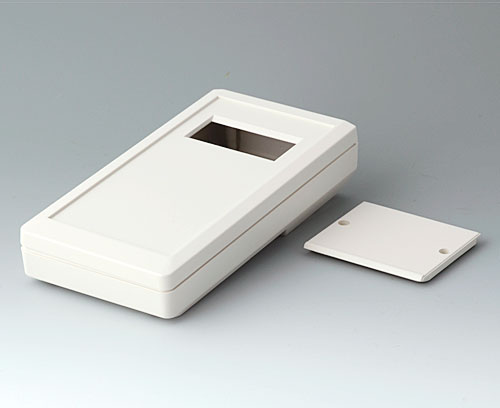

For LCD type 2"-LC-Glass Module
DATEC-MOBIL-BOX LCD 2"
For LCD type 2 x 16 compact
DATEC-MOBIL-BOX LCD 2x16 compact
For LCD type 2 x 16 standard
DATEC-MOBIL-BOX LCD 2x16 standard
For LCD type 4 x 16 standard
DATEC-MOBIL-BOX LCD 4x16
For LCD type 2 x 20 miniature
DATEC-MOBIL-BOX LCD 2x20
For LCD types 4 x 20
DATEC-MOBIL-BOX LCD 4x20
